TCSD-20-01

Name: Samtec TCSD-20-01
Brand: Samtec
SKU: 200-TCSD2001
Price: 8.2 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TCSD2001

Mfr. No:

TCSD-20-01

Mfr.:

Samtec

Description:

Ribbon Cables / IDC Cables IDC Socket Cable Assemblies

More Information

Learn more about Samtec TCSD-20-01

Availability

Stock:: An unexpected error occurred. Please try again later.

11 Can Dispatch in 20 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,20 €	8,20 €
	7,40 €	74,00 €
	6,45 €	167,70 €
	5,04 €	262,08 €
	4,79 €	498,16 €
	4,72 €	2.393,04 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	IDC Socket Cable
Connector End A:	No Connector
Connector End A Pin Count:	40 Position
Connector End B:	No Connector
Pitch:	2 mm
Wire Gauge - AWG:	28 AWG
Series:	TCSD
Packaging:	Tube
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Current Rating:	2.8 A
Description/Function:	High Reliability IDC Socket Strip
Jacket Colour:	Gray
Jacket Material:	Polyvinyl Chloride (PVC)
Product:	IDC Ribbon Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	13
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye IDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8544429090
USHTS:: 8544429090
ECCN:: EAR99

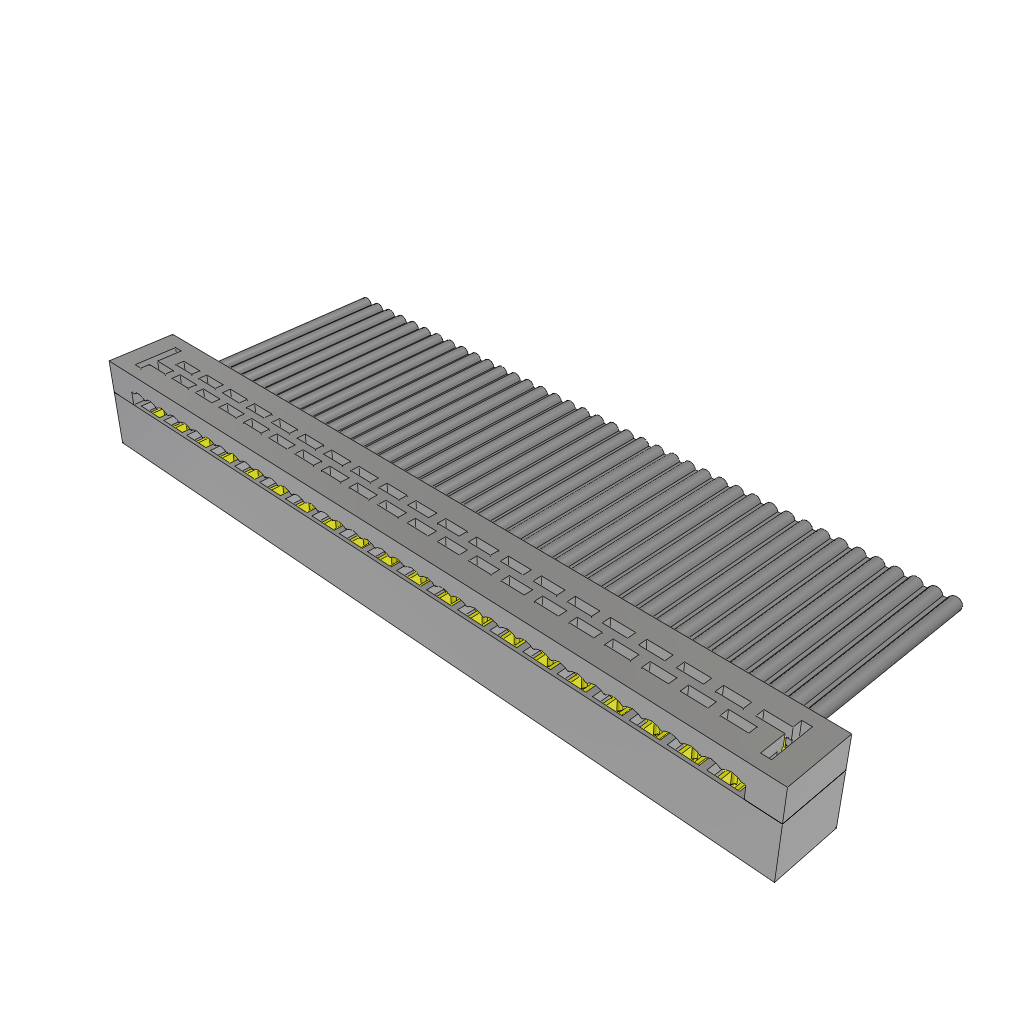

TCSD/TCMD Tiger Eye™ IDC Cable Assemblies

Samtec TCSD/TCMD Tiger Eye™ IDC Cable Assemblies offer a 2.00mm (.0787") pitch connection that operates in a -40°C to +105°C temperature range. The rugged IDC cable assemblies feature high-performance Tiger Eye contacts with socket (TCSD) or plug (TCMD) terminations. The cable assemblies are 28AWG 7/36 stranded wire with options for single-end, double-end, or transfer-end (TCMD only). Strain relief options are also available.
