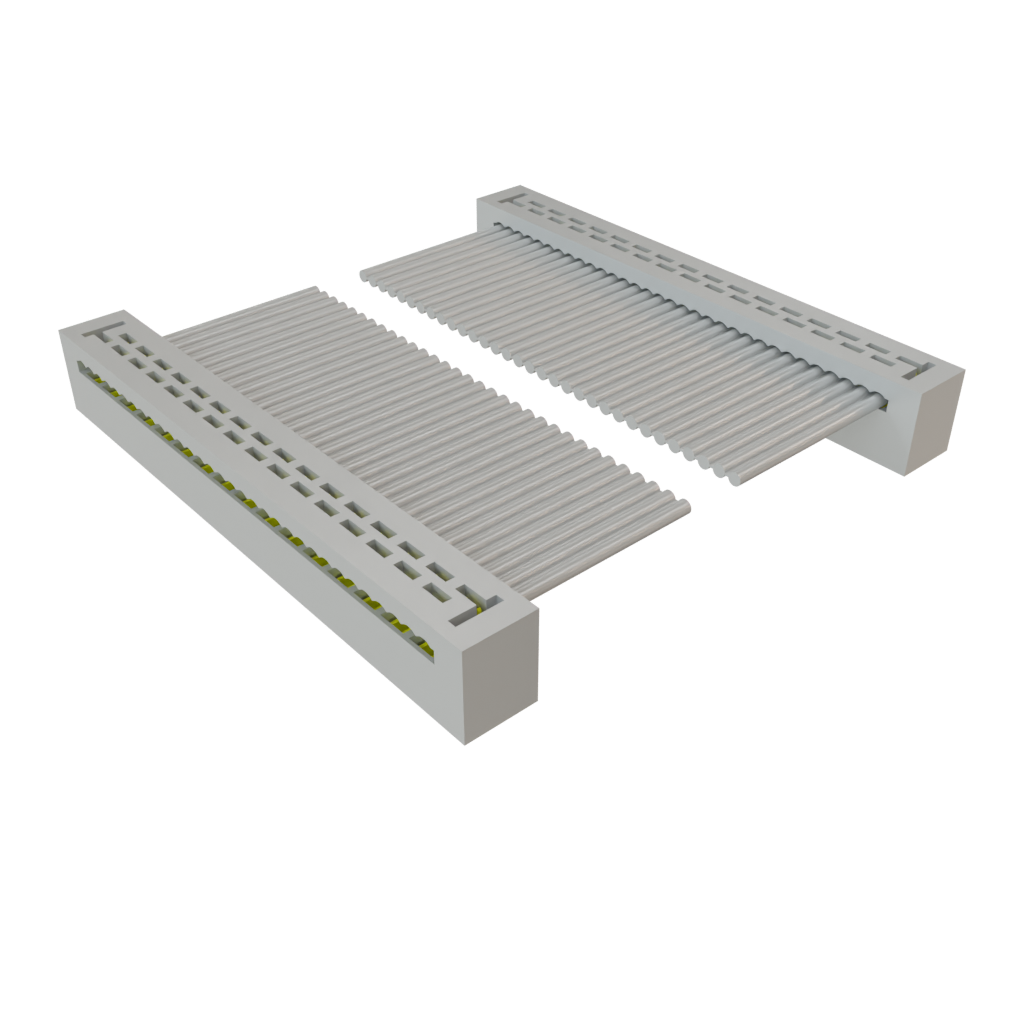

TCSD-16-D-10.00-01-F-N-P01

Name: Samtec TCSD-16-D-10.00-01-F-N-P01
Brand: Samtec
SKU: 200-SD16D100001FNP01
Price: 10.69 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SD16D100001FNP01

Mfr. No:

TCSD-16-D-10.00-01-F-N-P01

Mfr.:

Samtec

Description:

Ribbon Cables / IDC Cables IDC Socket Cable Assemblies

More Information

Learn more about Samtec TCSD-16-D-10.00-01-F-N-P01

In Stock: 16

Stock:: 16 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,69 €	10,69 €
	10,12 €	101,20 €
	9,53 €	238,25 €
	8,89 €	444,50 €
	8,33 €	833,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	IDC Socket Cable
Connector End A:	Socket
Connector End A Pin Count:	32 Position
Connector End B:	Socket
Connector End B Pin Count:	32 Position
Pitch:	2 mm
Gender:	Female / Female
Cable Length:	254 mm
Wire Gauge - AWG:	28 AWG
Series:	TCSD
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Current Rating:	2.8 A
Description/Function:	High Reliability IDC Socket Strip
Jacket Colour:	Gray
Jacket Material:	Polyvinyl Chloride (PVC)
Product:	IDC Ribbon Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye IDC
Unit Weight:	673,280 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8544429090
CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

TCSD/TCMD Tiger Eye™ IDC Cable Assemblies

Samtec TCSD/TCMD Tiger Eye™ IDC Cable Assemblies offer a 2.00mm (.0787") pitch connection that operates in a -40°C to +105°C temperature range. The rugged IDC cable assemblies feature high-performance Tiger Eye contacts with socket (TCSD) or plug (TCMD) terminations. The cable assemblies are 28AWG 7/36 stranded wire with options for single-end, double-end, or transfer-end (TCMD only). Strain relief options are also available.
