T2M-107-01-S-D-SM-WT-K-TR

Name: Samtec T2M-107-01-S-D-SM-WT-K-TR
Brand: Samtec
SKU: 200-2M10701SDSMWTKTR
Price: 5.09 EUR
Availability: OutOfStock

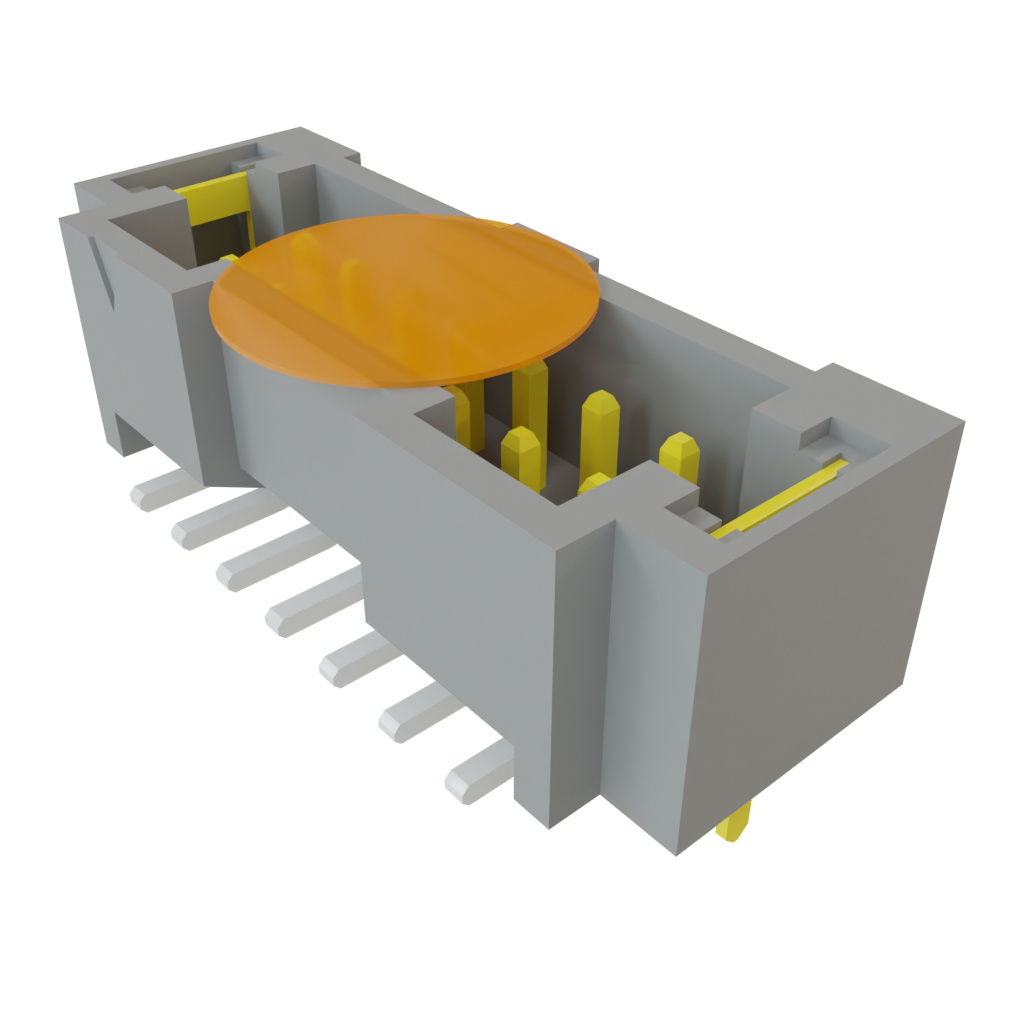

Images are for reference only
See Product Specifications

Mouser No:

200-2M10701SDSMWTKTR

Mfr. No:

T2M-107-01-S-D-SM-WT-K-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings High Reliability Tiger Eye Discrete Wire Header

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec T2M-107-01-S-D-SM-WT-K-TR

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,09 €	5,09 €
	4,60 €	115,00 €
	4,27 €	213,50 €
	4,08 €	408,00 €
Full Reel (Order in multiples of 300)
	4,08 €	1.224,00 €
	3,97 €	3.573,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Series:	T2M
Tradename:	Tiger Eye
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	300
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


PCN

Product Change Notification 2025-9-9 (PDF)

Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8536694040
ECCN:: EAR99

2mm Pitch Tiger Eye™ Discrete Wire Systems

Samtec 2mm Pitch Tiger Eye™ Discrete Wire Systems are available as components or complete assemblies and are shrouded, polarized, and keyed. These discrete wire systems feature metal latch and screw-down options. The 2mm Pitch Tiger Eye™ discrete wire systems feature PVC or Teflon^® cable and are available in assembly tooling.

S2M/T2M 2mm Pitch Rugged Tiger Eye™ Connectors

Samtec S2M and T2M 2mm Pitch Rugged Tiger Eye™ Discrete Wire Connectors provide high reliability with up to 8Gbps performance in a wide range of stack heights. The S2M sockets (female) offer a current rating of 2.6A with two pins powered, while the T2M headers (male) have a 3.8A current rating. The surface mount or through-hole, double-row connectors operate within a -55°C to +125°C temperature range. Right-angle mating headers, optional metal latching, screw downs, weld tabs, and locking clips are available.
