T1M44-M-2830-01-GF

Name: Samtec T1M44-M-2830-01-GF
Brand: Samtec
SKU: 200-T1M-44-M283001GF
Price: 0.25 EUR
Availability: InStock

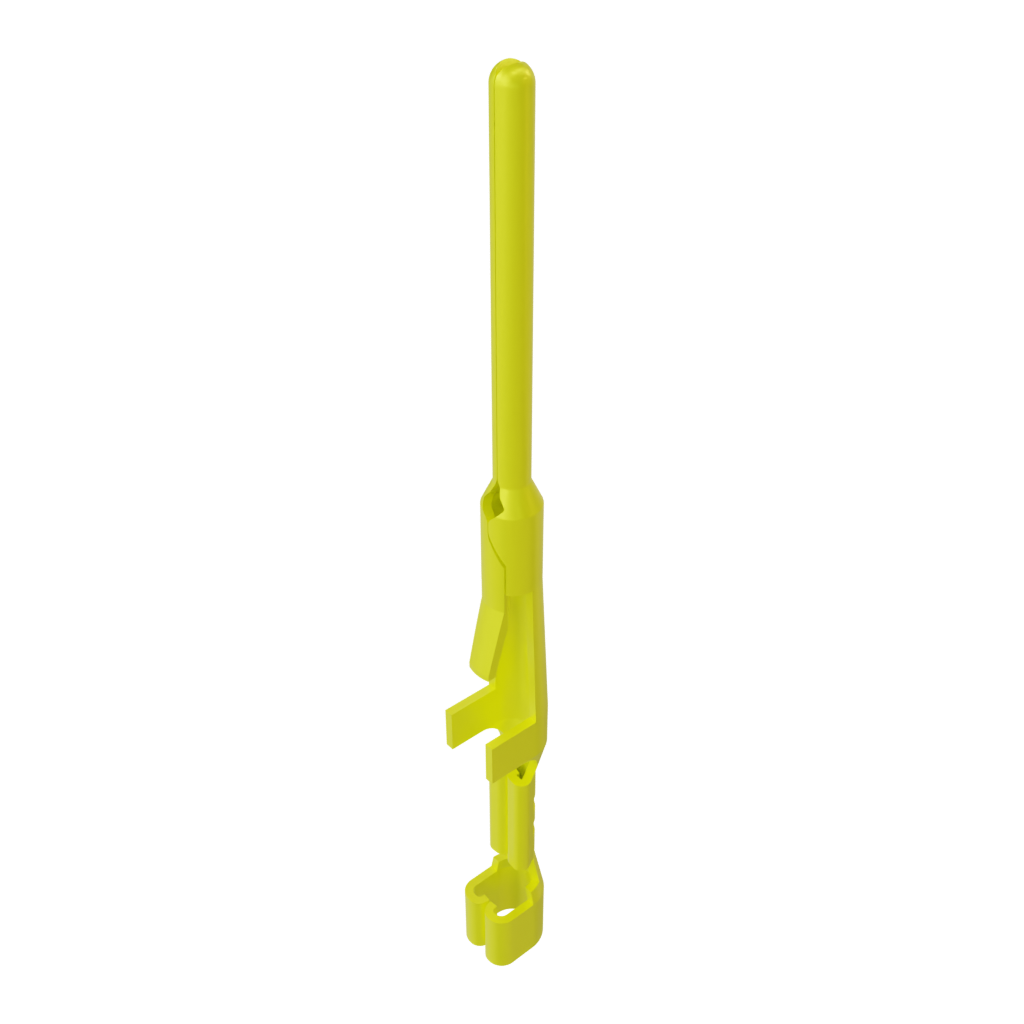

Images are for reference only
See Product Specifications

Mouser No:

200-T1M-44-M283001GF

Mfr. No:

T1M44-M-2830-01-GF

Mfr.:

Samtec

Description:

Headers & Wire Housings .050 Tiger Eye Crimp Terminal, Mini Reel

Lifecycle:

Factory Special Order:

Obtain a quote to verify the current price, lead-time and ordering requirements of the manufacturer.

Datasheet:

T1M44-M-2830-01-GF Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec T1M44-M-2830-01-GF

In Stock: 7.461

Stock:: 7.461 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 7461 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,258 €	0,26 €
	0,219 €	2,19 €
	0,169 €	16,90 €
	0,144 €	72,00 €
	0,12 €	120,00 €
	0,107 €	267,50 €
Full Reel (Order in multiples of 5000)
	0,099 €	495,00 €
10.000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Contacts
Termination Style:	Crimp
Contact Plating:	Gold
Series:	T1M44
Tradename:	Tiger Eye
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Beryllium Copper
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	5000
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

T1M44-M-2830-01-GF Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

CNHTS:: 8536901100
USHTS:: 8536904000
ECCN:: EAR99

TFSDx/TSDF/T1M44 0.050" Discrete Wire Connectors

Samtec TFSD, TFSDT, TSDF, and T1M44-x 0.050" Discrete Wire Connectors and Cable Assemblies feature the high-reliability Tiger Eye™ contact system with shrouded, polarized, and keyed variants. These housings, cable assemblies, and terminals offer a 0.050" (1.27mm) pitch, black LCP insulator, and gold-plated BeCu contacts in a 30AWG to 28AWG range. The 0.050" (1.27mm) Discrete Wire components range from six to 100 positions and mate with the SFM, SFC (-TR requires TFM-WT option), and SFML (-XL option required) sockets.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.
