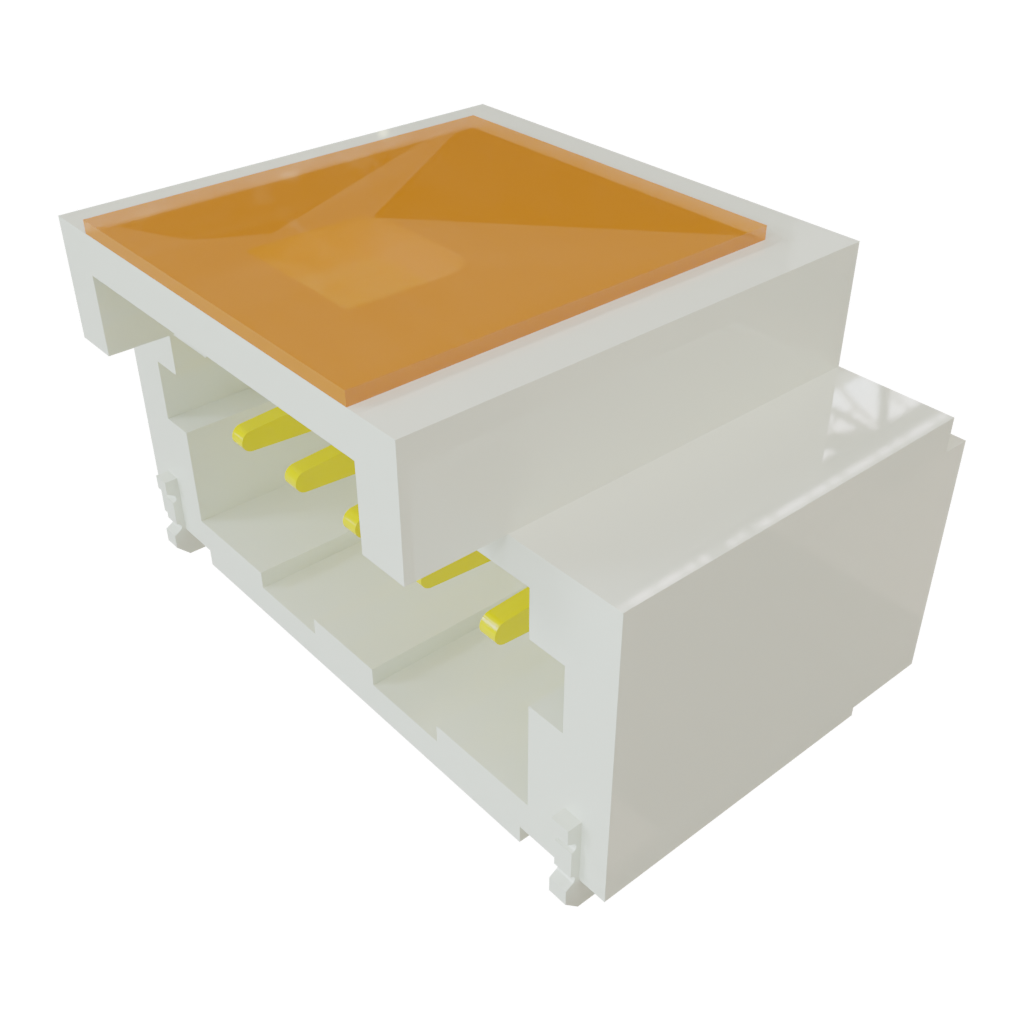

T1M-05-F-SH-L-K

Name: Samtec T1M-05-F-SH-L-K
Brand: Samtec
SKU: 200-T1M05FSHLK
Price: 1.32 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-T1M05FSHLK

Mfr. No:

T1M-05-F-SH-L-K

Mfr.:

Samtec

Description:

Headers & Wire Housings Discrete Wire Terminal Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec T1M-05-F-SH-L-K

In Stock: 3.435

Stock:: 3.435 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 950)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,32 €	1,32 €
	1,25 €	62,50 €
	1,18 €	118,00 €
	1,10 €	550,00 €
Full Reel (Order in multiples of 950)
	1,10 €	1.045,00 €
	1,04 €	1.976,00 €
	0,984 €	4.674,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Discrete Wire Terminal Strip
Number of Positions:	5 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	T1M
Application:	Board-to-Cable
Wire Gauge:	28 AWG
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	3.3 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Material:	Liquid Crystal Polymer (LCP)
Insulation Resistance:	1 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	950
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC/353 VDC
Unit Weight:	386,364 mg
