ST5-20-1.50-L-D-P-TR

Name: Samtec ST5-20-1.50-L-D-P-TR
Brand: Samtec
SKU: 200-ST5201.50LDPTR
Price: 2.72 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ST5201.50LDPTR

Mfr. No:

ST5-20-1.50-L-D-P-TR

Mfr.:

Samtec

Description:

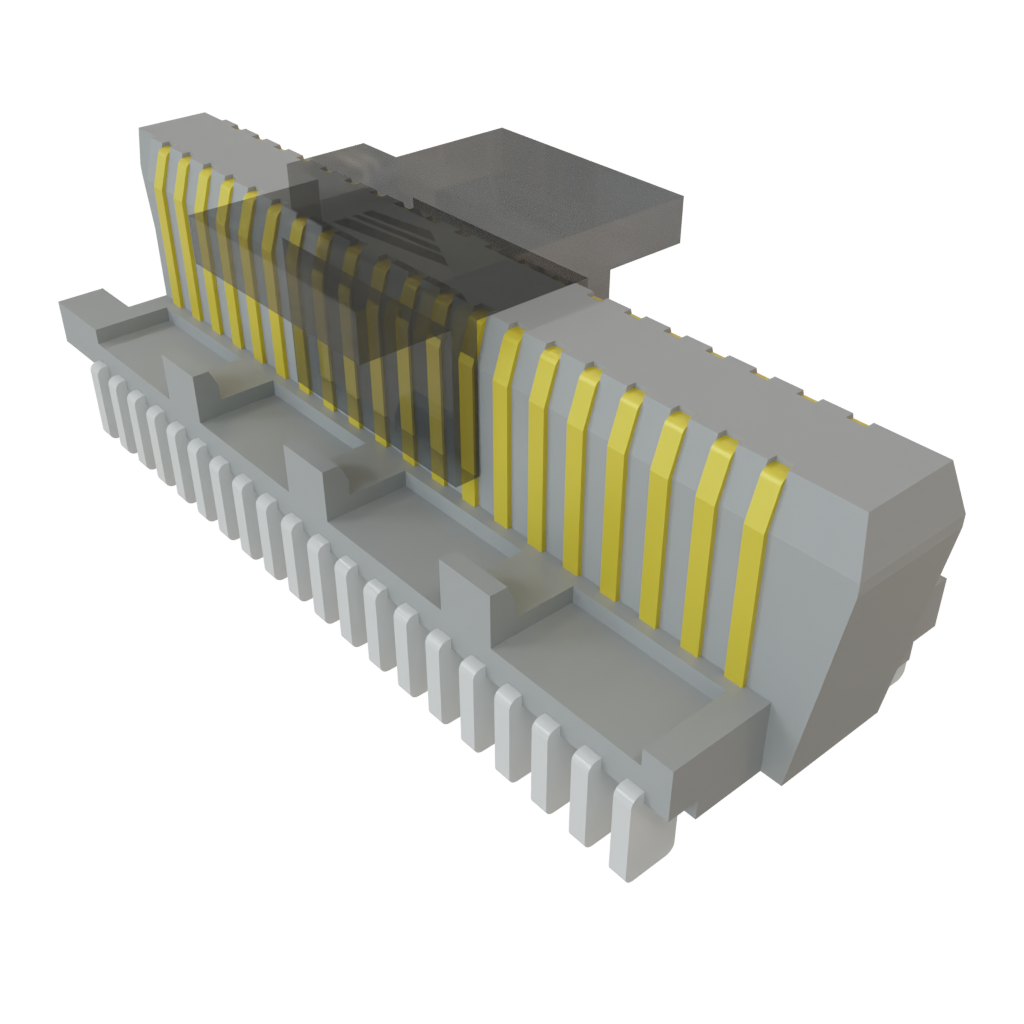

Board to Board & Mezzanine Connectors 0.50 mm Micro Blade & Beam Low-Profile Header

Datasheet:

ST5-20-1.50-L-D-P-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ST5-20-1.50-L-D-P-TR

In Stock: 2.342

Stock:: 2.342 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,72 €	2,72 €
	2,45 €	245,00 €
	2,21 €	552,50 €
	1,93 €	965,00 €
Full Reel (Order in multiples of 1075)
	1,83 €	1.967,25 €
	1,65 €	7.095,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	40 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	4.5 mm, 5 mm
Current Rating:	1.6 A
Voltage Rating:	200 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ST5
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Data Rate:	56 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	1075
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Razor Beam LP
Unit Weight:	62 mg
