SOLC-115-02-S-Q-A-K-TR

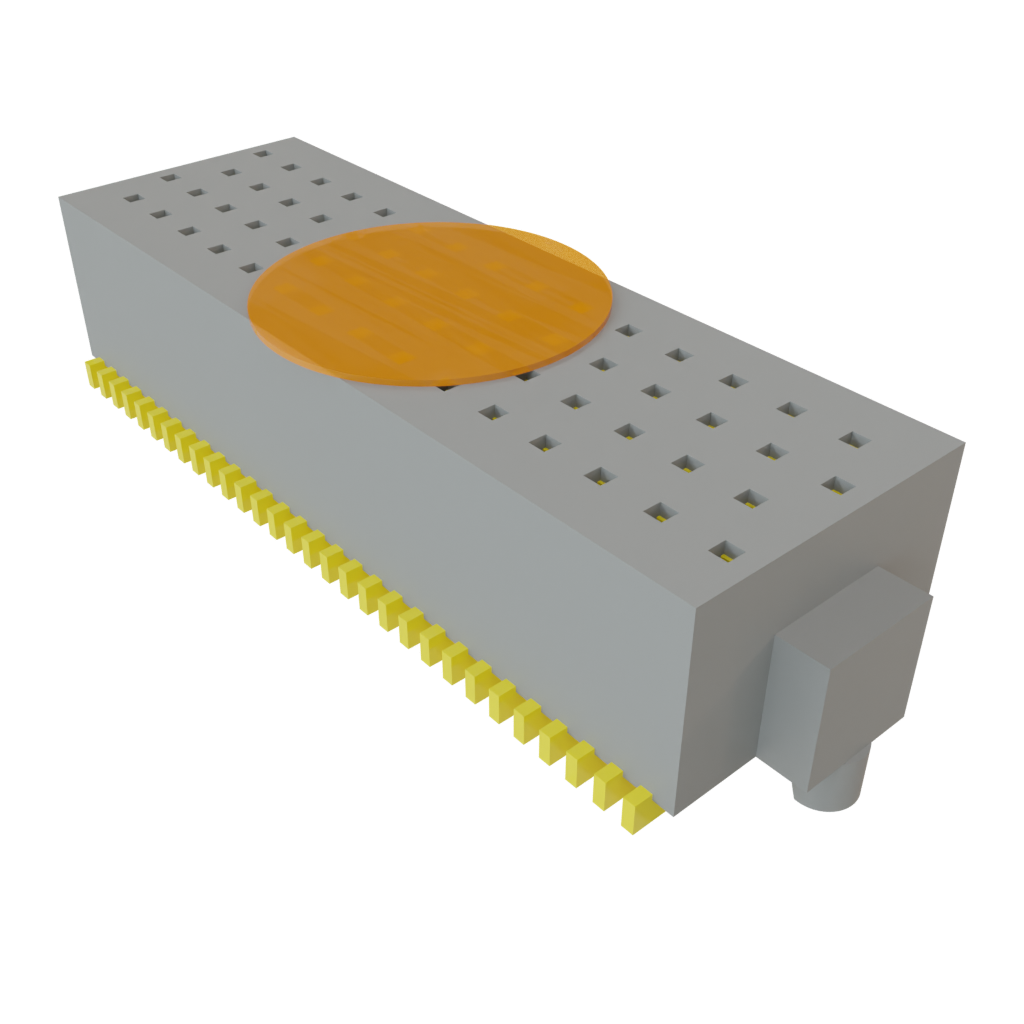

Name: Samtec SOLC-115-02-S-Q-A-K-TR
Brand: Samtec
SKU: 200-SOLC11502SQAKTR
Price: 12.03 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SOLC11502SQAKTR

Mfr. No:

SOLC-115-02-S-Q-A-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors .050 FOURRAY Quad Row Tiger Buy Socket Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 116

Stock:: 116 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 7 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	12,03 €	12,03 €
	11,39 €	113,90 €
	10,96 €	274,00 €
	10,69 €	534,50 €
	8,96 €	896,00 €
Full Reel (Order in multiples of 400)
	8,96 €	3.584,00 €

Alternative Packaging

Mfr. Part No.:

SOLC-115-02-S-Q-A-K

Packaging:

Tube

Availability:

In Stock

Price:

13,38 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	60 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	4 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	2.4 A
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SOLC
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	400
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	FOURRAY, Tiger Buy

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

SOLC-115-02-S-Q-A-K-TR Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: United States
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
