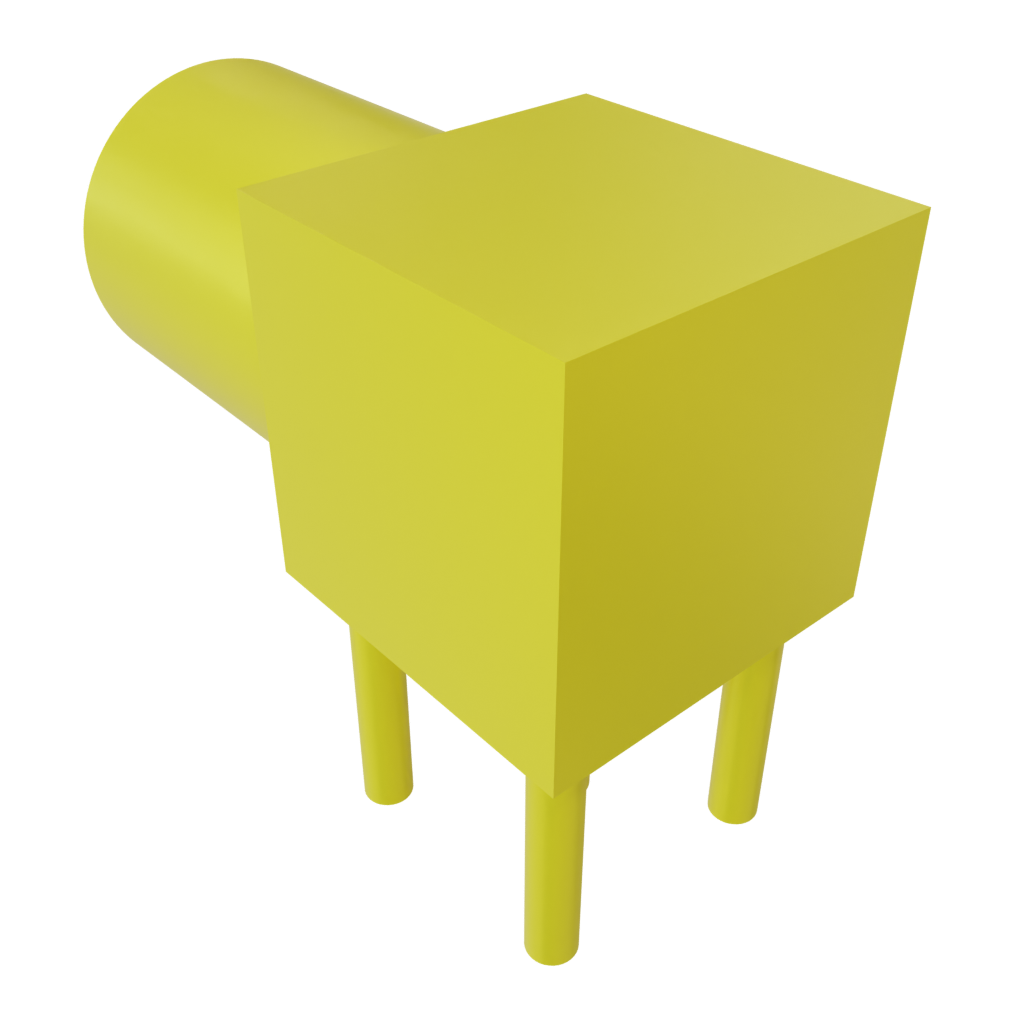

SMPM-PF-P-HF-RA-TH-1

Name: Samtec SMPM-PF-P-HF-RA-TH-1
Brand: Samtec
SKU: 200-SMPMPFPHFRATH1
Price: 13.29 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SMPMPFPHFRATH1

Mfr. No:

SMPM-PF-P-HF-RA-TH-1

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors 50 Ohm SMPM Plugs to 65 GHz

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SMPM-PF-P-HF-RA-TH-1

In Stock: 116

Stock:: 116 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	13,29 €	13,29 €
	12,30 €	123,00 €
	11,31 €	282,75 €
	9,84 €	492,00 €
	9,05 €	905,00 €
	8,94 €	5.364,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
Product:	Connectors
RF Series:	SMPM
Gender:	Plug (Pin)
Impedance:	50 Ohms
Maximum Frequency:	65 GHz
Termination Style:	Solder
Orientation:	Right Angle
Polarity:	Standard
Mounting Style:	PCB Mount
Packaging:	Tray
Body Style:	Right Angle
Brand:	Samtec
Contact Material:	Beryllium Copper
Contact Plating:	Gold
Contact Termination:	Solder
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Coupling Mechanism:	Threaded
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	SMPM
Factory Pack Quantity:	200
Subcategory:	RF Interconnects
