SMA-J-P-H-ST-MT1

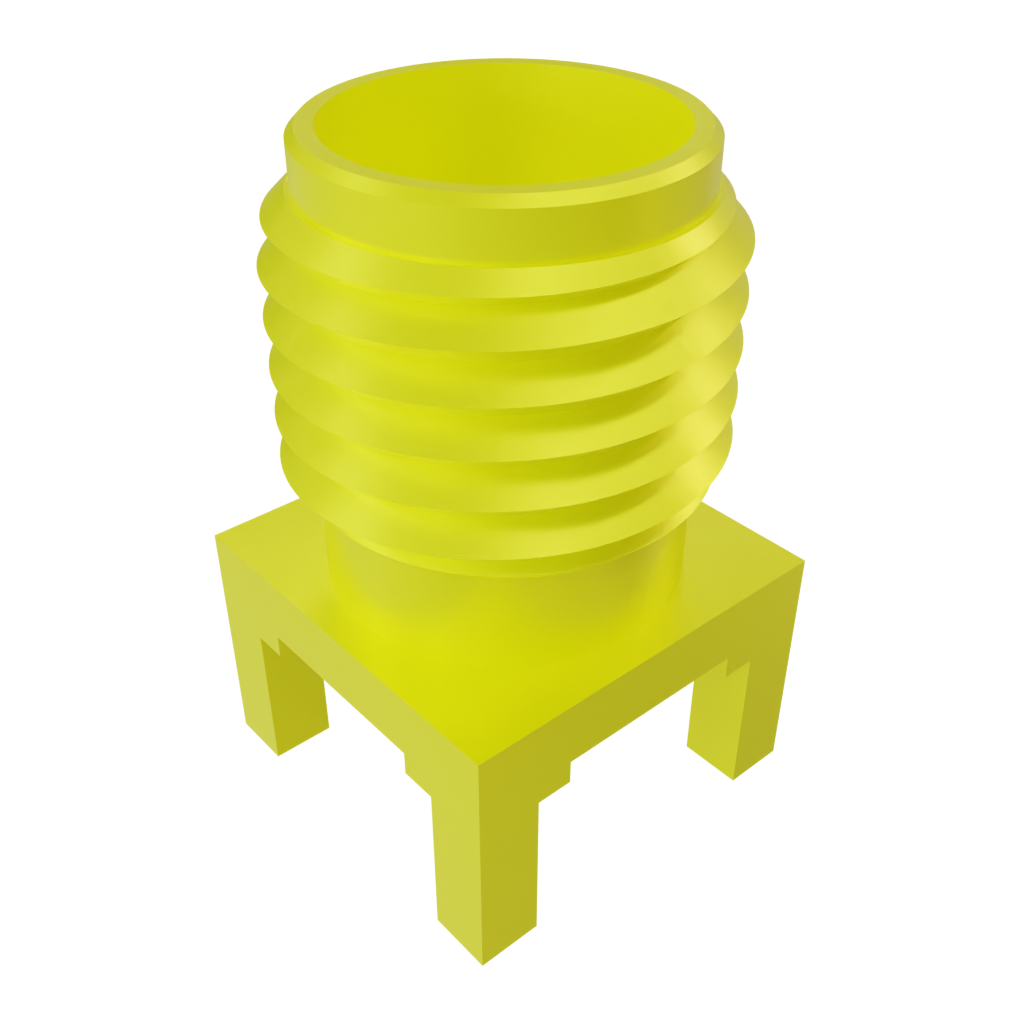

Name: Samtec SMA-J-P-H-ST-MT1
Brand: Samtec
SKU: 200-SMAJPHSTMT1
Price: 5.87 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SMAJPHSTMT1

Mfr. No:

SMA-J-P-H-ST-MT1

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors 50 OHM SMA JACK BOARD CONN

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SMA-J-P-H-ST-MT1

In Stock: 7.159

Stock:: 7.159 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,87 €	5,87 €
	5,64 €	141,00 €
	5,41 €	270,50 €
	5,03 €	503,00 €
	4,64 €	1.160,00 €
	4,26 €	2.130,00 €
	3,71 €	3.710,00 €
	3,22 €	8.050,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	PCB Connectors
RF Series:	SMA
Gender:	Jack (Socket)
Impedance:	50 Ohms
Maximum Frequency:	20 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Standard
Mounting Style:	PCB Mount
Packaging:	Tray
Body Material:	Brass
Brand:	Samtec
Contact Material:	Beryllium Copper
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Coupling Mechanism:	Threaded
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	SMA
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Voltage Rating:	335 V
Unit Weight:	4,382 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

SMA-J-P-H-ST-MT1 Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Low Frequency RF Cables & Interconnects

Samtec offers a wide range of Low-Frequency RF Cables and Interconnects designed for 50Ω and 75Ω applications with a variety of straight and right-angle jacks, plugs, and bulkhead jacks. Vertical, right-angle, or edge-mount orientations and through-hole, surface-mount, or mixed technology PCB terminations are available for these products. The RF board connectors are available for board-to-board or cable-to-board, ganged, and blind-mate applications. Samtec RF cable assemblies are available with low-loss microwave/millimeter wave cables from 0.047 to 0.277, RG-type cables, 12G-SKI Belden cables, high-density ganged, and Samtec-optimized varieties. Additionally, Samtec RF cable connectors with bayonet, threaded, and push-on coupling features are available for a wide variety of industry-standard cables.
