SIBF-08-F-S-AD

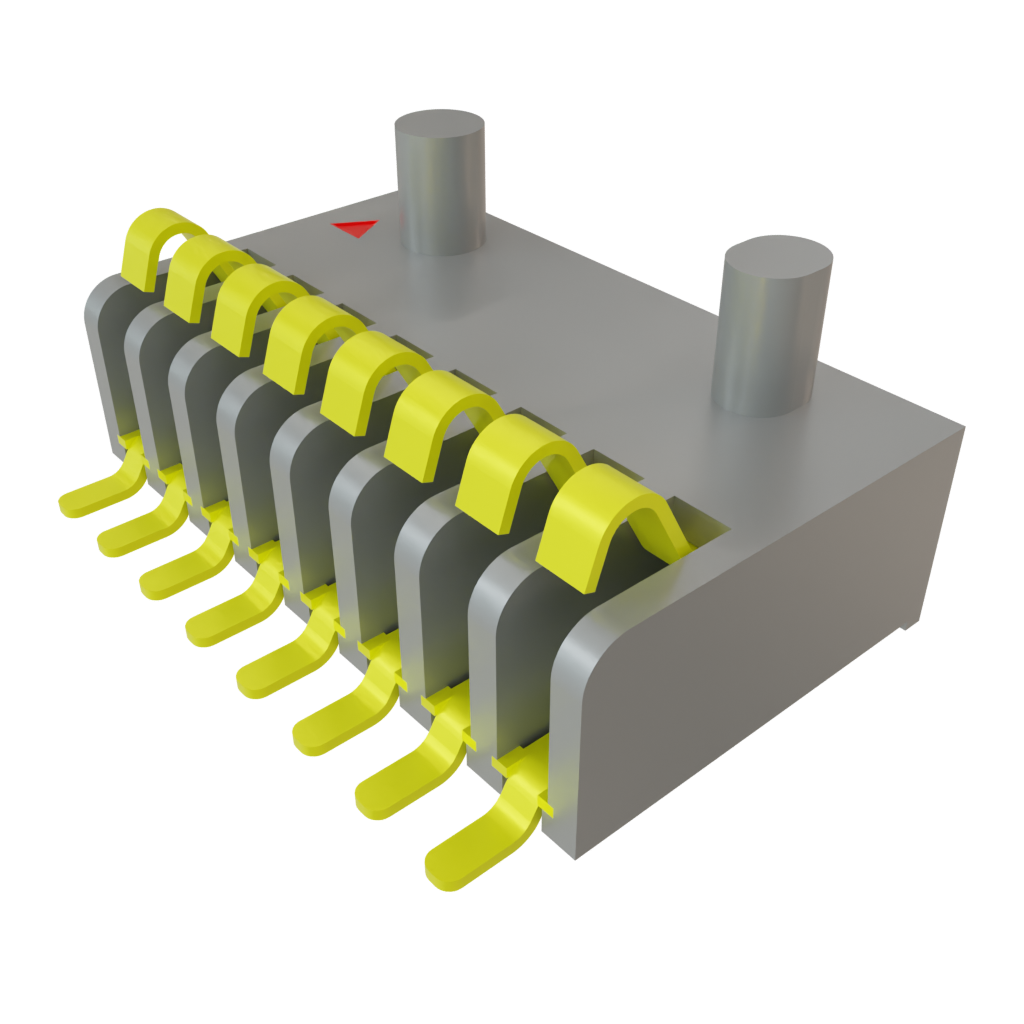

Name: Samtec SIBF-08-F-S-AD
Brand: Samtec
SKU: 200-SIBF08FSAD
Price: 2.03 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SIBF08FSAD

Mfr. No:

SIBF-08-F-S-AD

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors .050 One-Piece Interface

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 464

Stock:: 464 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 39 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,03 €	2,03 €
	1,66 €	91,30 €
	1,41 €	155,10 €
	1,26 €	693,00 €
	1,21 €	1.264,45 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	8 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	1 Row
Termination Style:	Solder
Mounting Angle:	Right Angle
Current Rating:	2.5 A
Voltage Rating:	155 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SIBF
Packaging:	Tube
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Mounting Style:	Mounting Peg
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	55
Subcategory:	Board to Board & Mezzanine Connectors
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
