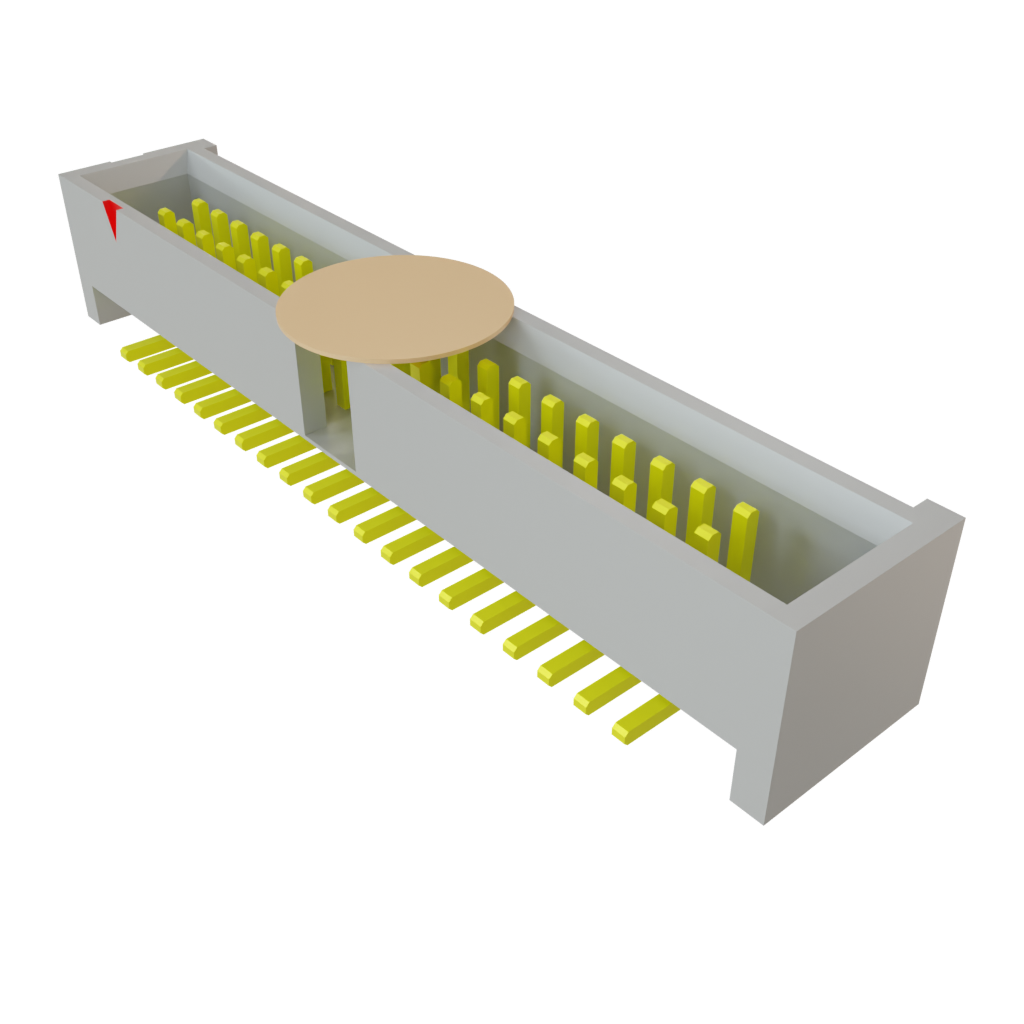

SHF-120-01-L-D-SM-K-TR

Name: Samtec SHF-120-01-L-D-SM-K-TR
Brand: Samtec
SKU: 200-SHF12001LDSMKTR
Price: 4.01 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SHF12001LDSMKTR

Mfr. No:

SHF-120-01-L-D-SM-K-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings Shrouded Terminal Strip

Datasheet:

SHF-120-01-L-D-SM-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SHF-120-01-L-D-SM-K-TR

In Stock: 564

Stock:: 564

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 273

Expected 3/9/2026
Factory Lead Time:: 9

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,01 €	4,01 €
	3,59 €	89,75 €
	3,20 €	160,00 €
	2,88 €	288,00 €
Full Reel (Order in multiples of 375)
	2,88 €	1.080,00 €
	2,67 €	2.002,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	40 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Mounting Style:	SMD/SMT
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	3.05 mm (0.12 in)
Series:	SHF
Application:	Board-to-Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	375
Subcategory:	Headers & Wire Housings
Unit Weight:	614 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SHF-120-01-L-D-SM-K-TR Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

ECF/EHF/ESHF/SHF Shrouded & Ejector IDC Headers
