SHF-113-01-L-D-SM

Name: Samtec SHF-113-01-L-D-SM
Brand: Samtec
SKU: 200-SHF11301LDSM
Price: 3.22 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SHF11301LDSM

Mfr. No:

SHF-113-01-L-D-SM

Mfr.:

Samtec

Description:

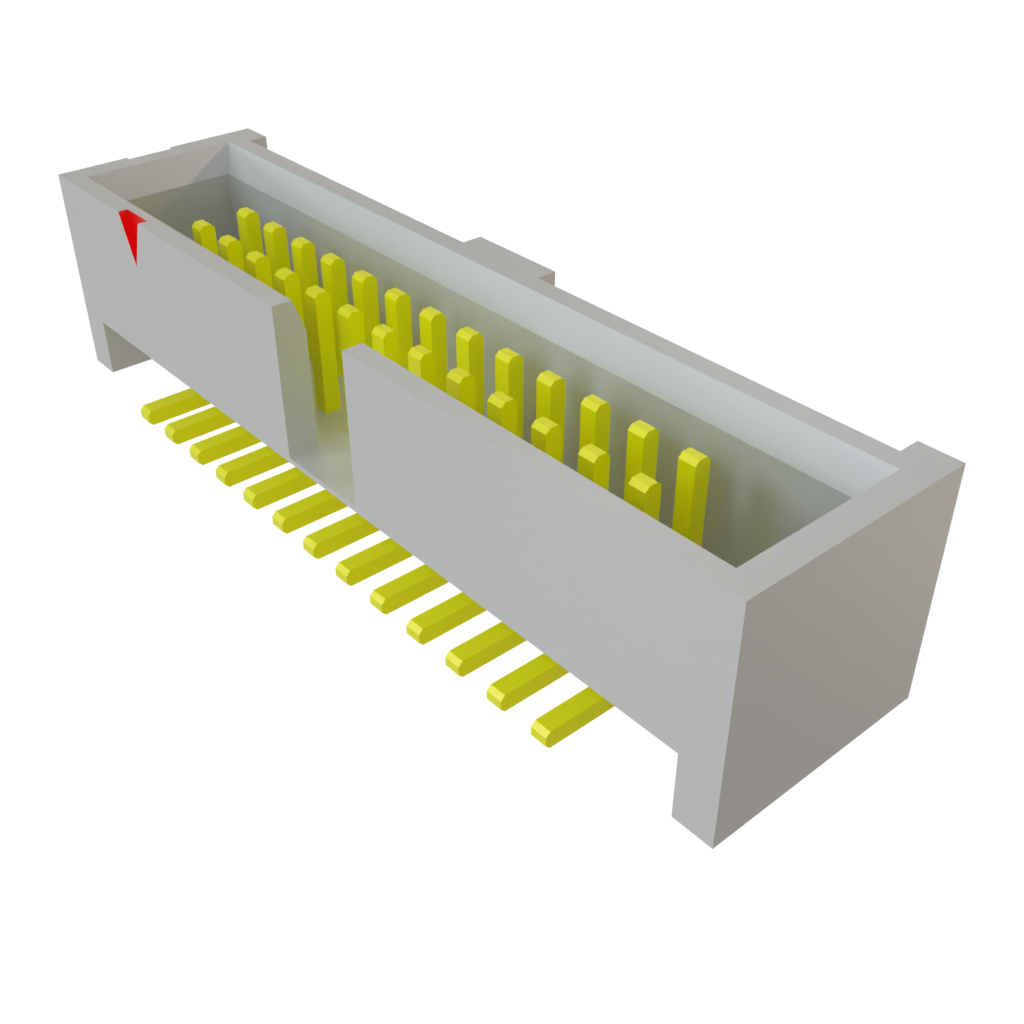

Headers & Wire Housings Shrouded Terminal Strip
