SFSST-05-28-G-05.00-S

Name: Samtec SFSST-05-28-G-05.00-S
Brand: Samtec
SKU: 200-SFSST0528G0500S
Price: 2.85 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SFSST0528G0500S

Mfr. No:

SFSST-05-28-G-05.00-S

Mfr.:

Samtec

Description:

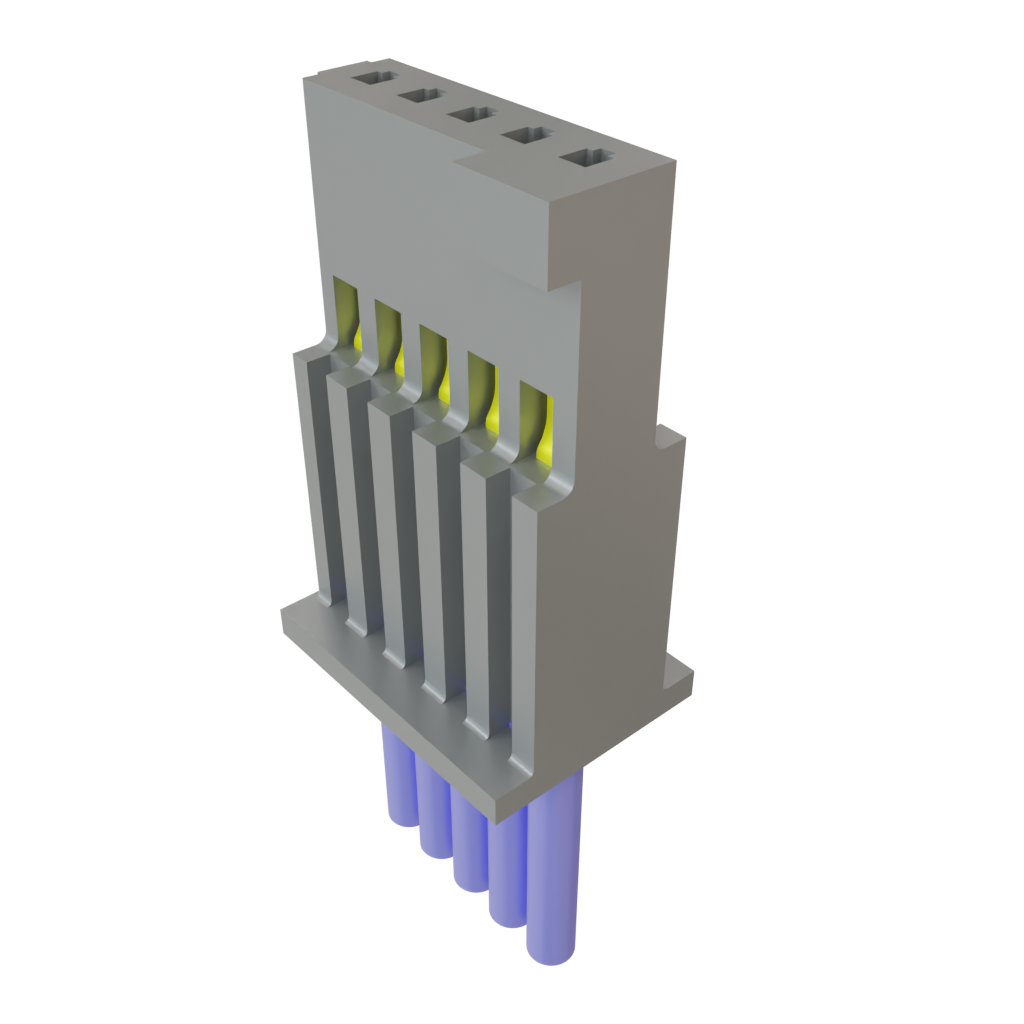

Rectangular Cable Assemblies .050 Tiger Eye Single Row Discrete Wire Cable Assembly

Datasheet:

SFSST-05-28-G-05.00-S Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SFSST-05-28-G-05.00-S

In Stock: 53

Stock:: 53 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,85 €	2,85 €
	2,32 €	116,00 €
	1,97 €	197,00 €
	1,95 €	975,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Rectangular Cable Assemblies
RoHS:
Series:	SFSST
Product:	Discrete Wire Cable Assemblies
Connector End A:	Socket
Connector End A Pin Count:	5 Position
Connector End B:	No Connector
Gender:	Female
Cable Length:	127 mm
Wire Gauge - AWG:	28 AWG
Current Rating:	2.9 A
Jacket Colour:	Blue
Packaging:	Bulk
Brand:	Samtec
Jacket Material:	Polytetrafluoroethylene (PTFE)
Pitch:	1.27 mm
Product Type:	Rectangular Cable Assemblies
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye
Voltage Rating:	235 VAC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SFSST-05-28-G-05.00-S Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

TARIC:: 8544429090
CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.
