SFMH-115-02-S-D-LC

Name: Samtec SFMH-115-02-S-D-LC
Brand: Samtec
SKU: 200-SFMH11502SDLC
Price: 9.66 EUR
Availability: OutOfStock

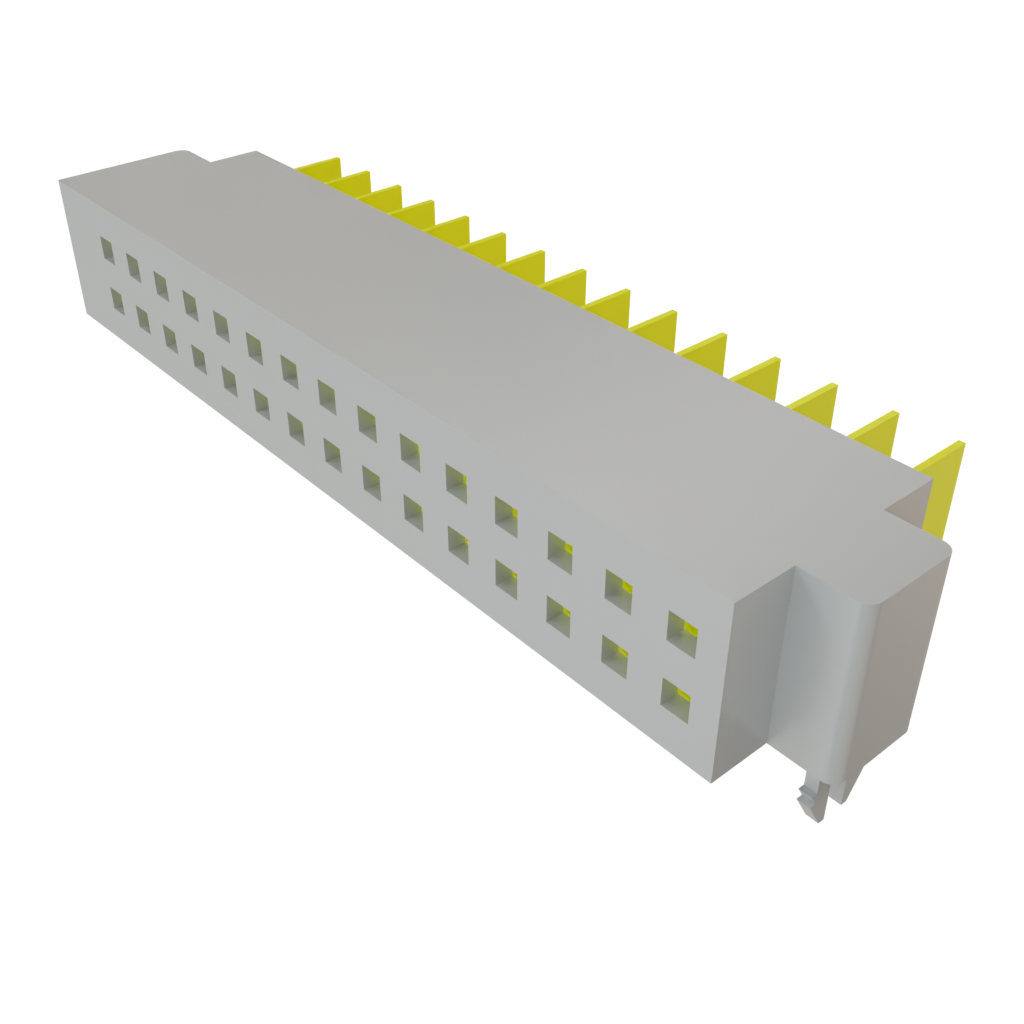

Images are for reference only
See Product Specifications

Mouser No:

200-SFMH11502SDLC

Mfr. No:

SFMH-115-02-S-D-LC

Mfr.:

Samtec

Description:

Headers & Wire Housings .050 Tiger Eye High-Reliability Socket Strip

Datasheet:

SFMH-115-02-S-D-LC Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SFMH-115-02-S-D-LC

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,66 €	9,66 €
	8,93 €	89,30 €
	8,44 €	219,44 €
	8,14 €	423,28 €
	7,89 €	820,56 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Socket
Number of Positions:	30 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Termination Style:	Solder
Mounting Angle:	Right Angle
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	SFMH
Tradename:	Tiger Eye
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Current Rating:	2.6 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	26
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8536694040
ECCN:: EAR99

Tiger Eye™ SFM .050" (1.27mm) Pitch Sockets

Samtec Tiger Eye™ SFM .050" (1.27mm) Pitch Socket Strips are designed for micro rugged, high-reliability, high-cycle applications. The Tiger Eye contains multi-finger, heat-treated, Beryllium Copper (BeCu) contacts designed for rugged environments. These Samtec connectors are available in vertical, right-angle, and horizontal orientations and through-hole or surface-mount termination. Optional alignment pin, locking clip, dual screw-down, or weld tab is available for design flexibility.
