SEAM-20-03.5-S-10-2-A-K-TR

Name: Samtec SEAM-20-03.5-S-10-2-A-K-TR
Brand: Samtec
SKU: 200-SEAM2003.5S102AK
Price: 19.23 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAM2003.5S102AK

Mfr. No:

SEAM-20-03.5-S-10-2-A-K-TR

Mfr.:

Samtec

Description:

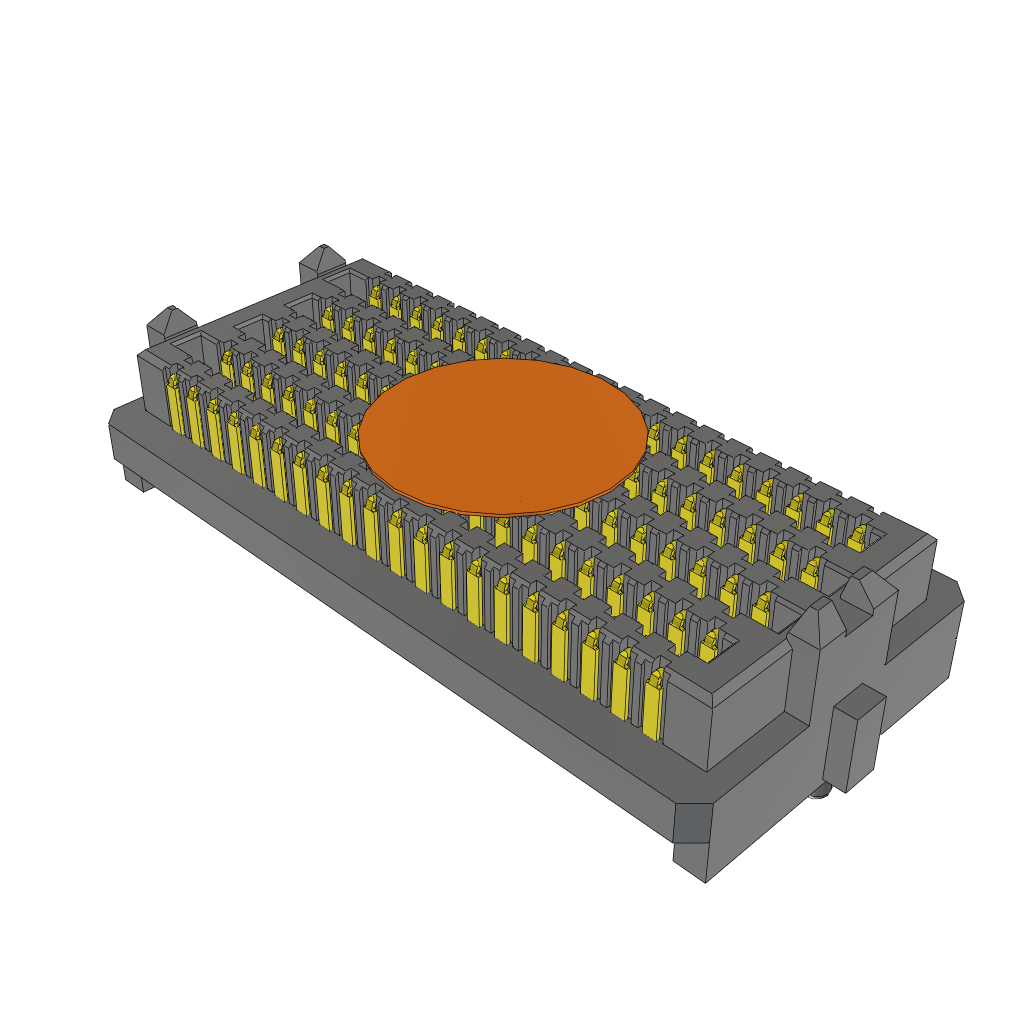

Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Terminal

Datasheet:

SEAM-20-03.5-S-10-2-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAM-20-03.5-S-10-2-A-K-TR

In Stock: 441

Stock:: 441 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	19,23 €	19,23 €
	18,39 €	183,90 €
	16,82 €	420,50 €
	16,55 €	827,50 €
Full Reel (Order in multiples of 200)
	16,55 €	3.310,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	200 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	10 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	8.5 mm, 9.5 mm, 10 mm, 11 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAM
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Data Rate:	56 Gbps
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	200
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
Unit Weight:	5,408 g
