SEAF8-50-05.0-S-10-3

Name: Samtec SEAF8-50-05.0-S-10-3
Brand: Samtec
SKU: 200-SEAF8-50-05S103
Price: 36.44 EUR
Availability: InStock

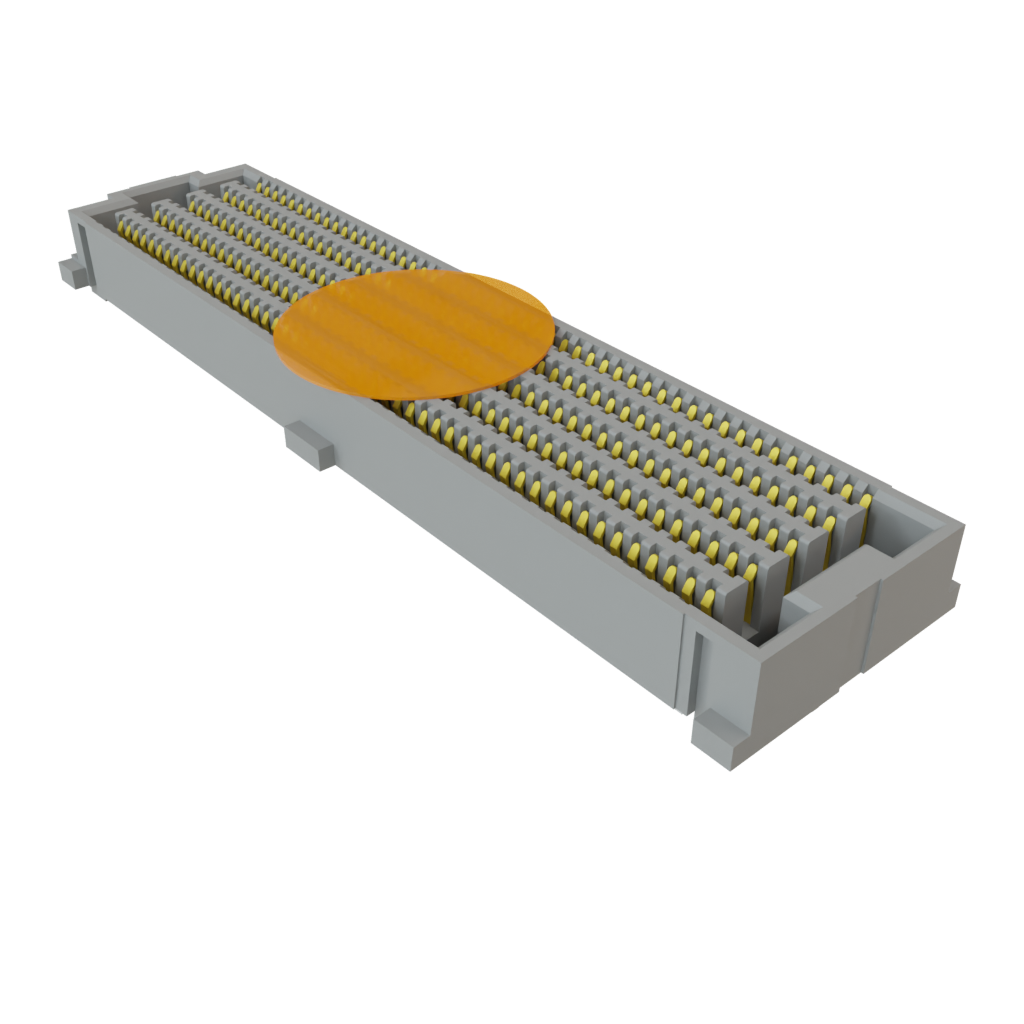

Images are for reference only
See Product Specifications

Mouser No:

200-SEAF8-50-05S103

Mfr. No:

SEAF8-50-05.0-S-10-3

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80 mm SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Datasheet:

SEAF8-50-05.0-S-10-3 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 411

Stock:: 411 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	36,44 €	36,44 €
	34,49 €	344,90 €
	33,20 €	830,00 €
	32,40 €	1.620,00 €
	26,43 €	2.643,00 €
Full Reel (Order in multiples of 250)
	24,47 €	6.117,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	500 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	10 Row
Termination Style:	Solder
Mounting Angle:	Straight
Current Rating:	1.3 A
Maximum Data Rate:	56 Gbps
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF8
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Data Rate:	56 Gbps
Mounting Style:	PCB Mount
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	250
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Conflict Material Declaration (Spreadsheet)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
