SEAF8-30-1-S-08-2-RA

Name: Samtec SEAF8-30-1-S-08-2-RA
Brand: Samtec
SKU: 200-SEAF8301S082RA
Price: 29.2 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAF8301S082RA

Mfr. No:

SEAF8-30-1-S-08-2-RA

Mfr.:

Samtec

Description:

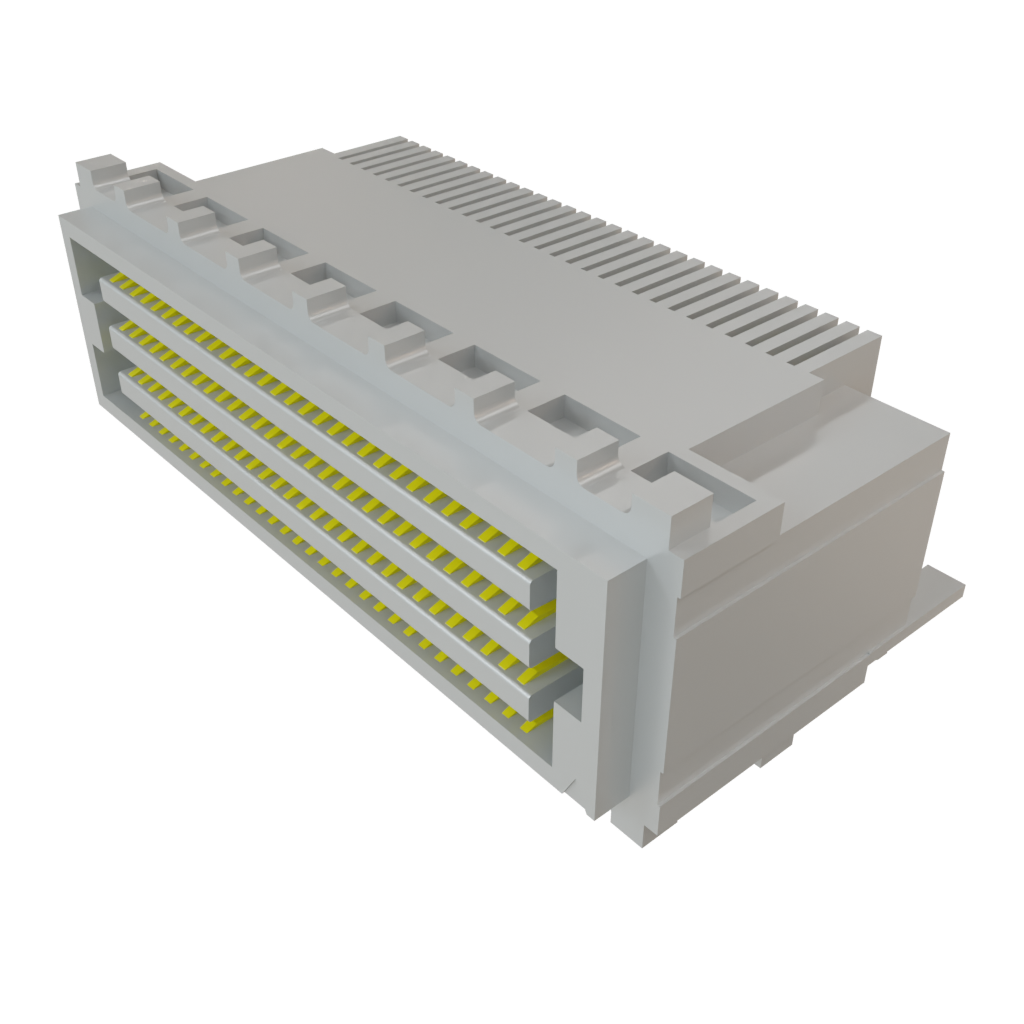

Board to Board & Mezzanine Connectors 0.80 mm SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Datasheet:

SEAF8-30-1-S-08-2-RA Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAF8-30-1-S-08-2-RA

In Stock: 85

Stock:: 85 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	29,20 €	29,20 €
	27,64 €	276,40 €
	26,60 €	665,00 €
	25,95 €	1.297,50 €
Full Reel (Order in multiples of 100)
	21,17 €	2.117,00 €
	20,64 €	10.320,00 €

Alternative Packaging

Mfr. Part No.:

SEAF8-30-1-S-08-2-RA-GP

Packaging:

Reel, Cut Tape

Availability:

In Stock

Price:

29,20 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	240 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	8 Row
Termination Style:	Solder
Mounting Angle:	Right Angle
Current Rating:	1.3 A
Voltage Rating:	220 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF8-RA
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	100
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

SEARAY™ SEAF High-Density Socket Connectors

Samtec SEARAY™ SEAF High-Density Socket Connectors feature 7mm to 40mm stack heights and up to 56Gbps performance rating. The SEAF series includes the SEAF-RA right-angle socket, the SEAF8 0.8mm open-pin-field array, the SEAFP press-fit socket, and the SEAFP-RA right-angle press-fit socket. SEAF socket connectors offer a solder on each tail for ease of processing and up to 560 single-ended I/Os or 140 differential pairs. Samtec SEARAY SEAF High-Density Socket Connectors are ideal for parallel, perpendicular, and coplanar applications.
