SEAF-50-06.0-S-08-2-A-K-TR

Name: Samtec SEAF-50-06.0-S-08-2-A-K-TR
Brand: Samtec
SKU: 200-SEAF5006.0S082AK
Price: 27.02 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAF5006.0S082AK

Mfr. No:

SEAF-50-06.0-S-08-2-A-K-TR

Mfr.:

Samtec

Description:

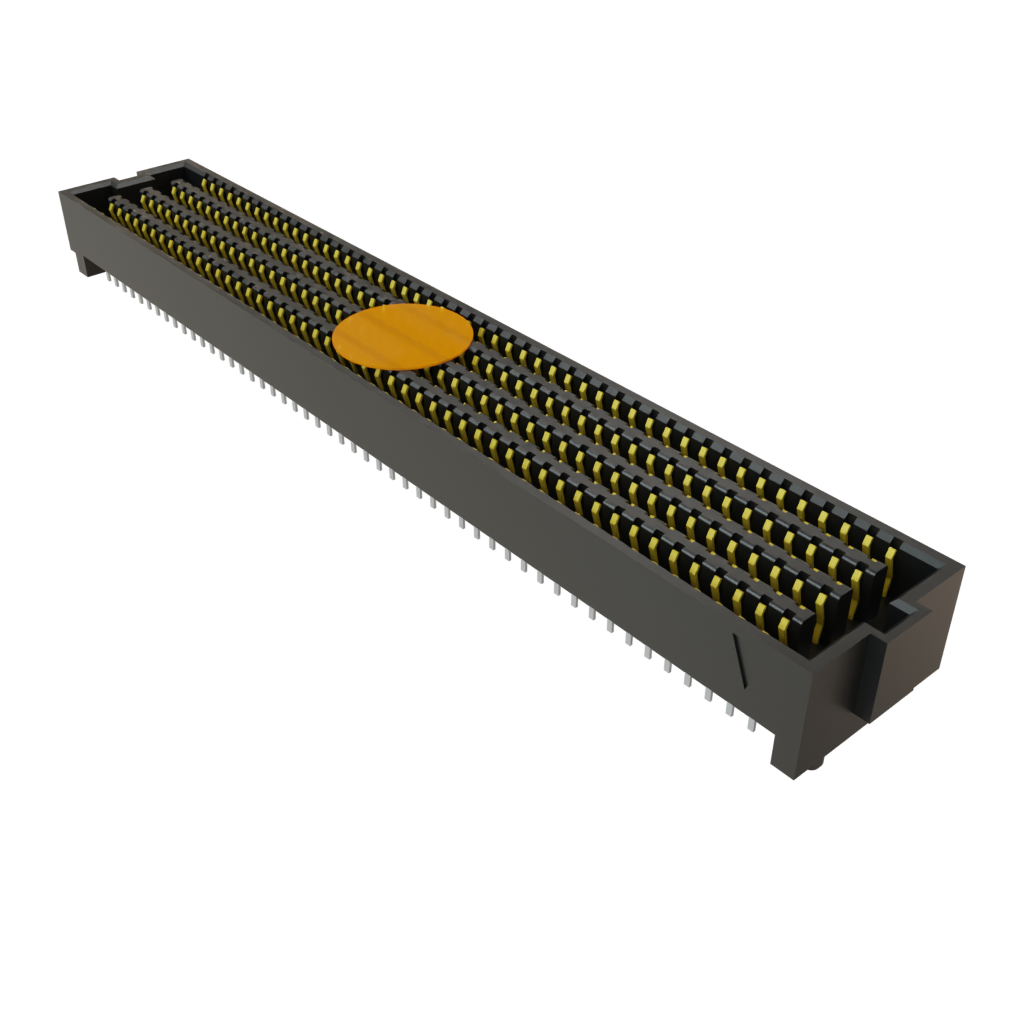

Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Datasheet:

SEAF-50-06.0-S-08-2-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAF-50-06.0-S-08-2-A-K-TR

In Stock: 260

Stock:: 260 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	27,02 €	27,02 €
	25,84 €	258,40 €
	24,87 €	621,75 €
	23,51 €	1.175,50 €
	20,41 €	2.041,00 €
Full Reel (Order in multiples of 225)
	19,79 €	4.452,75 €
	18,79 €	8.455,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	400 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	8 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	8 mm, 9 mm, 9.5 mm, 12.5 mm, 13 mm, 15 mm, 17 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Data Rate:	56 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	225
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
