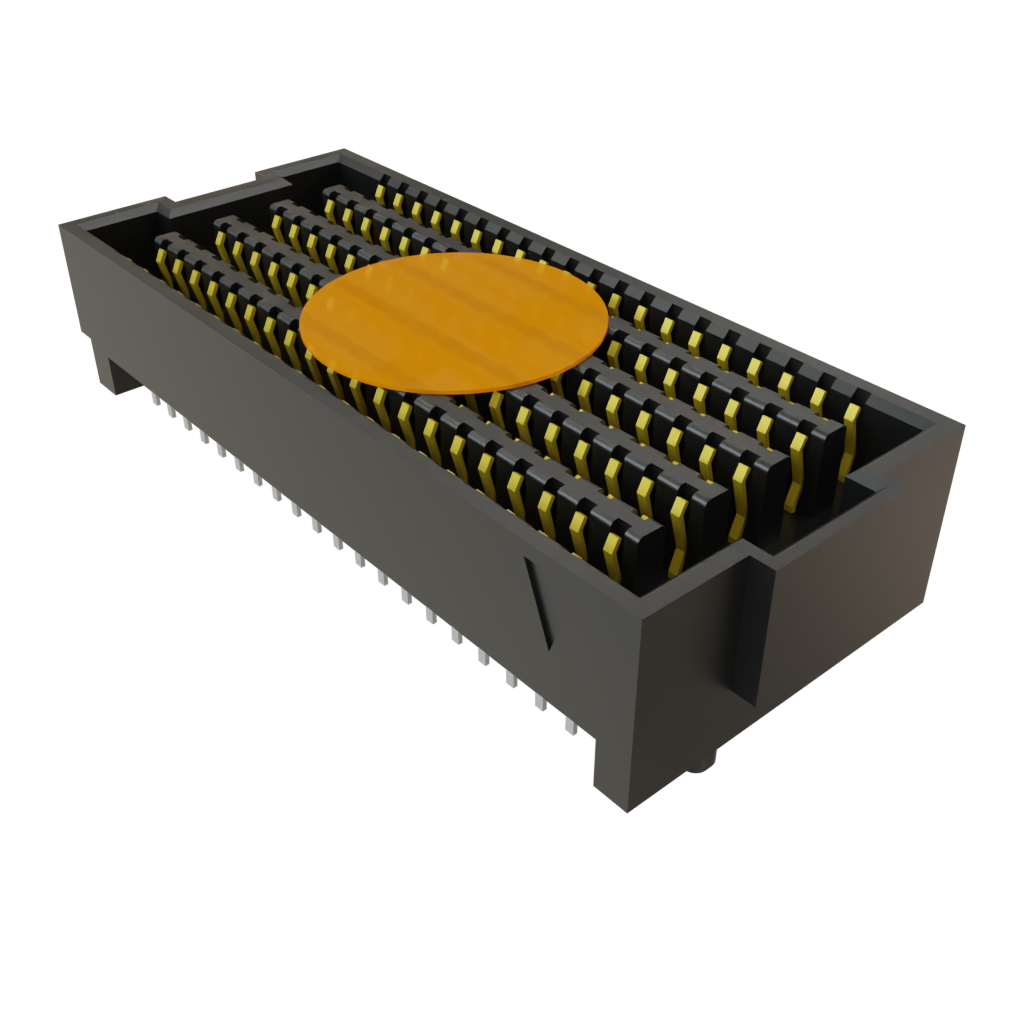

SEAF-20-06.5-L-10-2-A-K-TR

Name: Samtec SEAF-20-06.5-L-10-2-A-K-TR
Brand: Samtec
SKU: 200-SEAF2006.5L102AK
Price: 16.17 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAF2006.5L102AK

Mfr. No:

SEAF-20-06.5-L-10-2-A-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 1.27MM SEARAY HS HD OPN ARRAY

Datasheet:

SEAF-20-06.5-L-10-2-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAF-20-06.5-L-10-2-A-K-TR

In Stock: 67

Stock:: 67 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	16,17 €	16,17 €
	15,46 €	154,60 €
	14,89 €	372,25 €
	13,79 €	689,50 €
	11,85 €	1.185,00 €
Full Reel (Order in multiples of 200)
	11,85 €	2.370,00 €
	11,25 €	4.500,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	200 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	10 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	8.5 mm, 9.5 mm, 10 mm, 13 mm, 13.5 mm, 15.5 mm, 17.5 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Data Rate:	56 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	200
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
