SEAF-20-05.0-S-08-2-A-LP-K-TR

Name: Samtec SEAF-20-05.0-S-08-2-A-LP-K-TR
Brand: Samtec
SKU: 200-F20050S082ALPKTR
Price: 18.58 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-F20050S082ALPKTR

Mfr. No:

SEAF-20-05.0-S-08-2-A-LP-K-TR

Mfr.:

Samtec

Description:

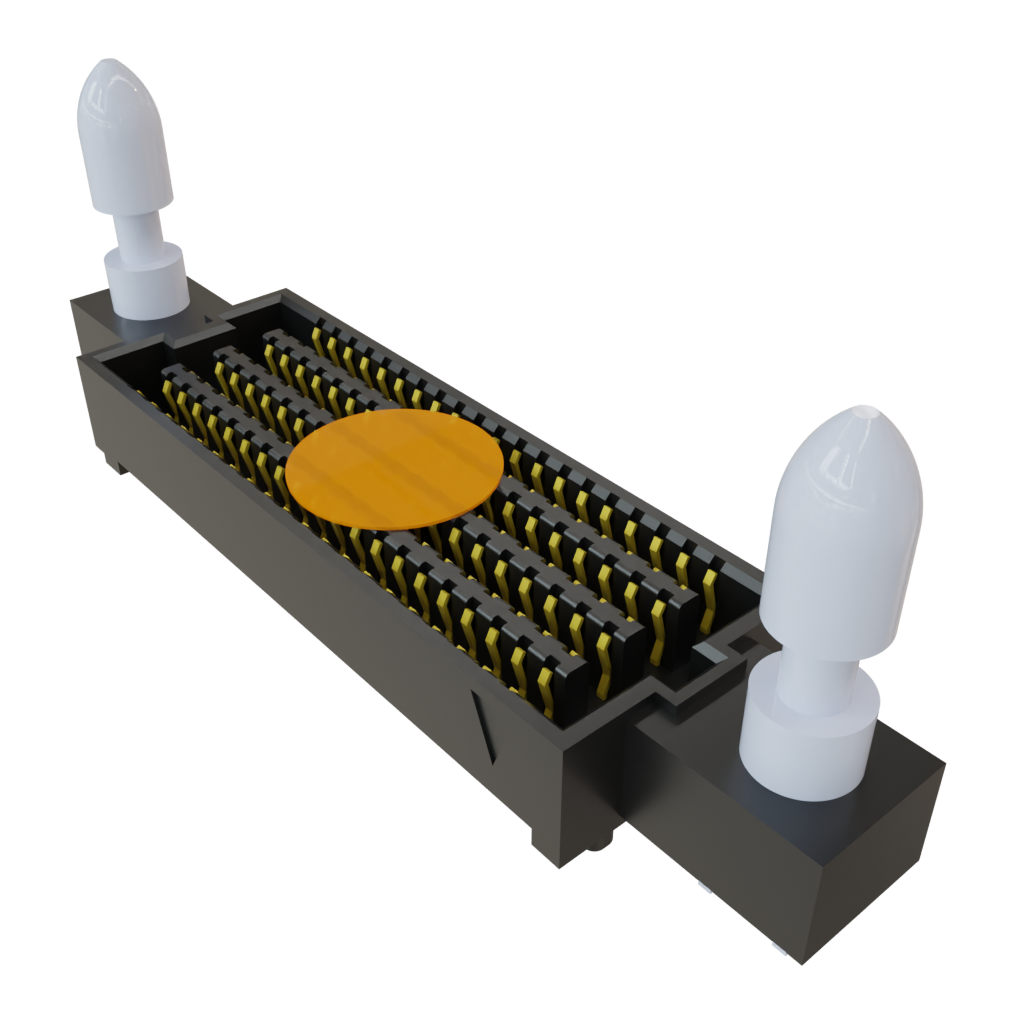

Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Datasheet:

SEAF-20-05.0-S-08-2-A-LP-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAF-20-05.0-S-08-2-A-LP-K-TR

In Stock: 167

Stock:: 167

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 200

Expected 7/8/2026
Factory Lead Time:: 2

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	18,58 €	18,58 €
	16,66 €	166,60 €
	15,62 €	390,50 €
	14,88 €	744,00 €
Full Reel (Order in multiples of 100)
	13,18 €	1.318,00 €
	12,51 €	2.502,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	160 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	8 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	7 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	100
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
