SEAF-20-05.0-S-04-1-A-K-TR

Name: Samtec SEAF-20-05.0-S-04-1-A-K-TR
Brand: Samtec
SKU: 200-SEAF2005.0S041AK
Price: 10.24 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAF2005.0S041AK

Mfr. No:

SEAF-20-05.0-S-04-1-A-K-TR

Mfr.:

Samtec

Description:

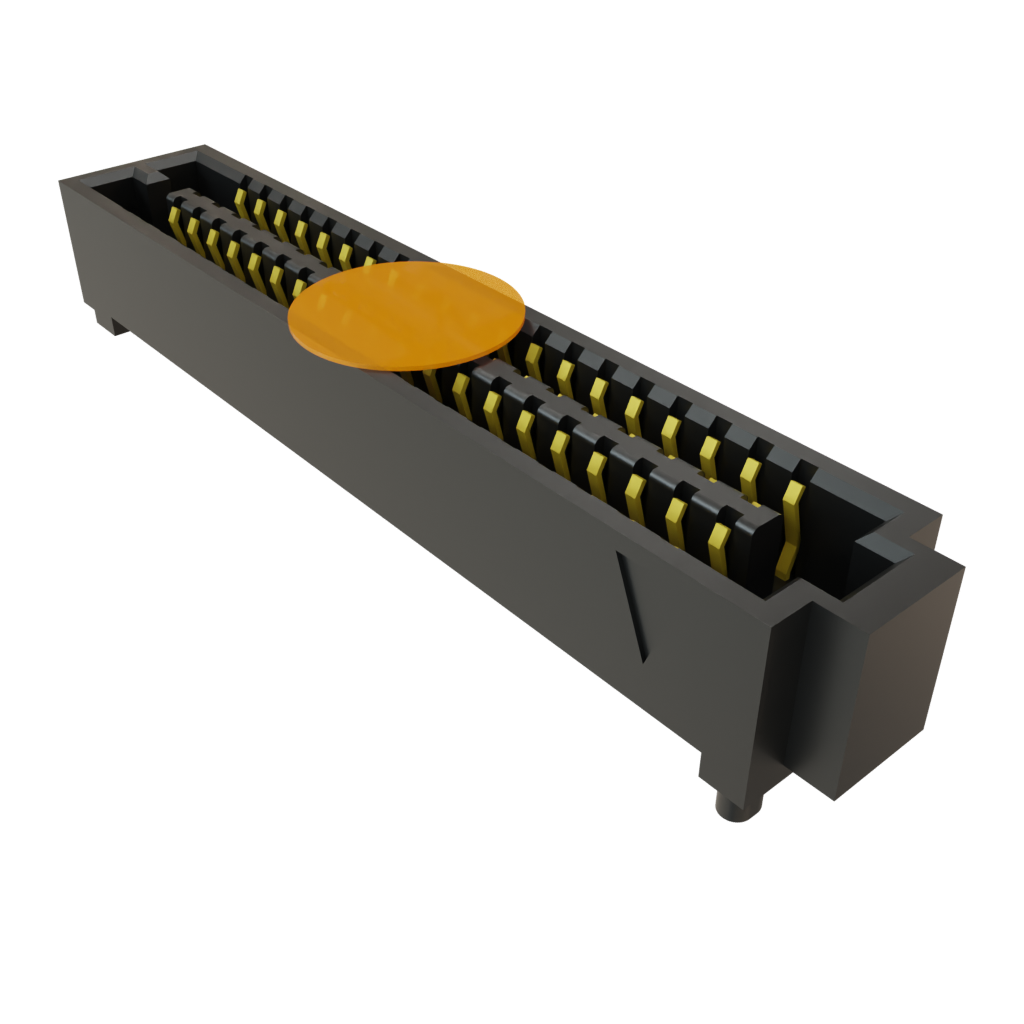

Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Datasheet:

SEAF-20-05.0-S-04-1-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAF-20-05.0-S-04-1-A-K-TR

In Stock: 1.861

Stock:: 1.861 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 375)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	10,24 €	10,24 €
	9,56 €	95,60 €
	9,04 €	226,00 €
	8,28 €	414,00 €
	7,11 €	711,00 €
Full Reel (Order in multiples of 375)
	7,11 €	2.666,25 €
	6,75 €	5.062,50 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	80 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	4 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	7 mm, 8 mm, 8.5 mm, 11.5 mm, 12 mm, 14 mm, 16 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Application:	Power, Signal
Brand:	Samtec
Data Rate:	56 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	375
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
Unit Weight:	488 mg
