SAL1-120-01-S-S-A-K-TR

Name: Samtec SAL1-120-01-S-S-A-K-TR
Brand: Samtec
SKU: 200-SAL112001SSAKTR
Price: 11.22 EUR
Availability: InStock

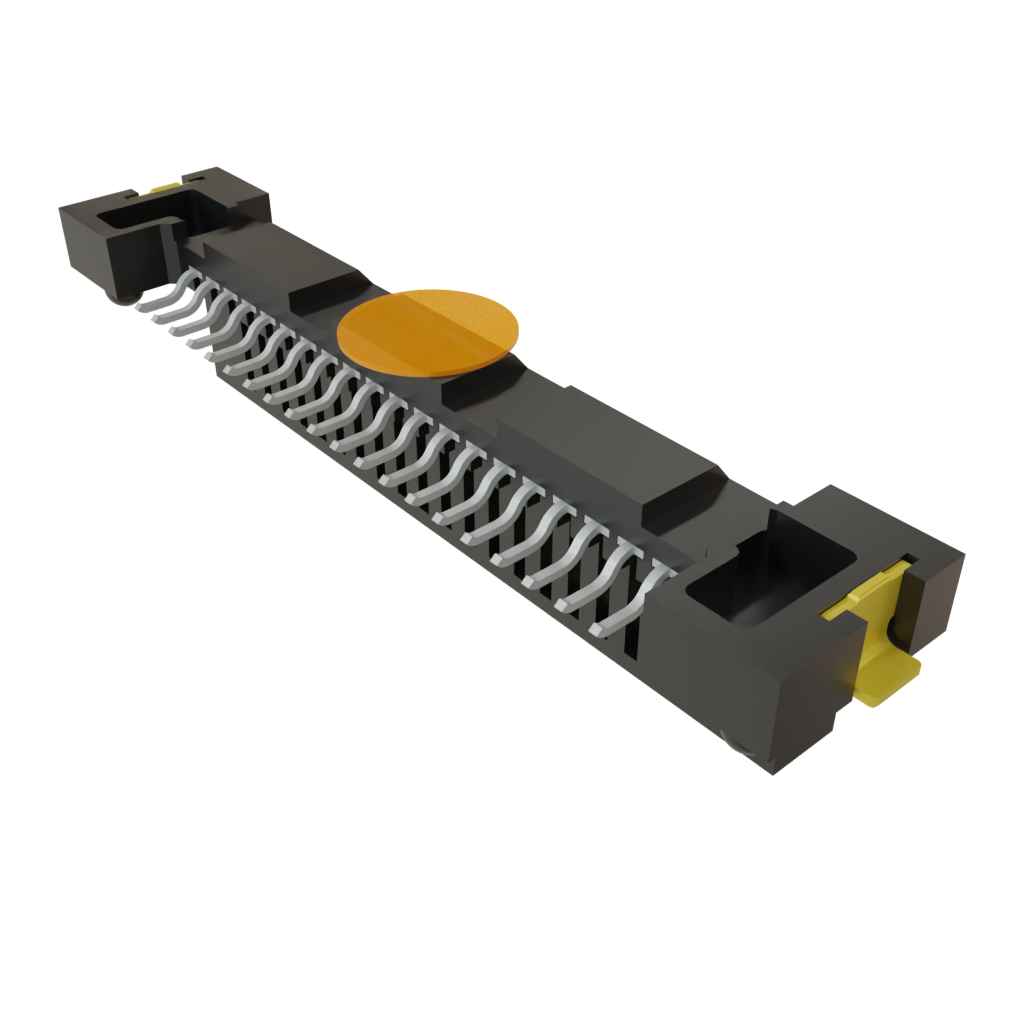

Images are for reference only
See Product Specifications

Mouser No:

200-SAL112001SSAKTR

Mfr. No:

SAL1-120-01-S-S-A-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 1.00MM SATALINK HS MICRO PLANE

Datasheet:

SAL1-120-01-S-S-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 33

Stock:: 33 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 7 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	11,22 €	11,22 €
	10,11 €	101,10 €
	9,00 €	225,00 €
	7,35 €	367,50 €
	5,32 €	532,00 €
Full Reel (Order in multiples of 400)
	5,32 €	2.128,00 €
	5,19 €	4.152,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	20 Position
Pitch:	1 mm (0.039 in)
Termination Style:	Solder
Mounting Angle:	Right Angle
Current Rating:	2.9 A
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Beryllium Copper
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SAL1
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Mounting Style:	PCB Mount
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	400
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SATALink
Unit Weight:	1,012 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
