S1SST-02-28-GF-10.00-L

Name: Samtec S1SST-02-28-GF-10.00-L
Brand: Samtec
SKU: 200-S1SST0228GF1000L
Price: 2.53 EUR
Availability: InStock

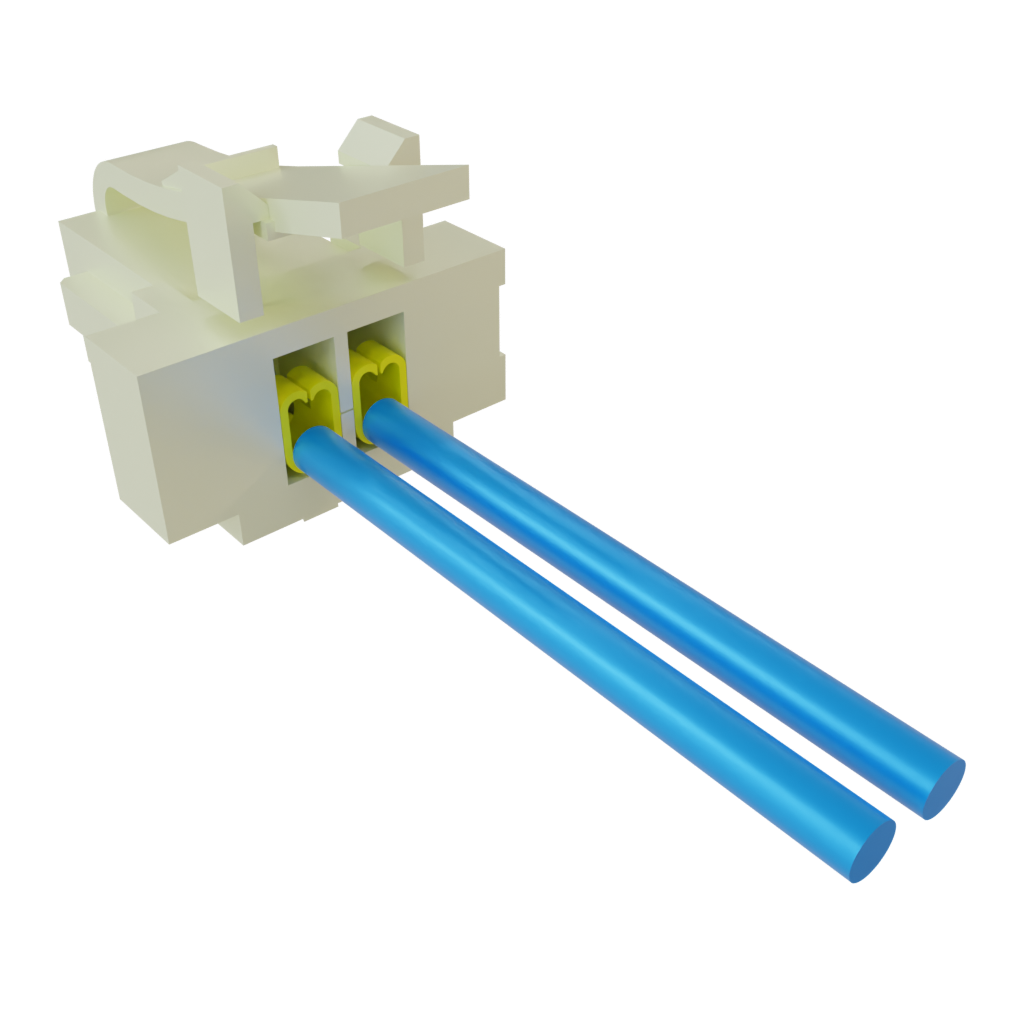

Images are for reference only
See Product Specifications

Mouser No:

200-S1SST0228GF1000L

Mfr. No:

S1SST-02-28-GF-10.00-L

Mfr.:

Samtec

Description:

Rectangular Cable Assemblies Micro Mate Single Row Discrete Wire Cable Assembly

Datasheet:

S1SST-02-28-GF-10.00-L Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec S1SST-02-28-GF-10.00-L

In Stock: 189

Stock:: 189

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 100

Expected 2/24/2026
Factory Lead Time:: 12

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,53 €	2,53 €
	2,06 €	103,00 €
	1,75 €	175,00 €
	1,73 €	865,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Rectangular Cable Assemblies
RoHS:
Series:	S1SST
Product:	Discrete Wire Cable Assemblies
Connector End A:	Socket
Connector End A Pin Count:	2 Position
Connector End B:	No Connector
Gender:	Female
Cable Length:	254 mm
Wire Gauge - AWG:	28 AWG
Current Rating:	2.7 A
Jacket Colour:	Blue
Packaging:	Bulk
Brand:	Samtec
Jacket Material:	Polytetrafluoroethylene (PTFE)
Pitch:	1 mm
Product Type:	Rectangular Cable Assemblies
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Voltage Rating:	250 VAC/353 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

S1SST-02-28-GF-10.00-L Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8544429090
CNHTS:: 8544422100
CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

1mm Discrete Wire Cable Assemblies

Samtec 1mm Discrete Wire Cable Assemblies feature crimp-style, dual-leaf contacts. These IDC ribbon cables are approximately 6" in length and the socket is designed with 2 through 10 contacts per row. They utilize 30AWG and 28AWG cable. Samtec 1mm Discrete Wire Cable Assemblies offer a 3.3A current rating and 250V voltage rating.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1mm Discrete Wire System

Samtec 1mm Discrete Wire System is a space-saving discrete wire system with crimp-style dual leaf contacts for a reliable wire-to-board connection. This Samtec 1mm-pitch wire system offers single-row (2-20 contacts) and double-row (4-40 contacts) versions and vertical and right-angle PCB connectors. These interconnects are available as components or complete assemblies.
