RF23C-24SP-92SP-0305

Name: Samtec RF23C-24SP-92SP-0305
Brand: Samtec
SKU: 200-RF23C24SP92SP305
Price: 72.6 EUR
Availability: InStock

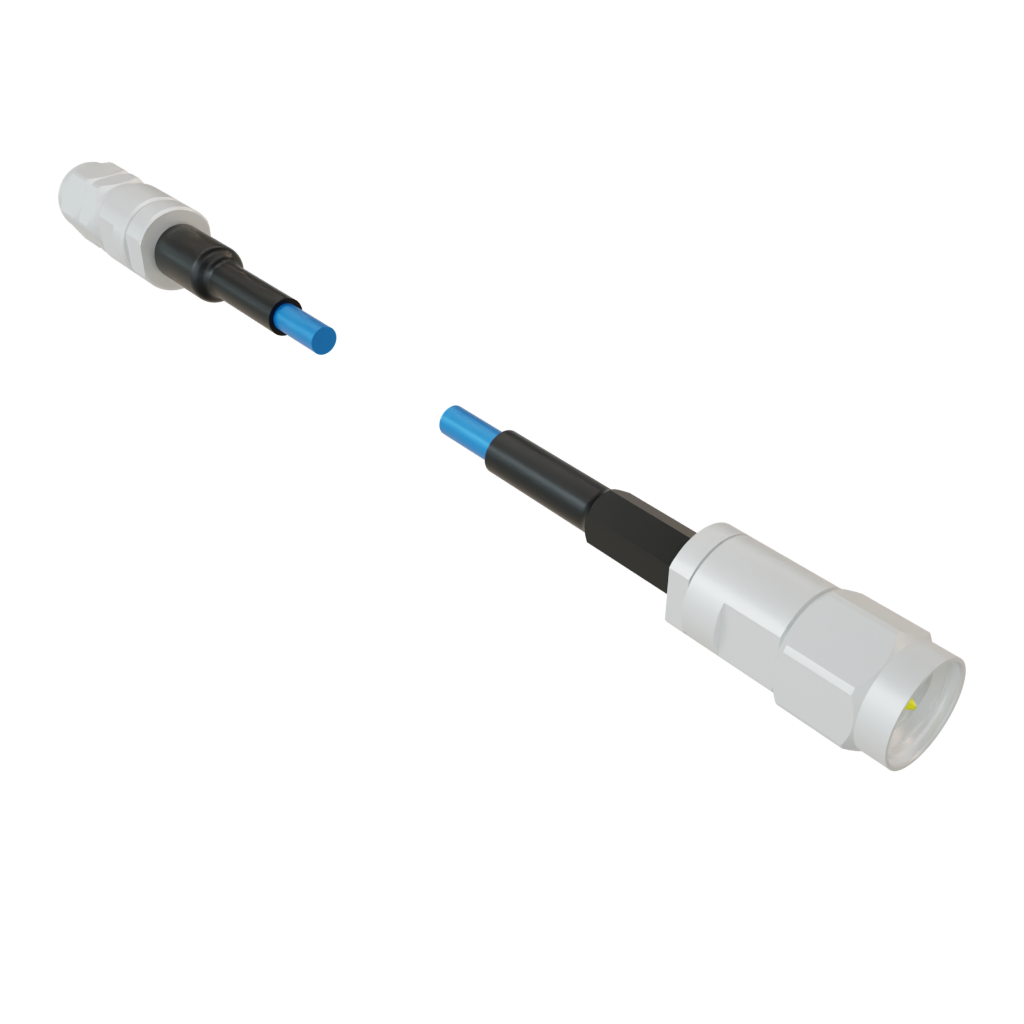

Images are for reference only
See Product Specifications

Mouser No:

200-RF23C24SP92SP305

Mfr. No:

RF23C-24SP-92SP-0305

Mfr.:

Samtec

Description:

RF Cable Assemblies High-Performance Microwave Cable with Copper Foil Shielding

Datasheet:

RF23C-24SP-92SP-0305 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec RF23C-24SP-92SP-0305

In Stock: 6

Stock:: 6 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	72,60 €	72,60 €
	69,14 €	691,40 €
	65,85 €	1.646,25 €
	63,32 €	3.166,00 €
	60,92 €	6.092,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Cable Assemblies
RoHS:
Connector A Series:	2.4 mm
Connector A Gender:	Plug (Male)
Connector A Body Style:	Straight
Connector B Series:	2.92 mm
Connector B Gender:	Plug (Male)
Connector B Body Style:	Straight
Cable Length:	305 mm (12.008 in)
Impedance:	50 Ohms
Maximum Frequency:	50 GHz
Cable Type:	Coaxial
Jacket Colour:	Violet
Packaging:	Bulk
Brand:	Samtec
Connector A Polarity:	Normal
Connector B Polarity:	Normal
Contact Material:	Copper
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Frequency Range:	50 GHz
Polarity:	Normal
Product Type:	RF Cable Assemblies
Series:	RF23C
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Technical Resources

TARIC:: 8544200090
CNHTS:: 8544200000
CAHTS:: 8544200000
USHTS:: 8544200000
JPHTS:: 854420000
KRHTS:: 8544200000
BRHTS:: 85442000
ECCN:: EAR99

18GHz to 110GHz RF Interconnect Solutions

Samtec offers complete RF interconnect solutions supporting traditional sub-6 GHz frequencies to 110GHz microwave/millimeter wave frequencies (sub-Terahertz spectrum). Samtec's Precision RF products are those supporting frequencies between 18GHz to 110GHz with precise, repeatable electrical and mechanical results and low VSWR. Interface types include 1mm, 1.35mm, 1.85mm, 2.40mm, 2.92mm, 3.50mm, SSMA, SMA, SMP, SMPM, ganged SMPM, N-Type, and TNCA. These devices are available in end-to-end microwave cable assemblies, phase and amplitude stable high-performance microwave cable assemblies, board connectors, cable connectors, and in-series and between-series adapter options.
