QSE-014-01-C-D-DP-A-K

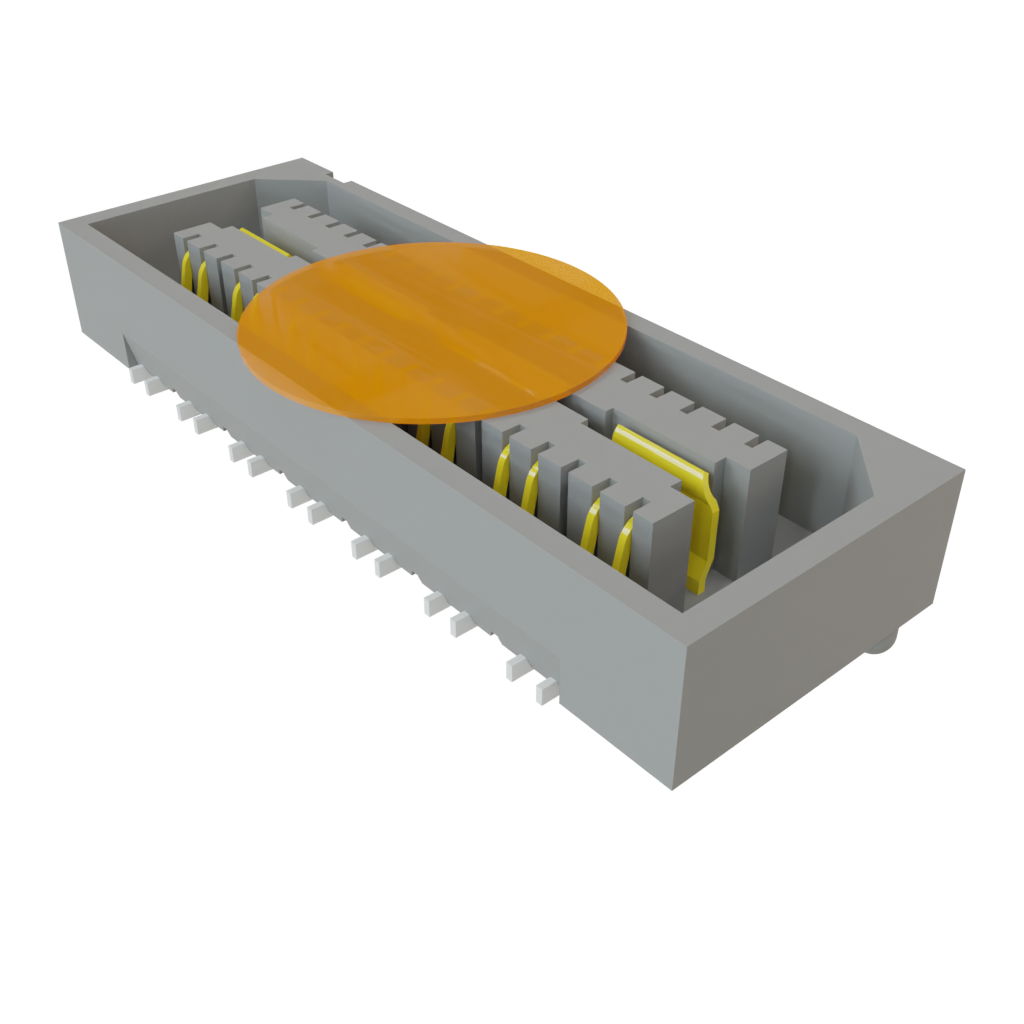

Name: Samtec QSE-014-01-C-D-DP-A-K
Brand: Samtec
SKU: 200-QSE01401CDDPAK
Price: 8.3 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-QSE01401CDDPAK

Mfr. No:

QSE-014-01-C-D-DP-A-K

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80 mm Q Strip High-Speed Ground Plane Socket Strip

Datasheet:

QSE-014-01-C-D-DP-A-K Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec QSE-014-01-C-D-DP-A-K

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 96 Multiples: 96

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,30 €	796,80 €
	8,07 €	1.549,44 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
Product:	Sockets
Number of Positions:	28 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	5 mm
Current Rating:	2 A
Voltage Rating:	225 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	QSE
Packaging:	Tray
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	96
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Q Strip

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Q Strip™ High-Speed Mezzanine Connectors

Samtec Q Strip™ High-Speed Mezzanine Connectors are designed for high-speed board-to-board applications where signal integrity is essential. Q Strip connectors have surface-mount signal contacts and a surface-mount ground plane between the two rows of signals for improved electrical performance. Mated sets of Samtec Q Strip connectors are available in 8 different stack heights from 5mm (.197") to 30mm (1.180"). Options include guideposts for blind mate scenarios and alignment pins and locking clips for proper connector placement before reflow.
