QRM8-018-02.0-L-D-DP-A

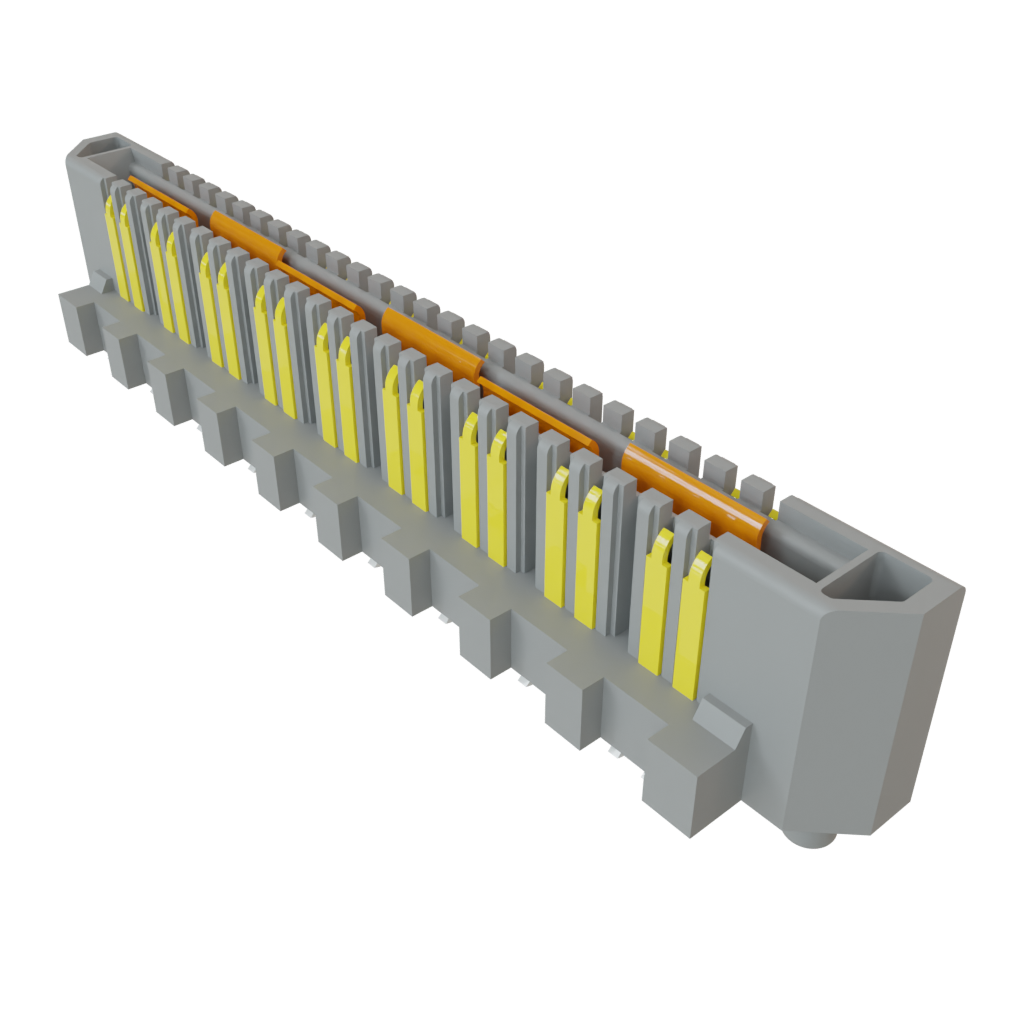

Name: Samtec QRM8-018-02.0-L-D-DP-A
Brand: Samtec
SKU: 200-QRM8018020LDDPA
Price: 9.43 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-QRM8018020LDDPA

Mfr. No:

QRM8-018-02.0-L-D-DP-A

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80 mm Q Rate Slim Body Ground Plane Header

Datasheet:

QRM8-018-02.0-L-D-DP-A Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec QRM8-018-02.0-L-D-DP-A

In Stock: 48

Stock:: 48 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,43 €	9,43 €
	8,71 €	87,10 €
	8,24 €	206,00 €
	7,94 €	397,00 €
	7,71 €	1.966,05 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	36 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	7 mm, 9 mm
Current Rating:	2.2 A
Voltage Rating:	215 VAC
Maximum Data Rate:	28 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	QRM8
Packaging:	Tray
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Data Rate:	28 Gbps
Mounting Style:	Mounting Edge
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	85
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Q Rate, Edge Rate
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).

Q Rate® QRM8/QRF8 .0315" (0.80mm) Pitch Connectors

Samtec Q Rate® QRM8/QRF8 .0315" (0.80mm) Pitch Connectors feature a slim footprint, integral power/ground plane, and Edge Rate® contacts for superior SI performance. These high-speed connectors feature a 0.80mm pitch, 1.20mm contact wipe, up to 156 positions, and performance to 28Gbps. The Q Rate portfolio includes QRF8 sockets, QRM8 headers, high-speed socket strips in right angle (QRF8-RA) and differential pair (QRF8-DP), as well as high-speed terminal strips in right angle (QRM8-RA) and differential pair (QRM8-DP). The standard and "-DP" connectors all offer a slim 4.60mm width, while the "-RA" variant has a low 5.13mm profile. Samtec Q Rate QRM8/QRF8 .0315" (0.80mm) Pitch Connectors operate in a -55°C to +125°C temperature range.
