QRF8-026-07.0-L-D-A

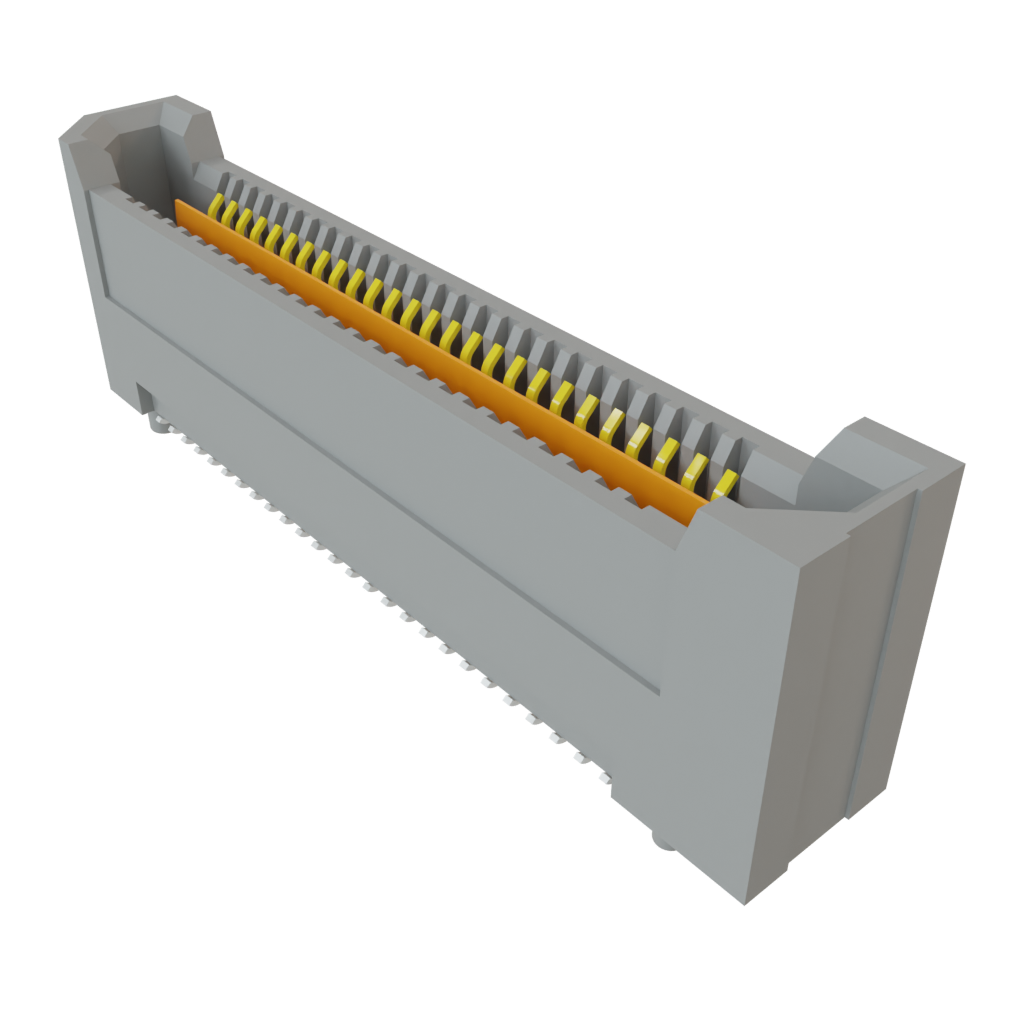

Name: Samtec QRF8-026-07.0-L-D-A
Brand: Samtec
SKU: 200-QRF802607.0LDA
Price: 10.34 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-QRF802607.0LDA

Mfr. No:

QRF8-026-07.0-L-D-A

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80 mm Q Rate Slim Body Ground Plane Socket

Datasheet:

QRF8-026-07.0-L-D-A Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec QRF8-026-07.0-L-D-A

In Stock: 170

Stock:: 170 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,34 €	10,34 €
	9,55 €	95,50 €
	9,04 €	226,00 €
	8,71 €	435,50 €
	8,46 €	2.030,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	52 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	9 mm, 12 mm, 14 mm
Current Rating:	2.2 A
Voltage Rating:	215 VAC
Maximum Data Rate:	28 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Beryllium Copper
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	QRF8
Packaging:	Tray
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Data Rate:	28 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	80
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Q Rate, Edge Rate
Unit Weight:	9,362 g
