QMS-026-05.75-L-D-A-K-TR

Name: Samtec QMS-026-05.75-L-D-A-K-TR
Brand: Samtec
SKU: 200-QMS0260575LDAKTR
Price: 10.28 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-QMS0260575LDAKTR

Mfr. No:

QMS-026-05.75-L-D-A-K-TR

Mfr.:

Samtec

Description:

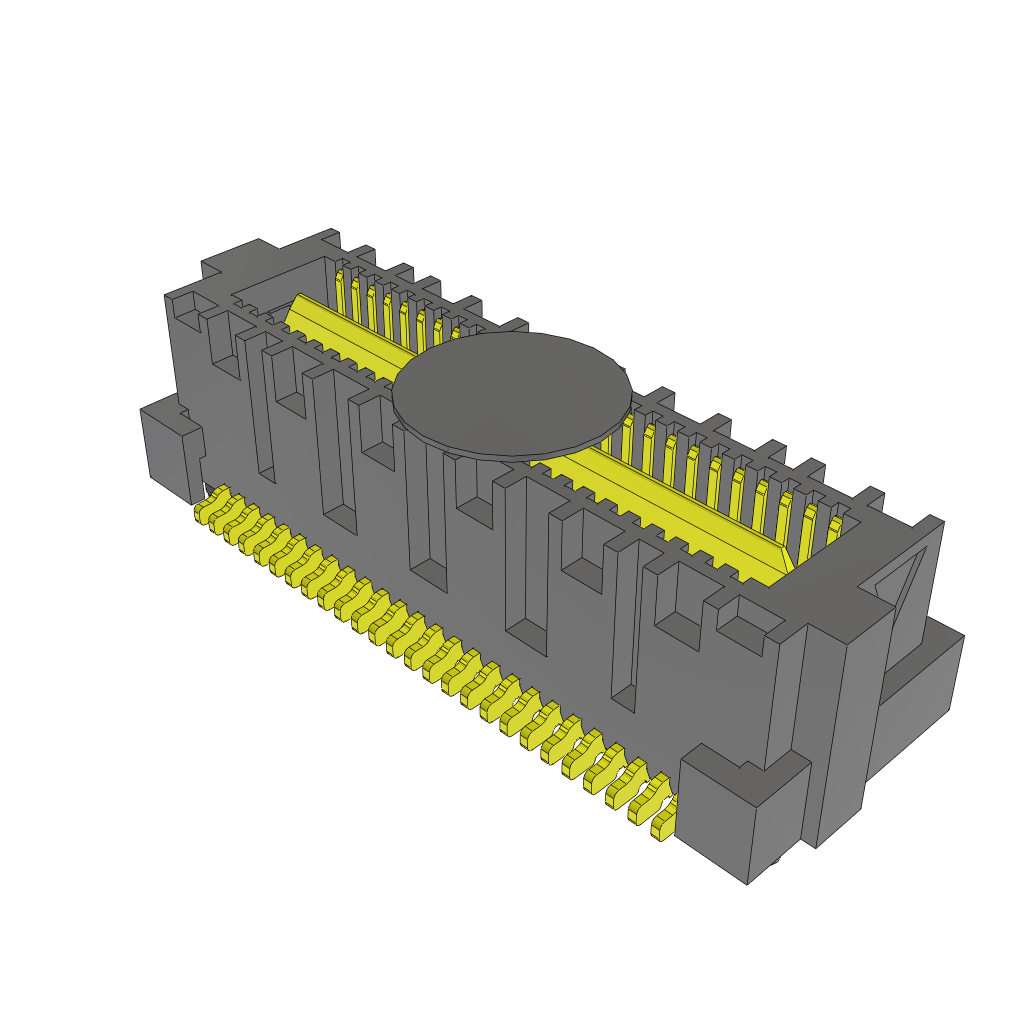

Headers & Wire Housings 0.635 mm Q2 High-Speed Rugged Ground Plane Terminal Strip

Datasheet:

QMS-026-05.75-L-D-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 328

Stock:: 328 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,28 €	10,28 €
	9,49 €	94,90 €
	8,79 €	219,75 €
	7,85 €	392,50 €
	6,91 €	691,00 €
Full Reel (Order in multiples of 350)
	6,91 €	2.418,50 €
	6,83 €	4.781,00 €

Alternative Packaging

Mfr. Part No.:

QMS-026-05.75-L-D-A-K

Packaging:

Tray

Availability:

In Stock

Price:

8,86 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Number of Positions:	52 Position
Pitch:	0.635 mm (0.025 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	QMS
Tradename:	Q2
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Current Rating:	2.6 A
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	350
Subcategory:	Headers & Wire Housings
Voltage Rating:	300 VAC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

QMS-026-05.75-L-D-A-K-TR Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
