QFSS-052-04.25-H-D-PC4

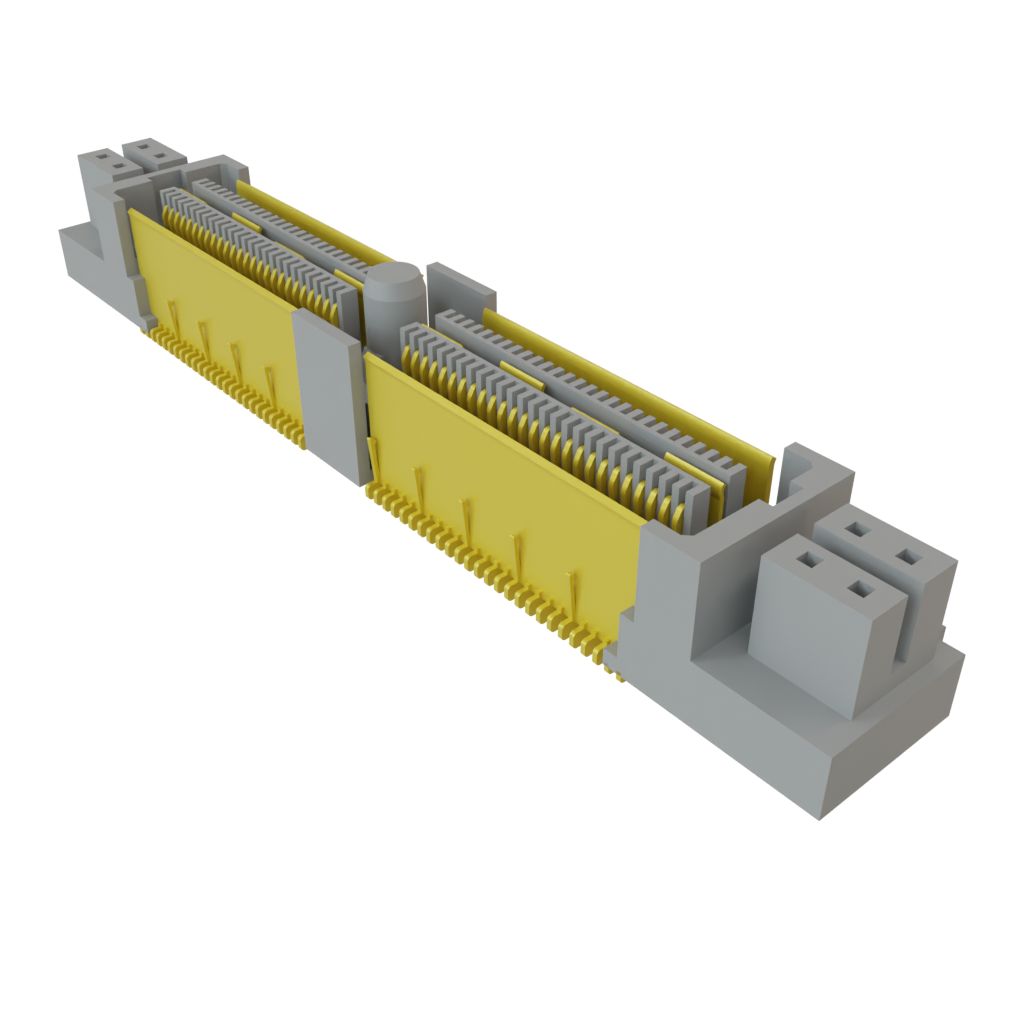

Name: Samtec QFSS-052-04.25-H-D-PC4
Brand: Samtec
SKU: 200-QFSS0520425HDPC4
Price: 32.63 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-QFSS0520425HDPC4

Mfr. No:

QFSS-052-04.25-H-D-PC4

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Socket Strip

Datasheet:

QFSS-052-04.25-H-D-PC4 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec QFSS-052-04.25-H-D-PC4

In Stock: 22

Stock:: 22 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 22 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	32,63 €	32,63 €
	30,89 €	308,90 €
	29,12 €	757,12 €
	26,31 €	1.368,12 €
	25,65 €	2.667,60 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	112 Position
Pitch:	0.635 mm (0.025 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	11 mm
Voltage Rating:	300 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	QFSS
Packaging:	Tray
Application:	Rugged Applications, Standard Shield Grounding
Brand:	Samtec
Mounting Style:	Mounting Peg
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	26
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Q2
