PRF92-P-C-EP-085-SS

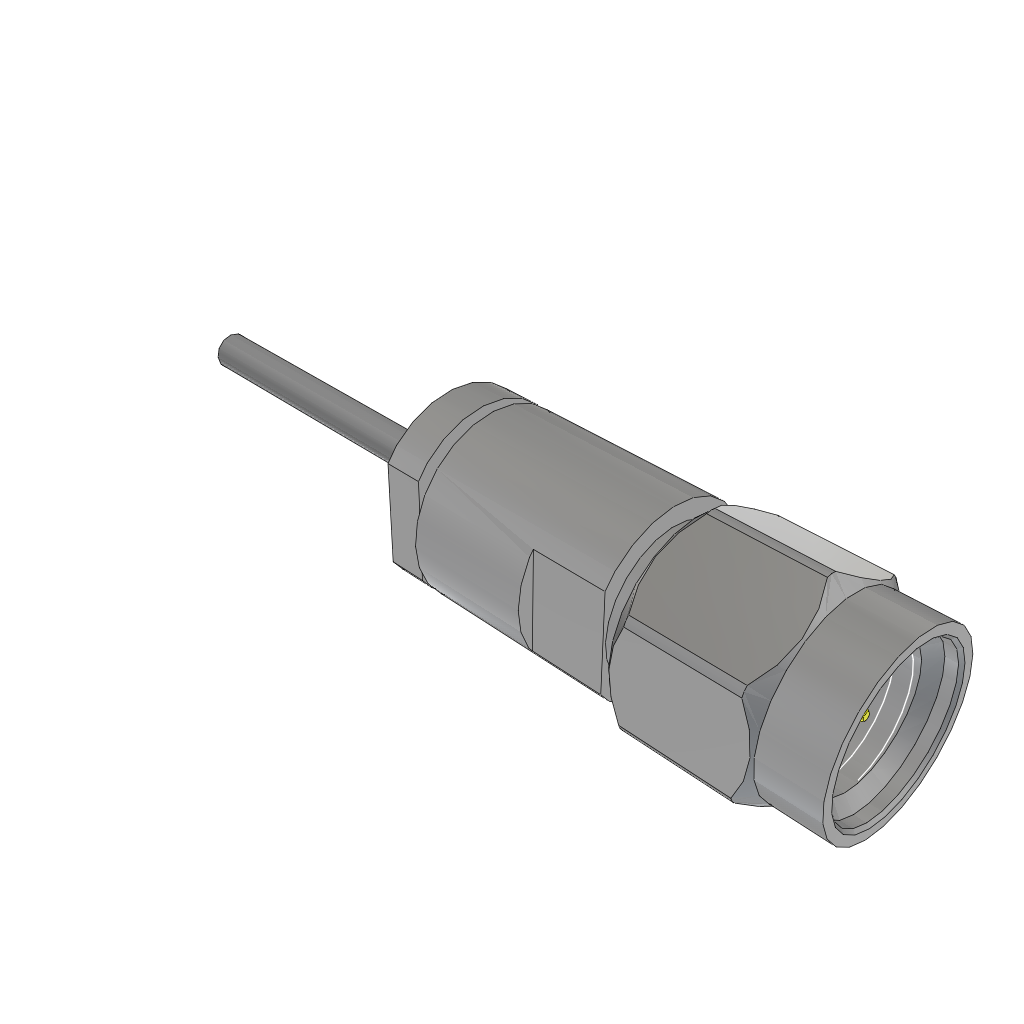

Name: Samtec PRF92-P-C-EP-085-SS
Brand: Samtec
SKU: 200-PRF92-PCEP085SS
Price: 43.12 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-PRF92-PCEP085SS

Mfr. No:

PRF92-P-C-EP-085-SS

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors Precision 2.92 mm Cable Connector

Datasheet:

PRF92-P-C-EP-085-SS Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec PRF92-P-C-EP-085-SS

In Stock: 3

Stock:: 3 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	43,12 €	43,12 €
	33,76 €	337,60 €
	30,68 €	767,00 €
	28,52 €	1.426,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	Cable Connectors
RF Series:	2.92 mm
Gender:	Plug (Pin)
Impedance:	50 Ohms
Maximum Frequency:	40 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Standard
Mounting Style:	Cable Mount / Free Hanging
Cable Type:	Harbour SS405
Packaging:	Bulk
Body Material:	Stainless Steel
Body Style:	Straight
Brand:	Samtec
Contact Material:	Beryllium Copper
Contact Plating:	Gold
Contact Termination:	Solder
Contact Type:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	RF Connectors / Coaxial Connectors
Series:	PRF92
Factory Pack Quantity:	1
Subcategory:	RF Interconnects

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536691000
CNHTS:: 8536901100
CAHTS:: 8536690010
USHTS:: 8536694010
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

PRF92 Precision Cable Connectors

Samtec PRF92 Precision Cable Connectors are 2.92mm precision RF interconnects that offer performance up to 40GHz and a 50Ω impedance rating. These cable connectors are designed with semi-rigid and low-loss flexible cables. Samtec PRF92 Precision Cable Connectors feature a compression mount jack with a two-hole flange in various board thicknesses.

18GHz to 110GHz RF Interconnect Solutions

Samtec offers complete RF interconnect solutions supporting traditional sub-6 GHz frequencies to 110GHz microwave/millimeter wave frequencies (sub-Terahertz spectrum). Samtec's Precision RF products are those supporting frequencies between 18GHz to 110GHz with precise, repeatable electrical and mechanical results and low VSWR. Interface types include 1mm, 1.35mm, 1.85mm, 2.40mm, 2.92mm, 3.50mm, SSMA, SMA, SMP, SMPM, ganged SMPM, N-Type, and TNCA. These devices are available in end-to-end microwave cable assemblies, phase and amplitude stable high-performance microwave cable assemblies, board connectors, cable connectors, and in-series and between-series adapter options.
