PMSS-04-16-K-40.00-S

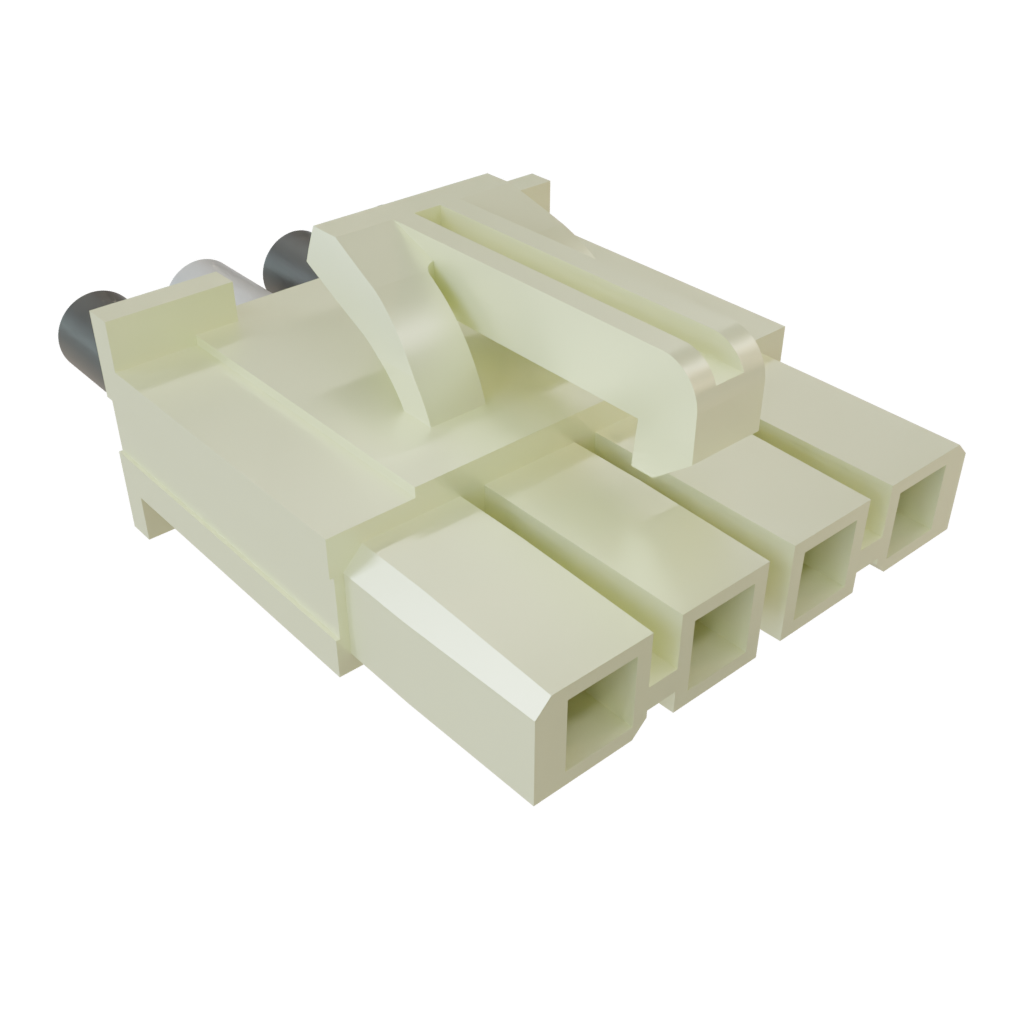

Name: Samtec PMSS-04-16-K-40.00-S
Brand: Samtec
SKU: 200-PMSS0416K4000S
Price: 5.17 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-PMSS0416K4000S

Mfr. No:

PMSS-04-16-K-40.00-S

Mfr.:

Samtec

Description:

Rectangular Cable Assemblies .165 Power Mate Single Row Discrete Wire Cable Assembly

Datasheet:

PMSS-04-16-K-40.00-S Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec PMSS-04-16-K-40.00-S

In Stock: 288

Stock:: 288

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 515

Expected 3/23/2026

1.000

Expected 3/30/2026
Factory Lead Time:: 4

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,17 €	5,17 €
	4,67 €	116,75 €
	4,59 €	229,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Rectangular Cable Assemblies
RoHS:
Series:	PMSS
Product:	Discrete Wire Cable Assemblies
Connector End A:	Socket
Connector End A Pin Count:	4 Position
Connector End B:	No Connector
Gender:	Female
Cable Length:	1.016 m
Wire Gauge - AWG:	16 AWG
Jacket Colour:	Black
Packaging:	Bulk
Brand:	Samtec
Jacket Material:	Polyvinyl Chloride (PVC)
Pitch:	4.19 mm
Product Type:	Rectangular Cable Assemblies
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Power Mate

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

PMSS-04-16-K-40.00-S Datasheet (PDF)

Images


PCN

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8544429090
CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

4.19mm (0.165") Power Mate® Discrete Wire System

Samtec 4.19mm (0.165") Power Mate® Discrete Wire System features cables and connectors with individually shrouded contacts for reliability in harsh environments with up to 10.4A. This product lineup is available as components with tooling or as complete cable assemblies. The Power Mate discrete wire system is shrouded, polarized, and keyed and offers a 10.4A maximum current rating, 400V_AC / 566V_DC voltage rating, and 24AWG to 16AWG PVC or Teflon™ fluoropolymer cable. Additional features include plastic latches, single or double row, up to 30 pins, and mating terminal strips in a vertical or right-angle orientation. Ideal applications for the Samtec 4.19mm (0.165") Power Mate series are military, aerospace, submersibles, and other harsh environments.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.
