PCIE-LP-16-01-F-DV-A

Name: Samtec PCIE-LP-16-01-F-DV-A
Brand: Samtec
SKU: 200-PCIELP1601FDVA
Price: 9.41 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-PCIELP1601FDVA

Mfr. No:

PCIE-LP-16-01-F-DV-A

Mfr.:

Samtec

Description:

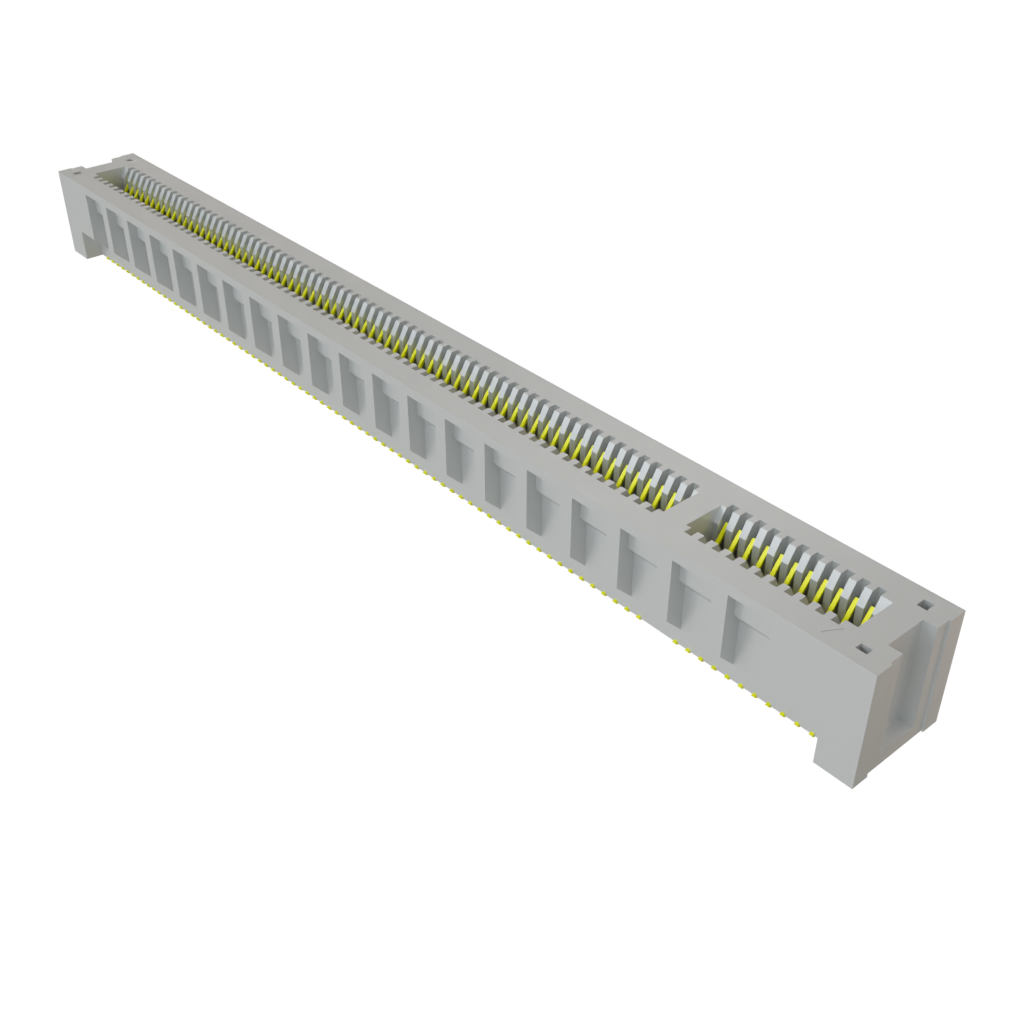

PCI Express/PCI Connectors 1.00 mm PCI Express(R) Gen 3 Edge Card Connector

Datasheet:

PCIE-LP-16-01-F-DV-A Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec PCIE-LP-16-01-F-DV-A

In Stock: 37

Stock:: 37 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,41 €	9,41 €
	8,48 €	84,80 €
	7,55 €	362,40 €
	5,99 €	718,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	PCI Express/PCI Connectors
RoHS:
Product:	PCI Express
Mounting Style:	SMD/SMT
Mounting Angle:	Vertical
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Series:	PCIE
Board Thickness:	7.65 mm
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	2.1 A
Description/Function:	PCI express card sockets
Height:	11 mm
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Packaging:	Tray
Product Type:	PCI Express / PCI Connectors
Factory Pack Quantity:	24
Subcategory:	Card Edge Connectors
Tradename:	PCI Express
Unit Weight:	37 g
