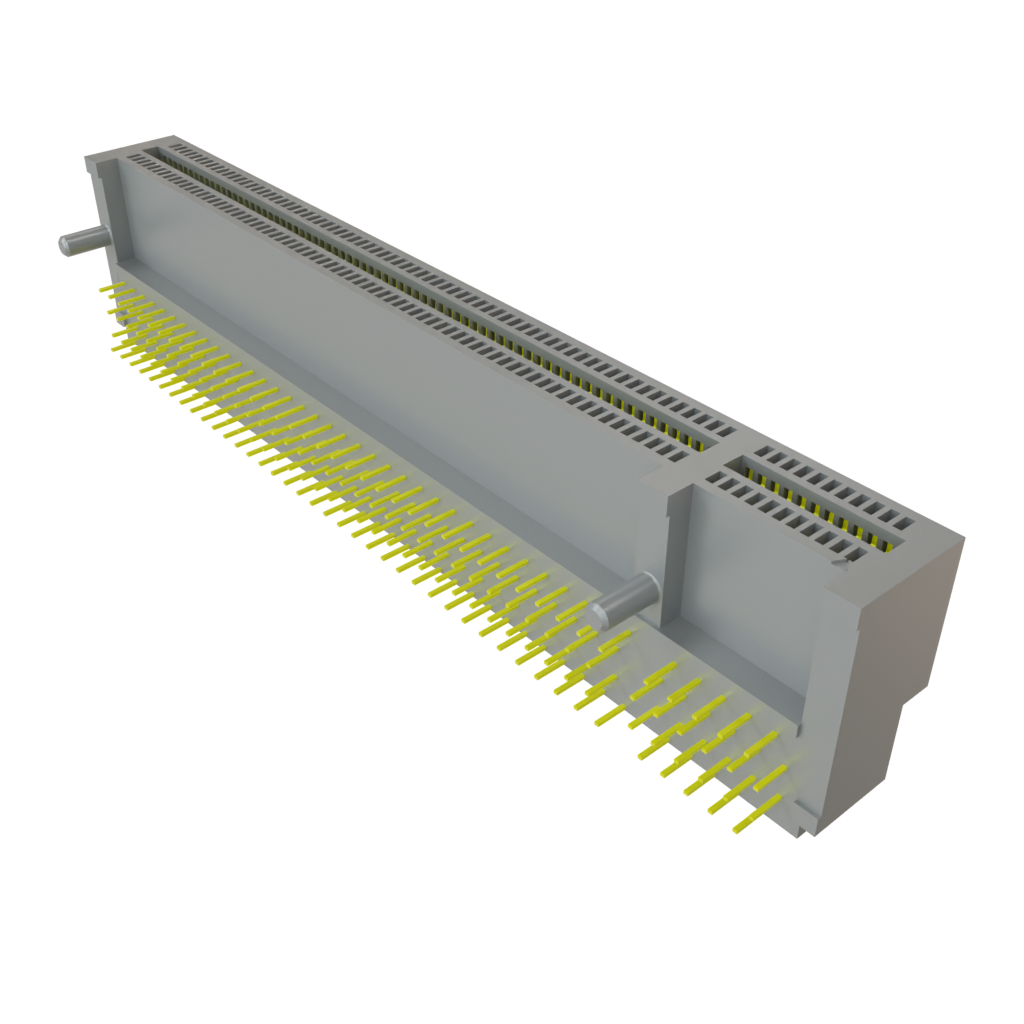

PCIE-164-02-F-D-RA

Name: Samtec PCIE-164-02-F-D-RA
Brand: Samtec
SKU: 200-PCIE16402FDRA
Price: 11.29 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-PCIE16402FDRA

Mfr. No:

PCIE-164-02-F-D-RA

Mfr.:

Samtec

Description:

PCI Express/PCI Connectors 1.00 mm PCI Express(R) Gen 3 Edge Card Connector

Datasheet:

PCIE-164-02-F-D-RA Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec PCIE-164-02-F-D-RA

In Stock: 72

Stock:: 72 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	11,29 €	11,29 €
	10,18 €	122,16 €
	9,07 €	272,10 €
	7,40 €	399,60 €
	6,10 €	622,20 €
	5,93 €	2.988,72 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	PCI Express/PCI Connectors
RoHS:
Product:	PCI Express
Number of Positions:	164 Position
Mounting Style:	Through Hole
Mounting Angle:	Right Angle
Termination Style:	Solder Pin
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Series:	PCIE
Board Thickness:	7.65 mm
Brand:	Samtec
Current Rating:	2.2 A
Description/Function:	PCI express card sockets
Height:	11 mm
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Tube
Product Type:	PCI Express / PCI Connectors
Factory Pack Quantity:	6
Subcategory:	Card Edge Connectors
Tradename:	PCI Express
Unit Weight:	51,661 g
