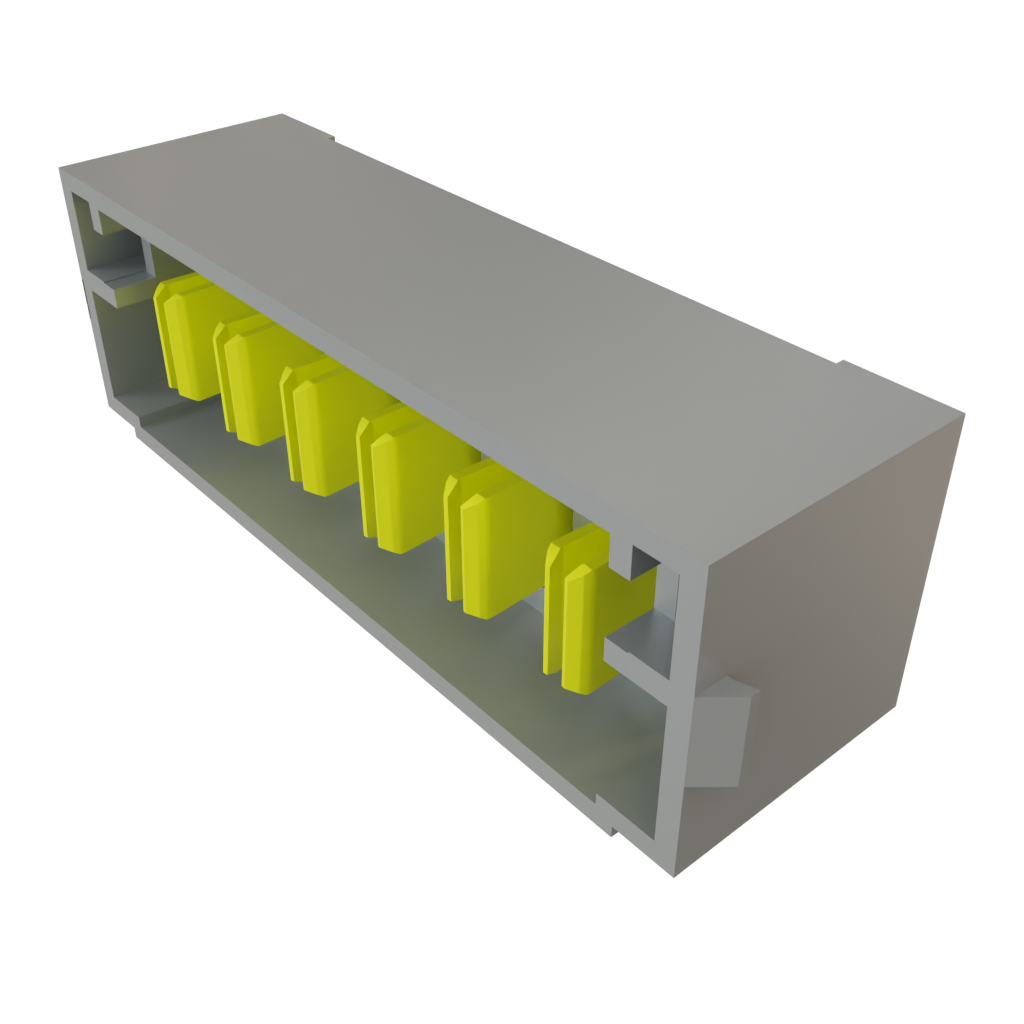

MPT-06-6.30-01-L-V

Name: Samtec MPT-06-6.30-01-L-V
Brand: Samtec
SKU: 200-MPT066.3001LV
Price: 5.55 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-MPT066.3001LV

Mfr. No:

MPT-06-6.30-01-L-V

Mfr.:

Samtec

Description:

Power to the Board 5.00 mm PowerStrip/30 A Dual Blade Terminal Strip

Datasheet:

MPT-06-6.30-01-L-V Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Pin (Male)
Current Rating:	30 A
Voltage Rating:	575 VAC, 812 VDC
Number of Positions:	6 Power
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Pitch:	5 mm
Maximum Operating Temperature:	+ 125 C
Series:	MPT
Packaging:	Tray
Tradename:	PowerStrip
Brand:	Samtec
Contact Material:	Copper Alloy
Contact Plating:	Gold
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	1 Row
Factory Pack Quantity:	54
Subcategory:	Power Connectors
Unit Weight:	10,017 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Malaysia
Assembly Country of Origin:: Malaysia
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.
