MMCX-P-C-H-ST-CA2

Name: Samtec MMCX-P-C-H-ST-CA2
Brand: Samtec
SKU: 200-MMCXPCHSTCA2
Price: 4.38 EUR
Availability: OutOfStock

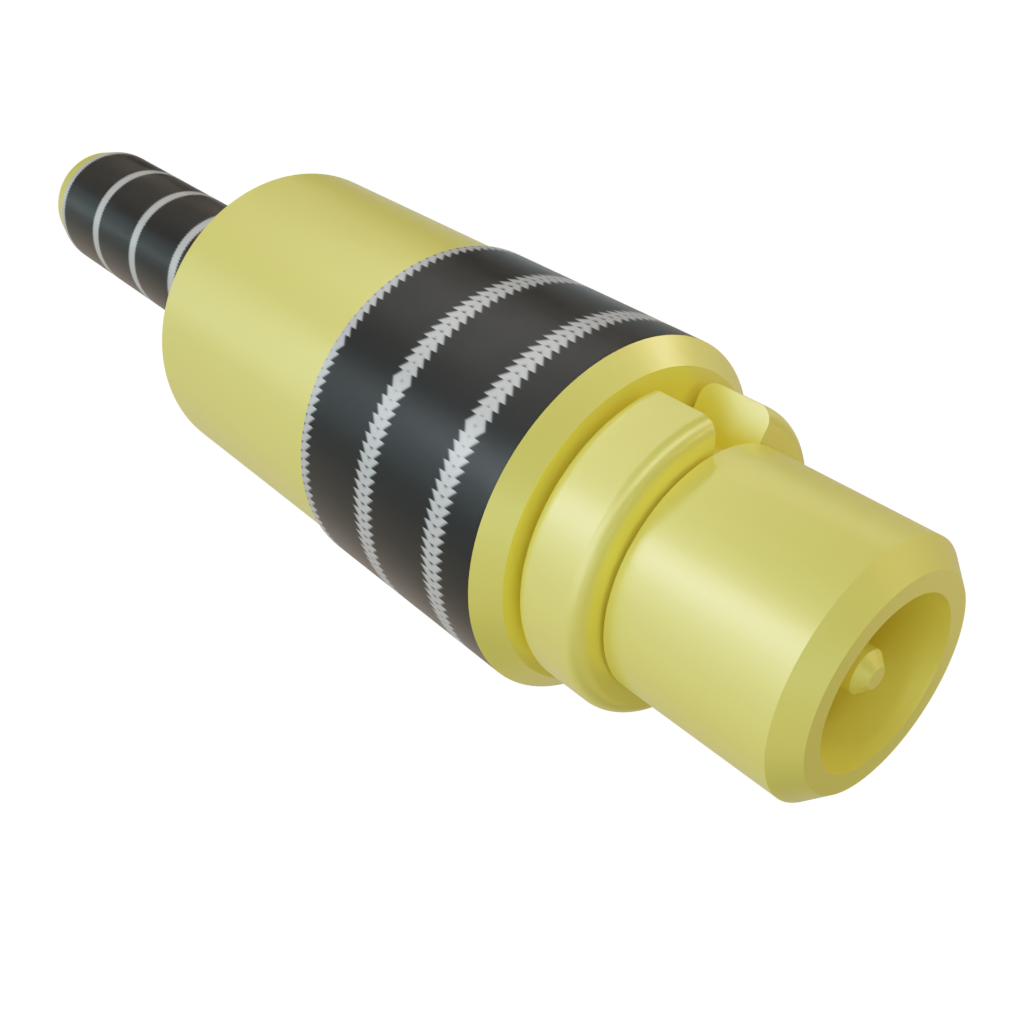

Images are for reference only
See Product Specifications

Mouser No:

200-MMCXPCHSTCA2

Mfr. No:

MMCX-P-C-H-ST-CA2

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors 50 Ohm MMCX Plug

Datasheet:

MMCX-P-C-H-ST-CA2 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec MMCX-P-C-H-ST-CA2

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 46

Expected 4/15/2026
Factory Lead Time:: 4

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,38 €	4,38 €
	4,21 €	210,50 €
	4,03 €	403,00 €
	3,75 €	937,50 €
	3,61 €	1.805,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	Cable Connectors
RF Series:	MMCX
Gender:	Plug (Pin)
Impedance:	50 Ohms
Maximum Frequency:	6 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Standard
Mounting Style:	Cable Mount / Free Hanging
Cable Type:	RG-178
Packaging:	Tray
Brand:	Samtec
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	MMCX-CA
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Voltage Rating:	170 Vrms
Unit Weight:	1,430 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MMCX-P-C-H-ST-CA2 Datasheet (PDF)

Images


Specification Sheets

TARIC:: 8536691000
CNHTS:: 8536901100
CAHTS:: 8536690010
USHTS:: 8536694010
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Low Frequency RF Cables & Interconnects

Samtec offers a wide range of Low-Frequency RF Cables and Interconnects designed for 50Ω and 75Ω applications with a variety of straight and right-angle jacks, plugs, and bulkhead jacks. Vertical, right-angle, or edge-mount orientations and through-hole, surface-mount, or mixed technology PCB terminations are available for these products. The RF board connectors are available for board-to-board or cable-to-board, ganged, and blind-mate applications. Samtec RF cable assemblies are available with low-loss microwave/millimeter wave cables from 0.047 to 0.277, RG-type cables, 12G-SKI Belden cables, high-density ganged, and Samtec-optimized varieties. Additionally, Samtec RF cable connectors with bayonet, threaded, and push-on coupling features are available for a wide variety of industry-standard cables.

MMCX Assemblies & Connectors

Samtec MMCX Assemblies and Connectors feature multiple series, including RF174, RF178, RF316, MMCX-CA, MMCX-SM, MMCX-EM, and more. RF series MMCX cable assemblies are constructed with various cables depending on the series, such as RG174 cables, RG178 cables, RG316 cables with a single-braid shield, etc. These cable assemblies also come with different connector ends like straight plugs or right-angle plugs.
