MECF-30-02-L-DV-WT

Name: Samtec MECF-30-02-L-DV-WT
Brand: Samtec
SKU: 200-MECF3002LDVWT
Price: 5.94 EUR
Availability: OutOfStock

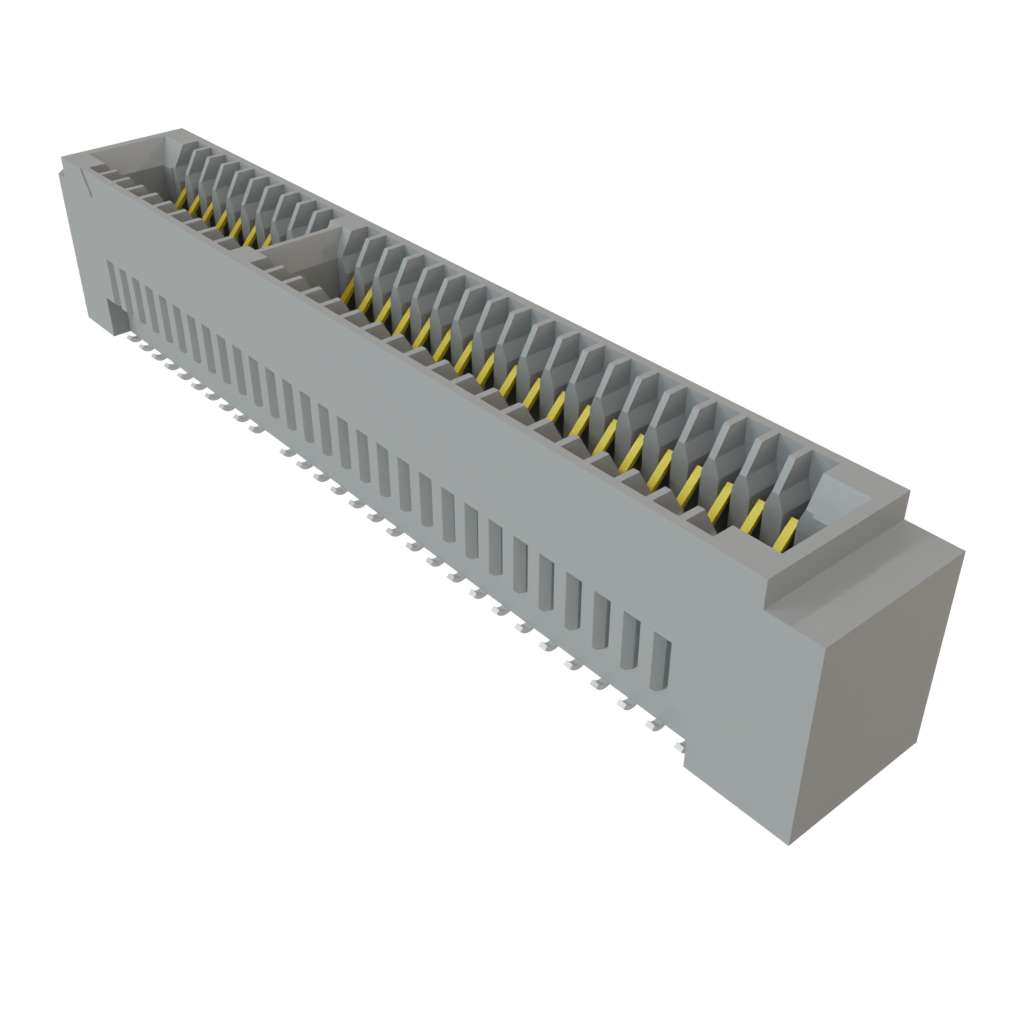

Images are for reference only
See Product Specifications

Mouser No:

200-MECF3002LDVWT

Mfr. No:

MECF-30-02-L-DV-WT

Mfr.:

Samtec

Description:

Standard Card Edge Connectors .050 Mini Edge Card Connector

Datasheet:

MECF-30-02-L-DV-WT Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 300

Expected 3/30/2026
Factory Lead Time:: 9

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,94 €	5,94 €
	5,00 €	300,00 €
	4,76 €	514,08 €
	4,64 €	2.338,56 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Sockets
Number of Positions:	60 Position
Pitch:	1.27 mm
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	MECF
Brand:	Samtec
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	3.5 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Tube
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	12
Subcategory:	Card Edge Connectors
Voltage Rating:	280 V
Unit Weight:	6,489 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

High-Speed Edge Card Connectors

Samtec High-Speed Edge Card Connectors feature a wide variety of pitches, including 0.5mm, 0.635mm, 0.8mm, 1mm, 1.27mm, 1.6mm, and 2mm. Mounting angles include straight, right, and vertical. These connectors are offered in an expansive range of mounting styles such as edge mount, board lock, mounting peg, SMD/SMT, straddle mount, through hole, and more. The number of positions on Samtec High-Speed Edge Card Connectors ranges from 8 to 300.
