MCX-J-P-H-ST-SM1-TR

Name: Samtec MCX-J-P-H-ST-SM1-TR
Brand: Samtec
SKU: 200-MCXJPHSTSM1TR
Price: 2.65 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-MCXJPHSTSM1TR

Mfr. No:

MCX-J-P-H-ST-SM1-TR

Mfr.:

Samtec

Description:

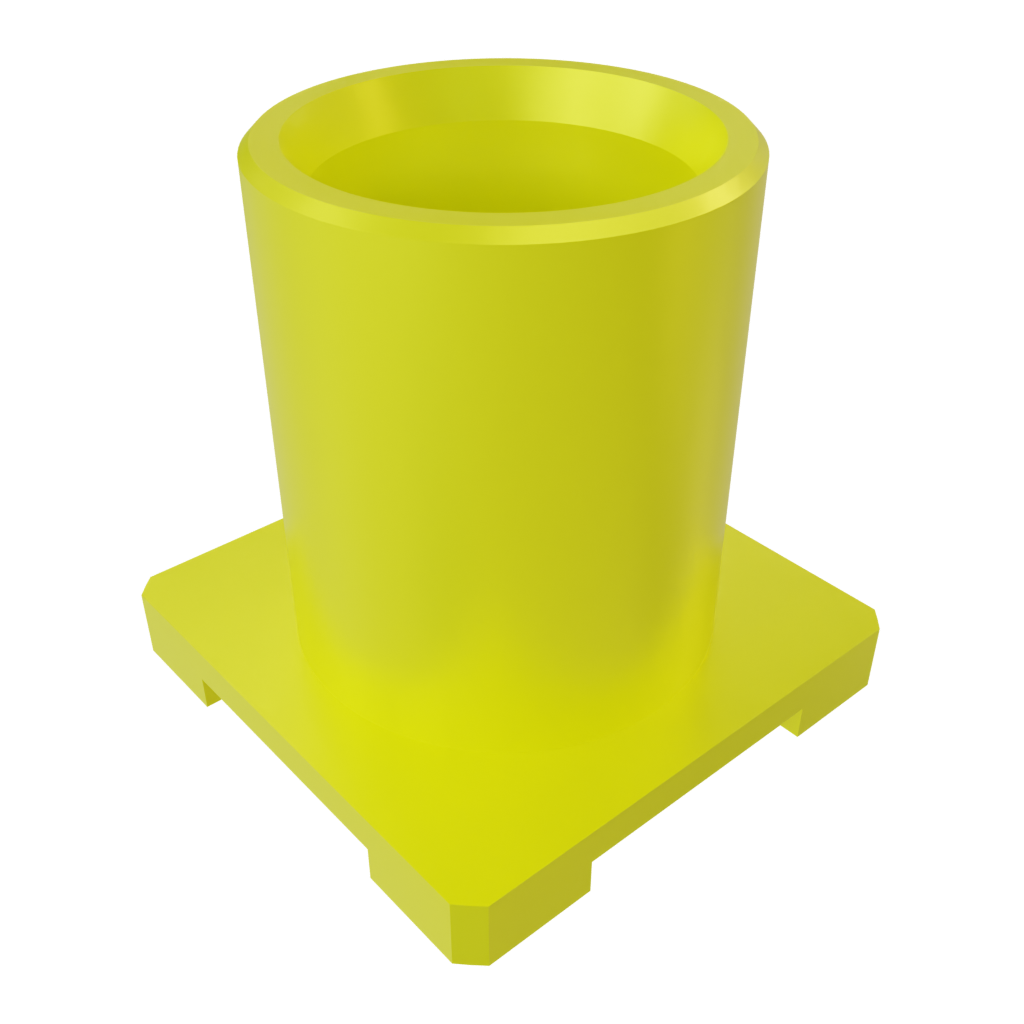

RF Connectors / Coaxial Connectors 50 Ohm MCX Jack or Plug

Datasheet:

MCX-J-P-H-ST-SM1-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec MCX-J-P-H-ST-SM1-TR

In Stock: 1.137

Stock:: 1.137 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 575)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	2,65 €	2,65 €
	2,52 €	126,00 €
	2,33 €	233,00 €
Full Reel (Order in multiples of 575)
	2,33 €	1.339,75 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

Alternative Packaging

Mfr. Part No.:

MCX-J-P-H-ST-SM1

Packaging:

Tray

Availability:

In Stock

Price:

5,01 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	PCB Connectors
RF Series:	MCX
Gender:	Jack (Socket)
Impedance:	50 Ohms
Maximum Frequency:	6 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Standard
Mounting Style:	SMD/SMT
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Body Material:	Brass
Brand:	Samtec
Contact Material:	Beryllium Copper
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	MCX
Factory Pack Quantity:	575
Subcategory:	RF Interconnects
Voltage Rating:	335 Vrms

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
