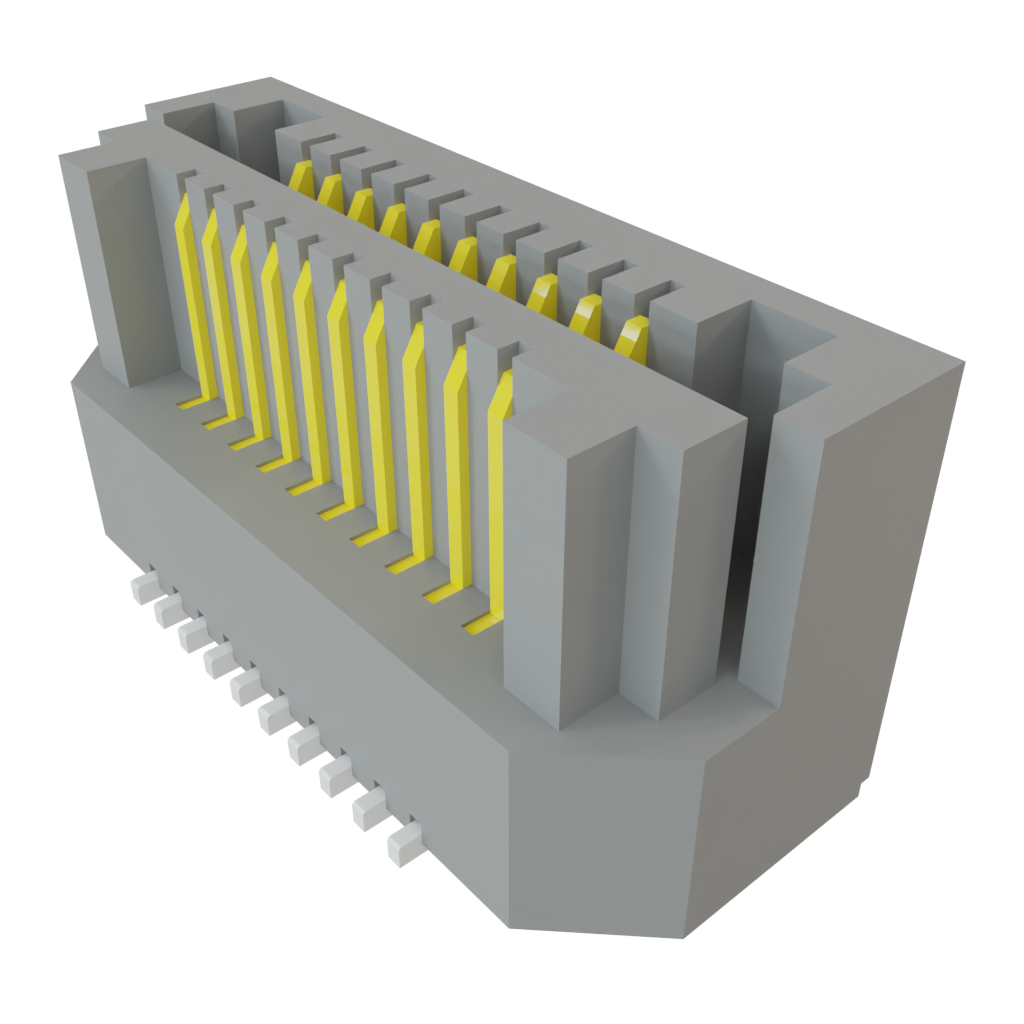

LSS-110-03-L-DV-A

Name: Samtec LSS-110-03-L-DV-A
Brand: Samtec
SKU: 200-LSS11003LDVA
Price: 2.62 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-LSS11003LDVA

Mfr. No:

LSS-110-03-L-DV-A

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.635 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Datasheet:

LSS-110-03-L-DV-A Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 3.651

Stock:: 3.651 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,62 €	2,62 €
	2,21 €	110,50 €
	1,93 €	229,67 €
	1,63 €	969,85 €
	1,44 €	1.542,24 €
	1,37 €	2.771,51 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	20 Position
Pitch:	0.635 mm (0.025 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	7 mm, 8 mm, 10 mm
Current Rating:	1.7 A
Voltage Rating:	300 VAC
Maximum Data Rate:	25 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	LSS
Packaging:	Tray
Application:	Power, Signal
Brand:	Samtec
Data Rate:	25 Gbps
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	119
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Razor Beam
Unit Weight:	100 mg
