LSHM-140-06.0-L-DV-A-S-TR

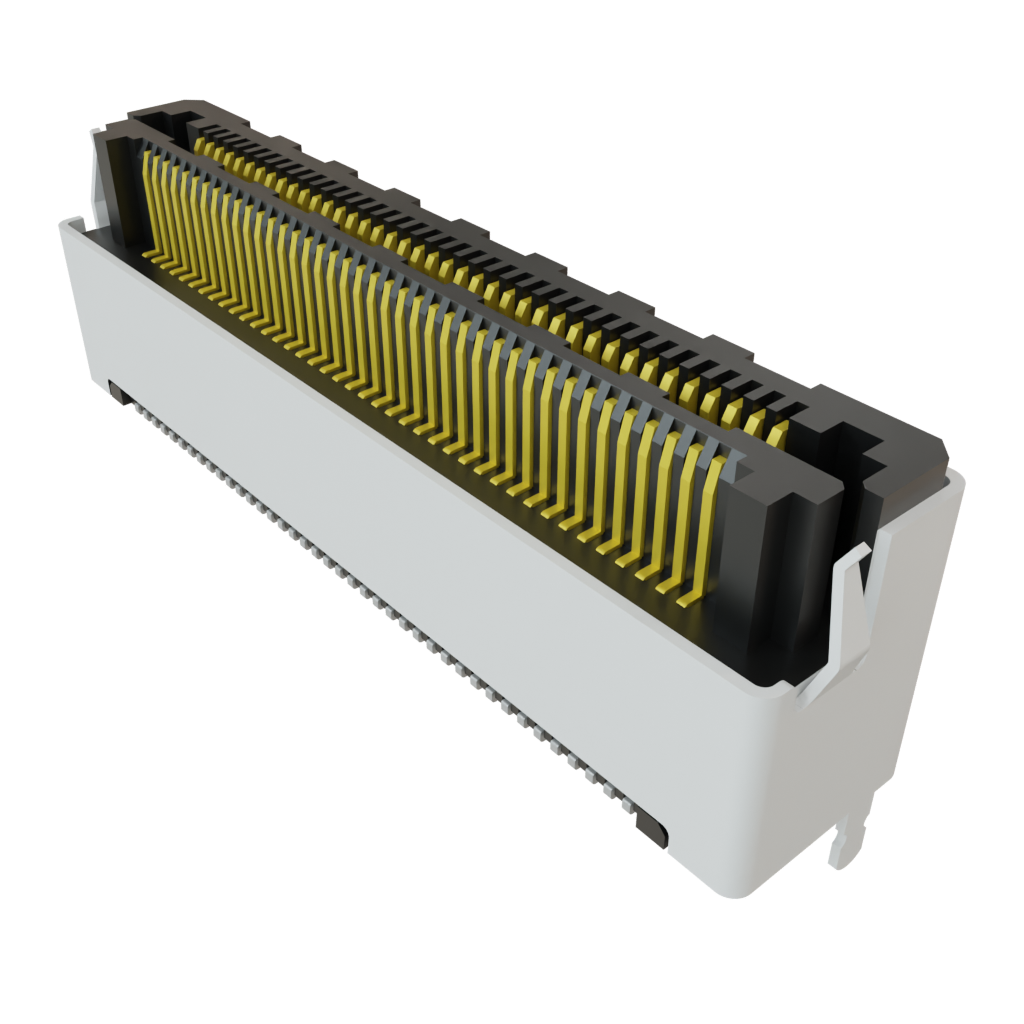

Name: Samtec LSHM-140-06.0-L-DV-A-S-TR
Brand: Samtec
SKU: 200-LSHM14006LDVASTR
Price: 6.87 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-LSHM14006LDVASTR

Mfr. No:

LSHM-140-06.0-L-DV-A-S-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.50MM RAZOR BEAM HS HERM STRP

Datasheet:

LSHM-140-06.0-L-DV-A-S-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec LSHM-140-06.0-L-DV-A-S-TR

In Stock: 439

Stock:: 439 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 275)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	6,87 €	6,87 €
	6,58 €	65,80 €
	6,36 €	159,00 €
	5,86 €	293,00 €
	5,22 €	522,00 €
Full Reel (Order in multiples of 275)
	5,22 €	1.435,50 €
	4,58 €	2.519,00 €
	4,55 €	8.758,75 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	80 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	2 A
Voltage Rating:	160 VAC
Maximum Data Rate:	16 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	LSHM
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Data Rate:	16 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	Board Lock
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	275
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Razor Beam
