ITD2-20-D

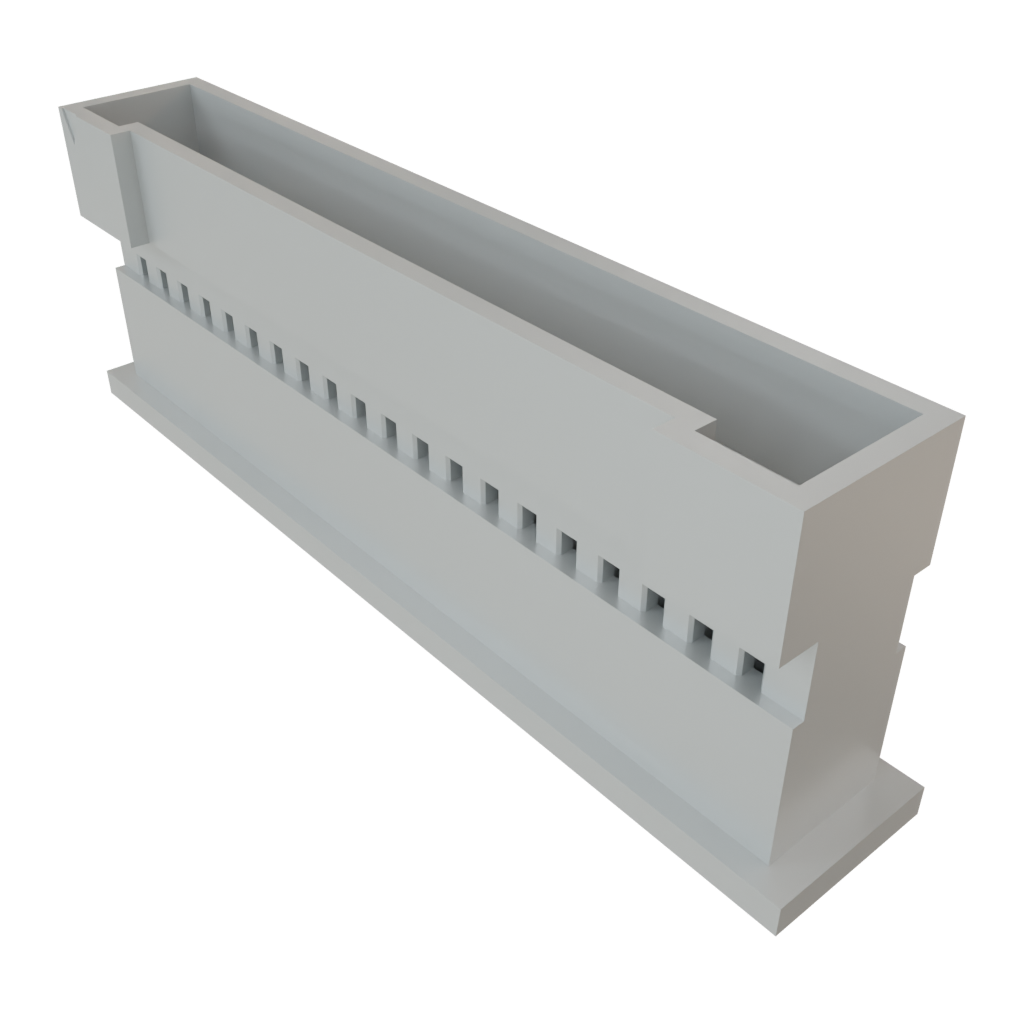

Name: Samtec ITD2-20-D
Brand: Samtec
SKU: 200-ITD2-20-D
Price: 1.63 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ITD2-20-D

Mfr. No:

ITD2-20-D

Mfr.:

Samtec

Description:

Headers & Wire Housings 2.00 mm Tiger Eye Discrete Wire Terminal Housing

Datasheet:

ITD2-20-D Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ITD2-20-D

In Stock: 58

Stock:: 58 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,63 €	1,63 €
	1,26 €	63,00 €
	1,02 €	102,00 €
	0,965 €	482,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Row Spacing:	2 mm (0.079 in)
Mounting Style:	Cable Mount / Free Hanging
Mounting Angle:	Straight
Series:	ITD2
Tradename:	Tiger Eye
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Female
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ITD2-20-D Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8538906000
ECCN:: EAR99

2mm Pitch Tiger Eye™ Discrete Wire Systems

Samtec 2mm Pitch Tiger Eye™ Discrete Wire Systems are available as components or complete assemblies and are shrouded, polarized, and keyed. These discrete wire systems feature metal latch and screw-down options. The 2mm Pitch Tiger Eye™ discrete wire systems feature PVC or Teflon^® cable and are available in assembly tooling.
