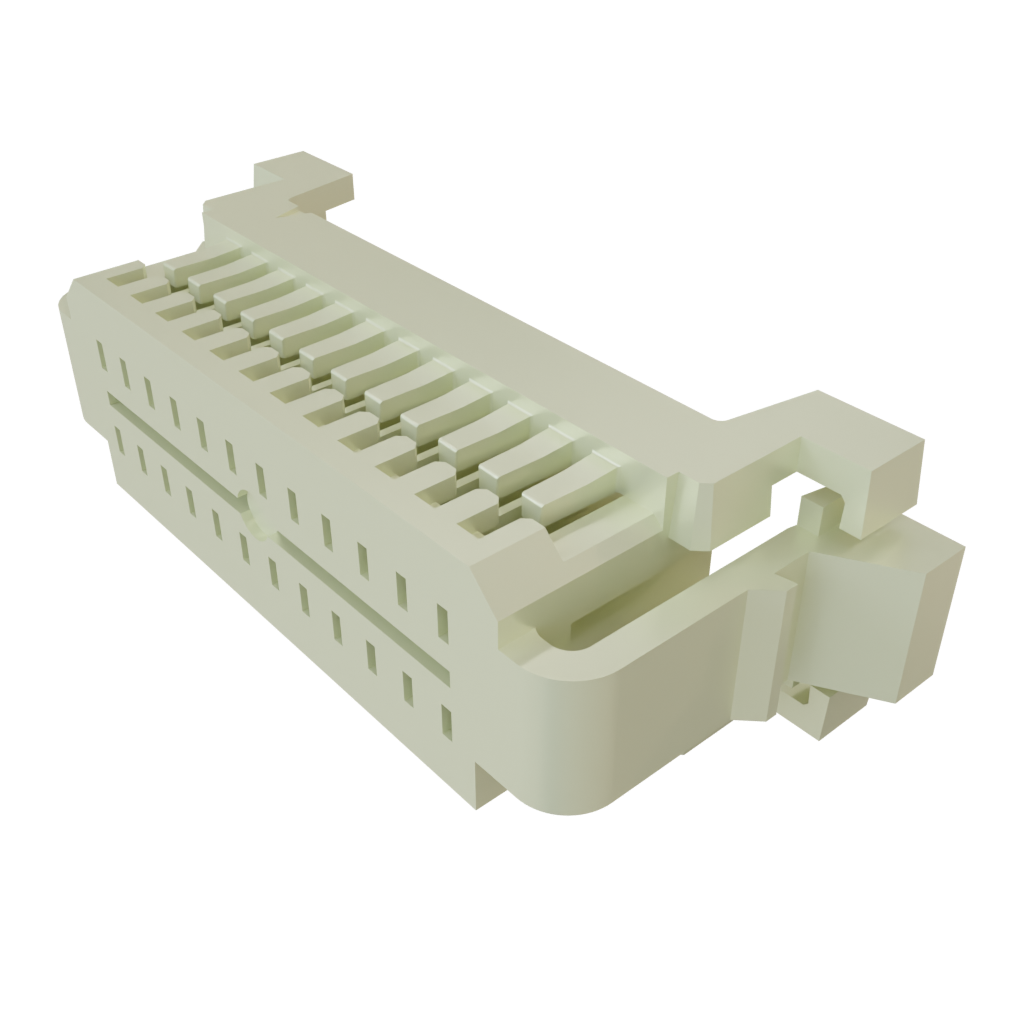

ISD1-12

Name: Samtec ISD1-12
Brand: Samtec
SKU: 200-ISD1-12
Price: 0.82 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ISD1-12

Mfr. No:

ISD1-12

Mfr.:

Samtec

Description:

Headers & Wire Housings

Datasheet:

ISD1-12 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ISD1-12

In Stock: 294

Stock:: 294 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,826 €	0,83 €
	0,745 €	186,25 €
	0,667 €	333,50 €
	0,582 €	582,00 €
	0,578 €	1.445,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	24 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	2 Row
Row Spacing:	1 mm (0.039 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	ISD1
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Housing Colour:	White
Housing Gender:	Female
Housing Material:	Nylon
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	9600
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

CNHTS:: 8538900000
USHTS:: 8538906000
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

1mm Discrete Wire Components & Tools

Samtec 1mm Discrete Wire Components and Tools include ISS1 and ISD1 wire housings. These wire housings are available in single- and double-row variants. Samtec ISS1 and ISD1 wire housings are built with phosphor bronze contact material and protected with a natural nylon insulator material.

1mm Discrete Wire System

Samtec 1mm Discrete Wire System is a space-saving discrete wire system with crimp-style dual leaf contacts for a reliable wire-to-board connection. This Samtec 1mm-pitch wire system offers single-row (2-20 contacts) and double-row (4-40 contacts) versions and vertical and right-angle PCB connectors. These interconnects are available as components or complete assemblies.
