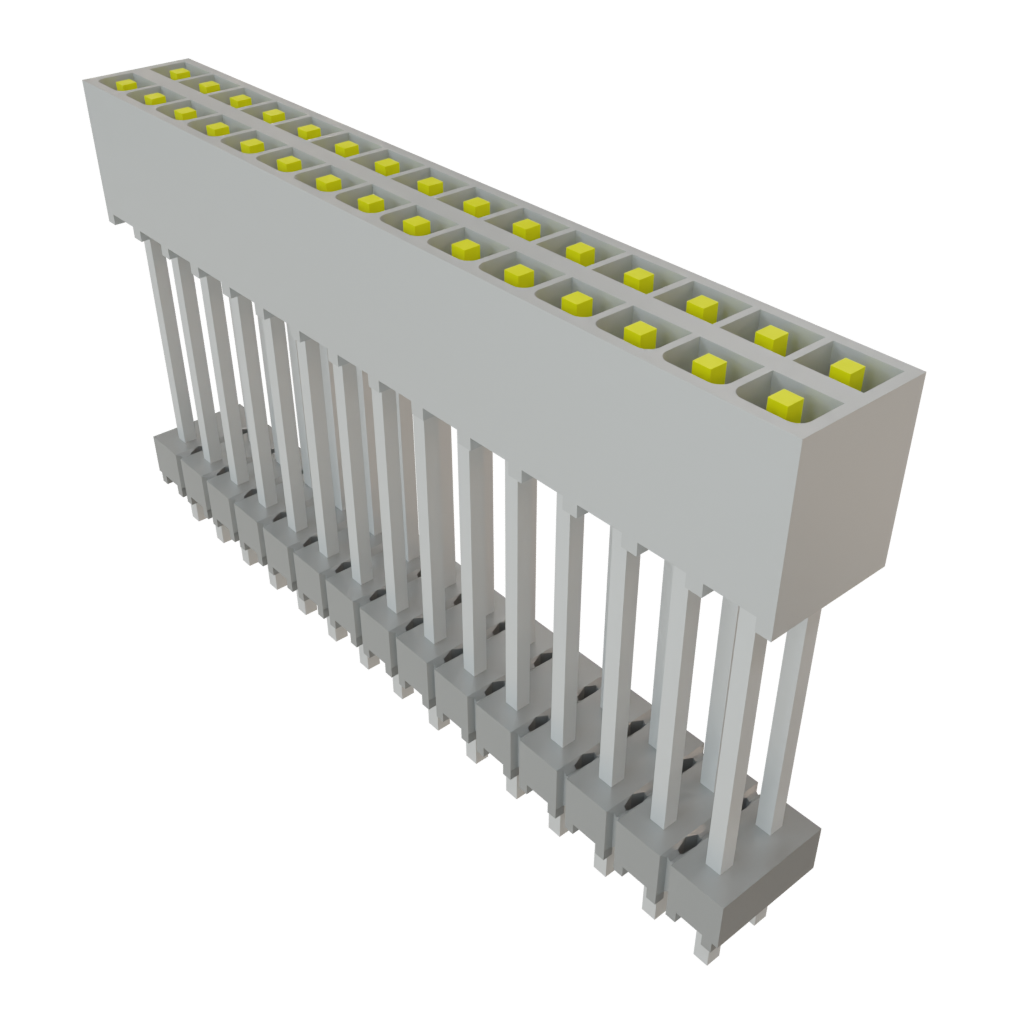

IPT1-115-07-L-D

Name: Samtec IPT1-115-07-L-D
Brand: Samtec
SKU: 200-IPT111507LD
Price: 3.95 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-IPT111507LD

Mfr. No:

IPT1-115-07-L-D

Mfr.:

Samtec

Description:

Power to the Board .100 Mini Mate Isolated Power Connector Terminal Strip

Datasheet:

IPT1-115-07-L-D Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec IPT1-115-07-L-D

In Stock: 126

Stock:: 126 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,95 €	3,95 €
	3,76 €	105,28 €
	3,58 €	200,48 €
	3,37 €	377,44 €
	3,11 €	1.567,44 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Pin (Male)
Current Rating:	5.9 A
Voltage Rating:	775 VAC, 1.095 kVDC
Number of Positions:	30 Position
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Pitch:	2.54 mm
Series:	IPT1
Packaging:	Tube
Tradename:	Mini Mate
Brand:	Samtec
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Product:	Headers
Row Spacing:	2.54 mm
Factory Pack Quantity:	14
Subcategory:	Power Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536699099
USHTS:: 8536694040
ECCN:: EAR99

Mini Mate® Isolated Power Connectors

Samtec Mini Mate® Isolated Power Connectors are 2.54mm pitch (.100") board-to-board power socket and terminal strips with individually shrouded contacts. The shrouded contacts provide electrical and mechanical protection. An optional locking clip also boosts the ruggedness of the connectors. Samtec Mini Mate double-row connectors come in vertical through-hole, surface-mount, or right-angle through-hole configurations. These power connectors also offer a current rating of 4.8A at 95°C.
