IPD1-16-D-K

Name: Samtec IPD1-16-D-K
Brand: Samtec
SKU: 200-IPD1-16-D-K
Price: 0.91 EUR
Availability: InStock

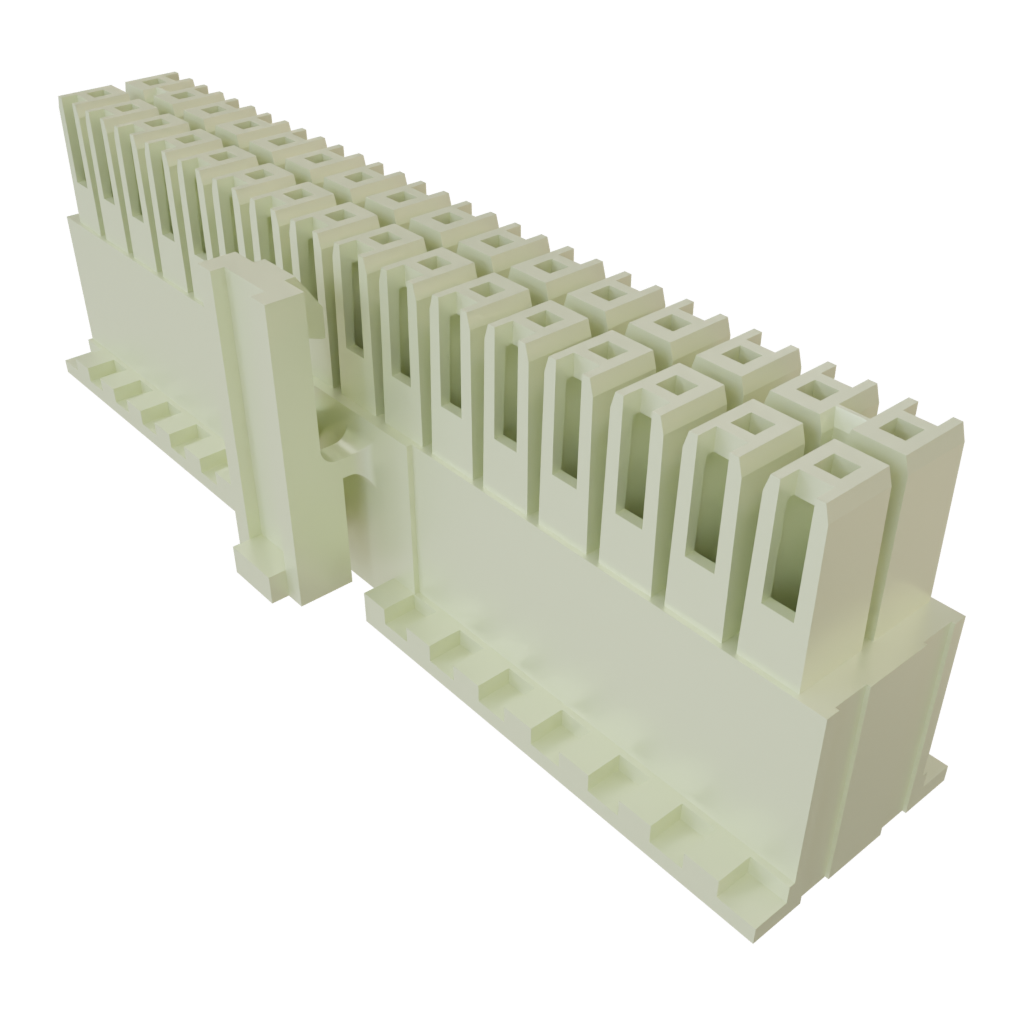

Images are for reference only
See Product Specifications

Mouser No:

200-IPD1-16-D-K

Mfr. No:

IPD1-16-D-K

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Mini Mate Discrete Wire Socket Housing

Datasheet:

IPD1-16-D-K Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec IPD1-16-D-K

In Stock: 1.588

Stock:: 1.588

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 1.000

Expected 6/3/2026
Factory Lead Time:: 1

Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,912 €	0,91 €
	0,869 €	43,45 €
	0,777 €	77,70 €
	0,74 €	370,00 €
	0,705 €	705,00 €
	0,703 €	1.406,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	32 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	IPD1
Tradename:	Mini Mate
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Gender:	Female
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1000
Subcategory:	Headers & Wire Housings
Unit Weight:	197,040 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

IPD1-16-D-K Datasheet (PDF)

Images


PCN

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

CNHTS:: 8547200000
USHTS:: 8538906000
JPHTS:: 853890000
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

Origin Classifications

Country of Origin:: United States
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Mini Mate .100" (2.54mm) Discrete Wire Solutions

Samtec Mini Mate .100" (2.54mm) Discrete Wire Solutions include a variety of housings and contacts to meet a broad range of design needs with current ratings of up to 3.3A. The discrete wire connectors from Samtec are available in cable-to-board, cable-to-cable, and cable-to-panel options. Rugged individually shrouded contacts provide reliability in harsh environments. The fully polarized single- and double-row systems of up to 50 pins also include metal or plastic latch options.
