IPBT-106-H2-T-D-K

Name: Samtec IPBT-106-H2-T-D-K
Brand: Samtec
SKU: 200-IPBT106H2TDK
Price: 1.78 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-IPBT106H2TDK

Mfr. No:

IPBT-106-H2-T-D-K

Mfr.:

Samtec

Description:

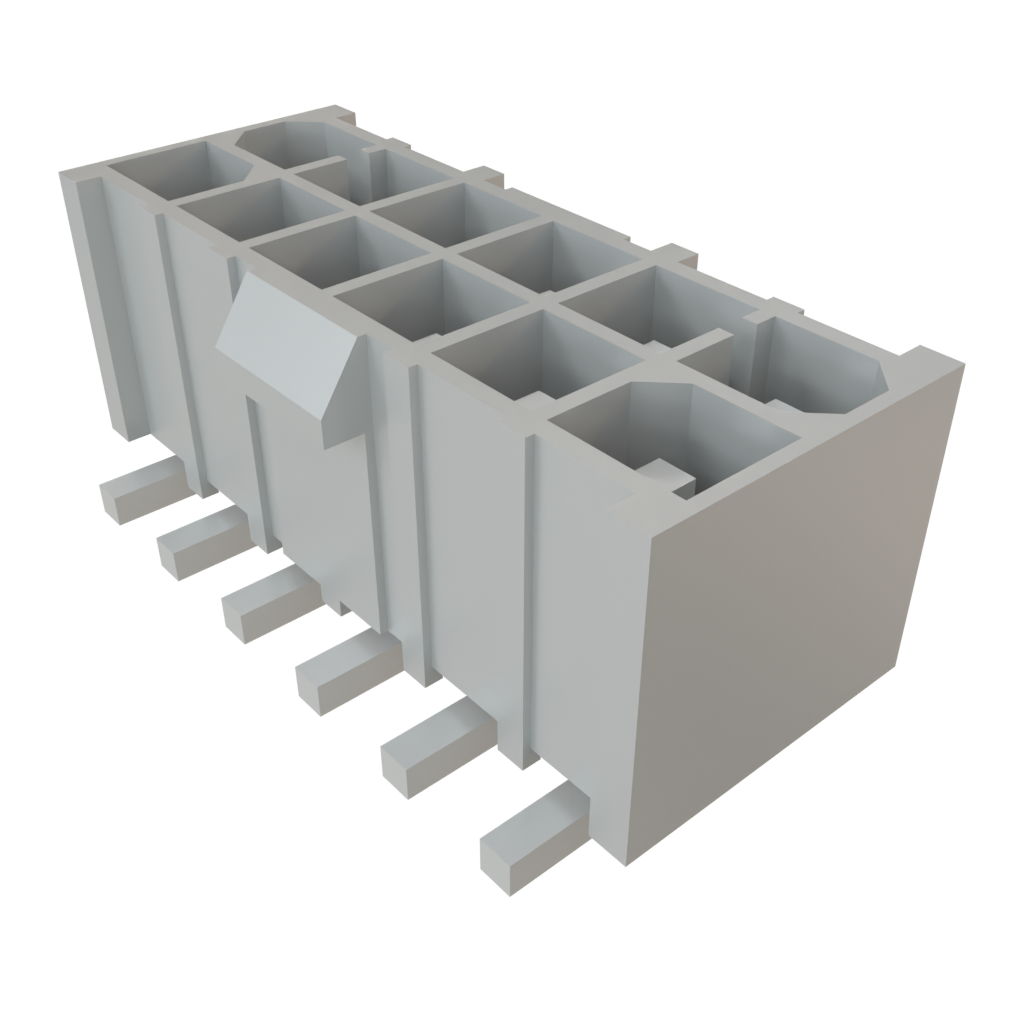

Power to the Board .165 Power Mate Isolated Power Terminal Header

Datasheet:

IPBT-106-H2-T-D-K Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec IPBT-106-H2-T-D-K

In Stock: 27

Stock:: 27

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 126

Expected 4/14/2026
Factory Lead Time:: 3

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,78 €	1,78 €
	1,38 €	144,90 €
	1,19 €	599,76 €
	1,13 €	1.139,04 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Pin (Male)
Current Rating:	10.3 A
Voltage Rating:	400 VAC, 565 VDC
Number of Positions:	12 Position
Mounting Style:	SMD/SMT
Termination Style:	Solder
Pitch:	4.19 mm
Packaging:	Tube
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Factory Pack Quantity:	21
Subcategory:	Power Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

4.19mm (0.165") Power Mate® Discrete Wire System

Samtec 4.19mm (0.165") Power Mate® Discrete Wire System features cables and connectors with individually shrouded contacts for reliability in harsh environments with up to 10.4A. This product lineup is available as components with tooling or as complete cable assemblies. The Power Mate discrete wire system is shrouded, polarized, and keyed and offers a 10.4A maximum current rating, 400V_AC / 566V_DC voltage rating, and 24AWG to 16AWG PVC or Teflon™ fluoropolymer cable. Additional features include plastic latches, single or double row, up to 30 pins, and mating terminal strips in a vertical or right-angle orientation. Ideal applications for the Samtec 4.19mm (0.165") Power Mate series are military, aerospace, submersibles, and other harsh environments.
