HTST-107-01-L-DV-P-TR

Name: Samtec HTST-107-01-L-DV-P-TR
Brand: Samtec
SKU: 200-HTST10701LDVPTR
Price: 3.36 EUR
Availability: InStock

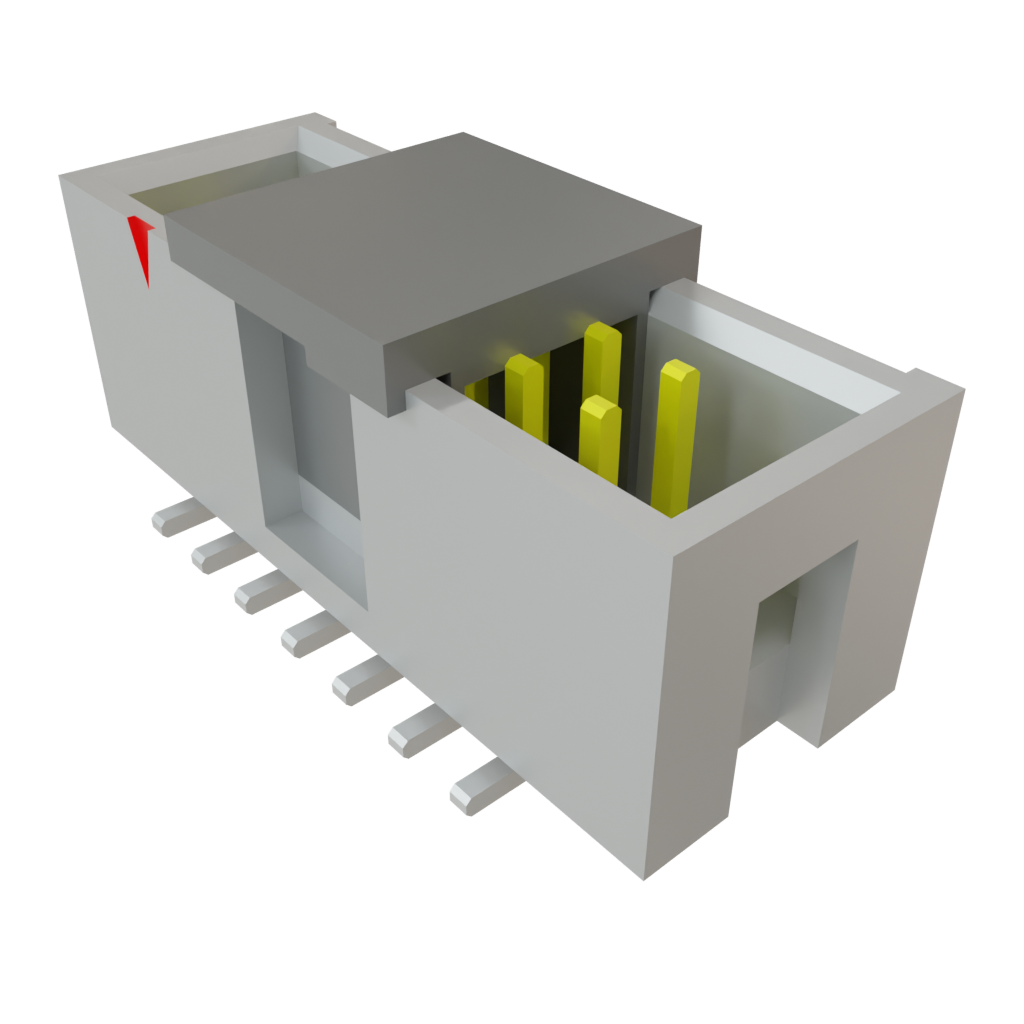

Images are for reference only
See Product Specifications

Mouser No:

200-HTST10701LDVPTR

Mfr. No:

HTST-107-01-L-DV-P-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 High-Temp Shrouded Terminal Strip

Datasheet:

HTST-107-01-L-DV-P-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 855

Stock:: 855

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 3.300

Expected 3/30/2026
Factory Lead Time:: 3

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,36 €	3,36 €
	2,74 €	137,00 €
	2,33 €	233,00 €
Full Reel (Order in multiples of 150)
	2,33 €	349,50 €
	2,07 €	1.863,00 €
	2,04 €	3.978,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	14 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	6.35 mm (0.25 in)
Series:	HTST
Tradename:	Flex Stack
Application:	Board-to-Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	3.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	150
Subcategory:	Headers & Wire Housings
Unit Weight:	1,151 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
