HTSS-115-01-L-D

Name: Samtec HTSS-115-01-L-D
Brand: Samtec
SKU: 200-HTSS11501LD
Price: 4.33 EUR
Availability: InStock

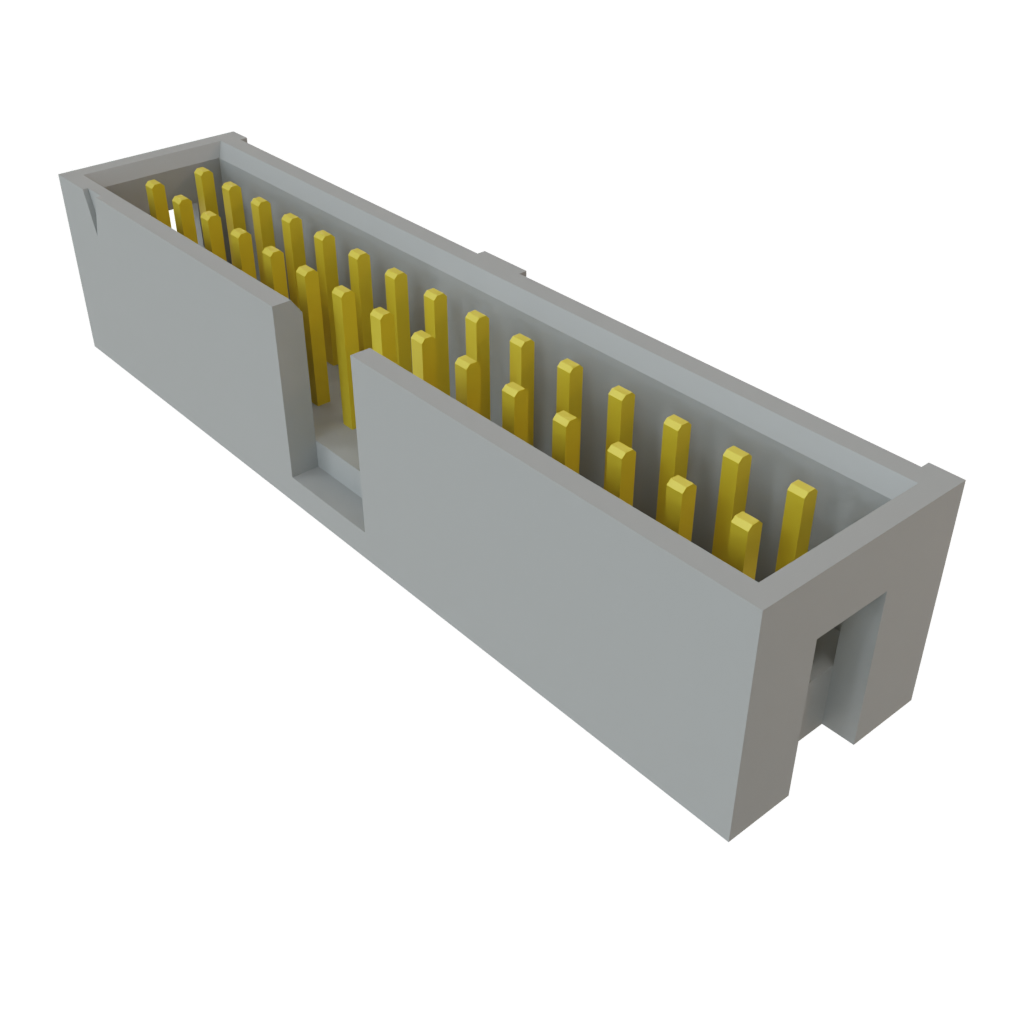

Images are for reference only
See Product Specifications

Mouser No:

200-HTSS11501LD

Mfr. No:

HTSS-115-01-L-D

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 High-Temp Shrouded Terminal Strip

Datasheet:

HTSS-115-01-L-D Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	30 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	HTSS
Tradename:	Flex Stack
Application:	Board-to-Board, Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Material:	Polyester (PCT)
Insulation Resistance:	5 GOhms
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

USHTS:: 8536694040
ECCN:: EAR99

Origin Classifications

Country of Origin:: United States
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

FEATURED PRODUCTS

SAMTEC

UXV35 Standard Connectors

Designed to improve the success rate of integrating components from diverse open-system vendors.

Learn More

Discrete Wire Components & Cable Assemblies

Features pitch availability from 1mm to 4.19mm and wire ranges from 30AWG to 16AWG.

Learn More

Artificial Intelligence Connectivity Solutions

Extensive portfolio of high-performance products that support next-generation system designs.

Learn More

1.27mm Tiger Eye™ Discrete Wire System

Includes cables, plugs, sockets, and terminal strips designed for micro rugged applications.

Learn More

SSW Tiger Buy™ Socket Strips w/ PCB Tails

Features a 0.100" pitch, 0.025" square post sockets, and 4.7A current rating per pin.

Learn More

In Stock: 10

Stock:: 10 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,33 €	4,33 €
	3,54 €	177,00 €
	3,41 €	341,00 €
	3,30 €	1.650,00 €
	2,81 €	2.810,00 €
	2,71 €	5.420,00 €
5.000	Quote
