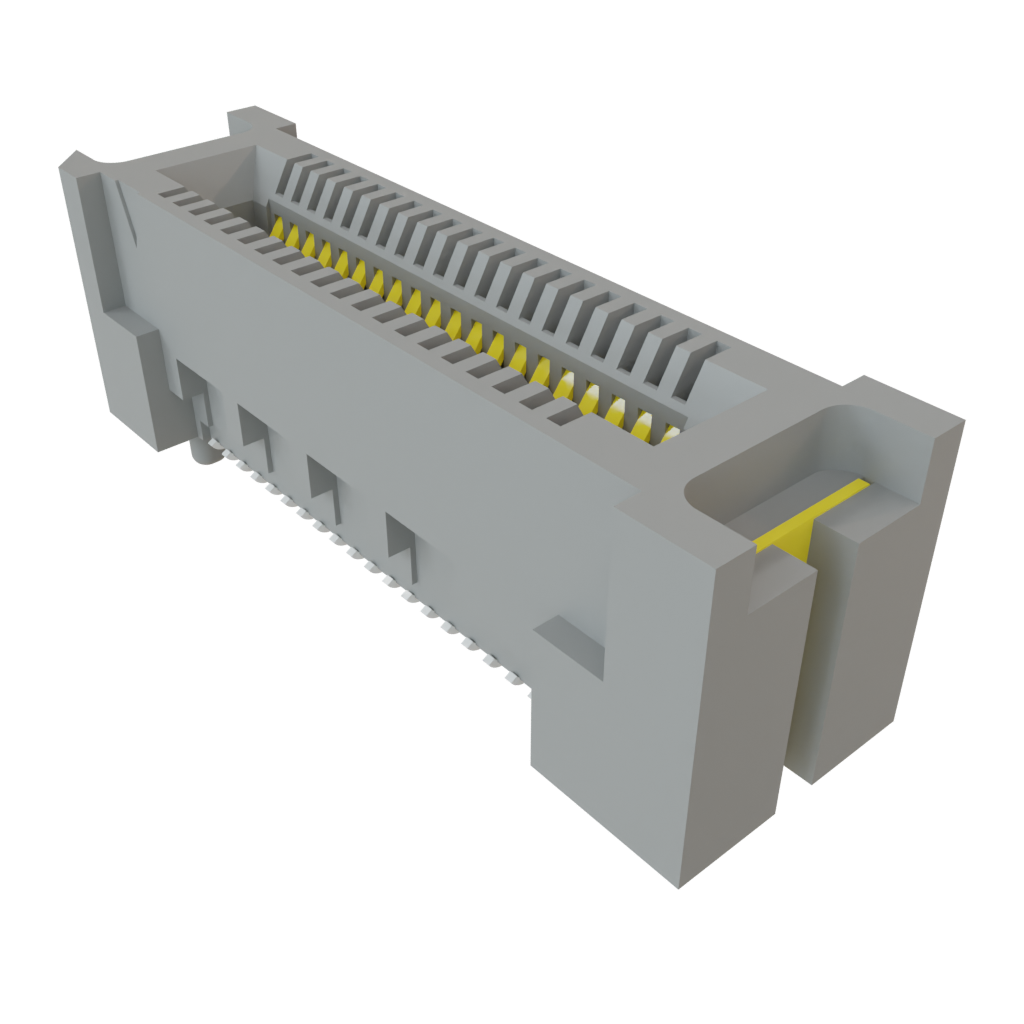

HTEC8-120-01-S-DV-A-WT

Name: Samtec HTEC8-120-01-S-DV-A-WT
Brand: Samtec
SKU: 200-HTEC812001SDVAWT
Price: 4.54 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HTEC812001SDVAWT

Mfr. No:

HTEC8-120-01-S-DV-A-WT

Mfr.:

Samtec

Description:

Headers & Wire Housings 0.80 mm Rugged High-Speed Edge Card Connectors

Datasheet:

HTEC8-120-01-S-DV-A-WT Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HTEC8-120-01-S-DV-A-WT

In Stock: 42

Stock:: 42 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,54 €	4,54 €
	4,10 €	102,50 €
	3,82 €	191,00 €
	3,55 €	1.789,20 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Connectors
Type:	Socket
Number of Positions:	40 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Contact Gender:	Socket (Female)
Contact Plating:	Tin
Series:	HTEC8
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tray
Brand:	Samtec
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	2.8 A
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	84
Subcategory:	Headers & Wire Housings
Voltage Rating:	240 VAC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HTEC8-120-01-S-DV-A-WT Datasheet (PDF)

Images


Specification Sheets

Technical Resources

TARIC:: 8536693000
CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

HTEC8 0.08mm Rugged High-Speed Edge Card Sockets

Samtec HTEC8 0.08mm (.0315") Rugged High-Speed Edge Card Sockets are designed to allow more lead-in for the mating PCB. The tips of the HTEC8 contacts are completely hidden behind the chamfered entry in the plastic insulator body, which is especially helpful when mating with lower-cost blunt-edge PCBs vs. PCBs with chamfered edges. This design is also helpful when the manufacturing processes present less-than-ideal assembly or PCB mating circumstances. The HTEC8 connectors are available with up to 200 positions and optional weld tabs for additional mechanical strength on the board. Samtec HTEC8 0.08mm (.0315") Rugged High-Speed Edge Card Sockets accept 1.60mm thick PCBs and are PCI Express^® (PCIe) compatible, RoHS compliant, lead-free solderable, and UL recognized.
