HSEC8-140-01-L-PV-2-2

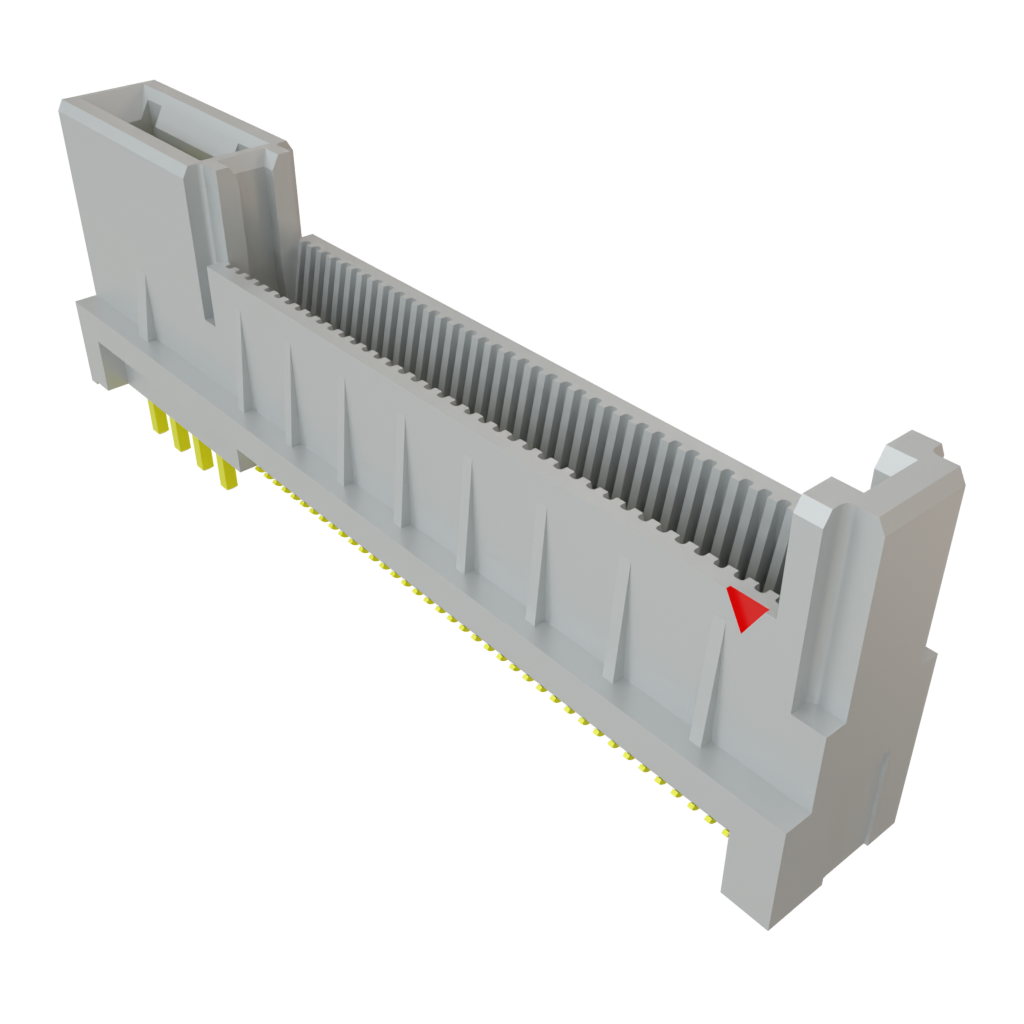

Name: Samtec HSEC8-140-01-L-PV-2-2
Brand: Samtec
SKU: 200-HSEC814001LPV22
Price: 9.67 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-HSEC814001LPV22

Mfr. No:

HSEC8-140-01-L-PV-2-2

Mfr.:

Samtec

Description:

Standard Card Edge Connectors 0.80 mm High-Speed Power/Signal Combo Edge Card Connector

Datasheet:

HSEC8-140-01-L-PV-2-2 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HSEC8-140-01-L-PV-2-2

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 9 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,67 €	9,67 €
	8,94 €	89,40 €
	8,45 €	211,25 €
	8,14 €	455,84 €
	7,51 €	841,12 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Headers
Number of Positions:	42 Position
Mounting Style:	Mounting Peg
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	HSEC8
Brand:	Samtec
Contact Arrangement:	Power, Signal
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	3.2 A, 27.5 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Tray
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	56
Subcategory:	Card Edge Connectors
Tradename:	Edge Rate
Unit Weight:	1,312 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

HSEC8-PV Vertical Edge Rate Card Socket

Samtec HSEC8-PV Vertical Power/Signal Combo Edge Rate^® Card Socket features a 28Gbps high-speed channel. The HSEC-PV comes with the option of one or two banks of power pins; each bank includes two power pins and is rated up to 60 Amps. The HSEC8-PV socket offers black liquid crystal polymer insulation and a -55°C to +125°C operating temperature range. Samtec HSEC8-PV Vertical Power/Signal Combo Edge Rate Card Socket is ideal for 50Ω applications and certain 75Ω applications with a mating card thickness of 1.60mm (0.062").
