HSEC8-120-01-S-RA-TR

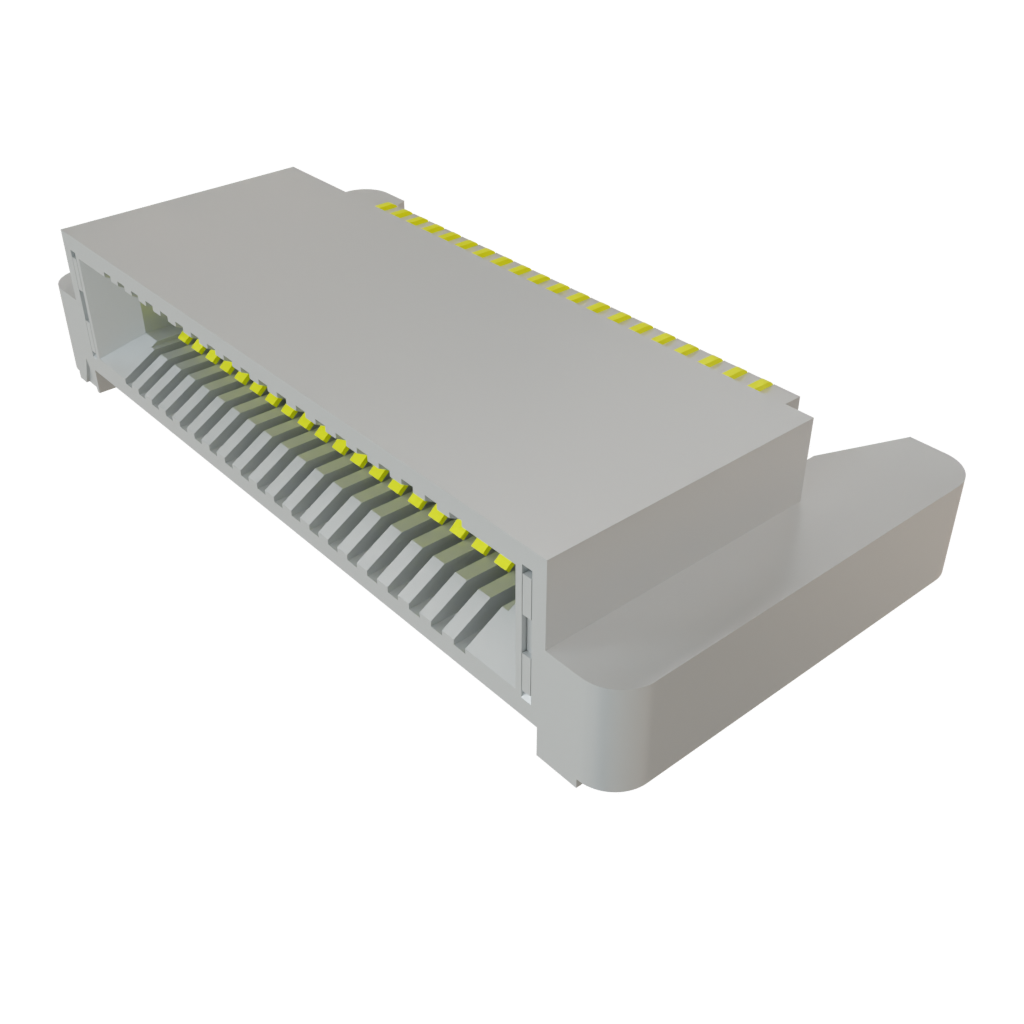

Name: Samtec HSEC8-120-01-S-RA-TR
Brand: Samtec
SKU: 200-HSEC812001SRATR
Price: 7.39 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HSEC812001SRATR

Mfr. No:

HSEC8-120-01-S-RA-TR

Mfr.:

Samtec

Description:

Standard Card Edge Connectors 0.80 mm High-Speed Power/Signal Combo Edge Card Connector

Datasheet:

HSEC8-120-01-S-RA-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HSEC8-120-01-S-RA-TR

In Stock: 11

Stock:: 11

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 250

Expected 10/13/2026
Factory Lead Time:: 14

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	7,39 €	7,39 €
	6,83 €	68,30 €
	6,46 €	161,50 €
	6,23 €	311,50 €
	4,83 €	483,00 €
Full Reel (Order in multiples of 250)
	4,83 €	1.207,50 €
	4,59 €	2.295,00 €

Alternative Packaging

Mfr. Part No.:

HSEC8-120-01-S-RA

Packaging:

Tray

Availability:

In Stock

Price:

6,15 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Sockets
Number of Positions:	40 Position
Pitch:	0.8 mm
Board Thickness:	1.6 mm
Mounting Style:	SMD/SMT
Mounting Angle:	Right Angle
Contact Plating:	Gold
Series:	HSEC8
Brand:	Samtec
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	2.8 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Reel
Packaging:	Cut Tape
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	250
Subcategory:	Card Edge Connectors
Termination Style:	SMD/SMT
Tradename:	Edge Rate
Voltage Rating:	240 VAC
