HSEC8-110-01-S-RA-TR

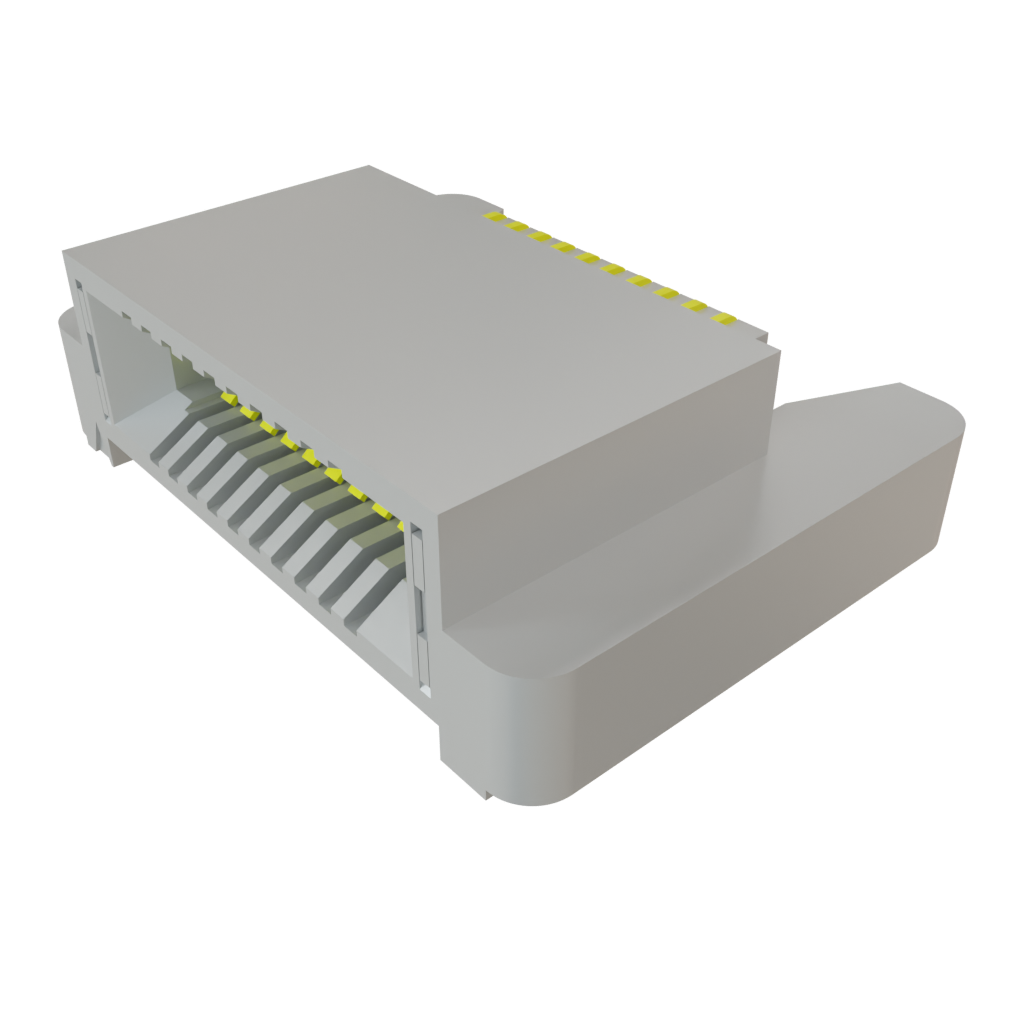

Name: Samtec HSEC8-110-01-S-RA-TR
Brand: Samtec
SKU: 200-HSEC811001SRATR
Price: 6.3 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HSEC811001SRATR

Mfr. No:

HSEC8-110-01-S-RA-TR

Mfr.:

Samtec

Description:

Standard Card Edge Connectors 0.80 mm High-Speed Power/Signal Combo Edge Card Connector

Datasheet:

HSEC8-110-01-S-RA-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HSEC8-110-01-S-RA-TR

In Stock: 325

Stock:: 325 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	6,30 €	6,30 €
	5,81 €	58,10 €
	5,50 €	137,50 €
	5,30 €	265,00 €
	4,12 €	412,00 €
Full Reel (Order in multiples of 325)
	4,10 €	1.332,50 €
	3,90 €	2.535,00 €

Alternative Packaging

Mfr. Part No.:

HSEC8-110-01-S-RA

Packaging:

Tray

Availability:

In Stock

Price:

5,23 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Sockets
Number of Positions:	20 Position
Pitch:	0.8 mm
Board Thickness:	1.6 mm
Mounting Style:	SMD/SMT
Mounting Angle:	Right Angle
Contact Plating:	Gold
Series:	HSEC8
Brand:	Samtec
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	2.8 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Reel
Packaging:	Cut Tape
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	325
Subcategory:	Card Edge Connectors
Termination Style:	SMD/SMT
Tradename:	Edge Rate
Voltage Rating:	240 VAC
